9
Structure

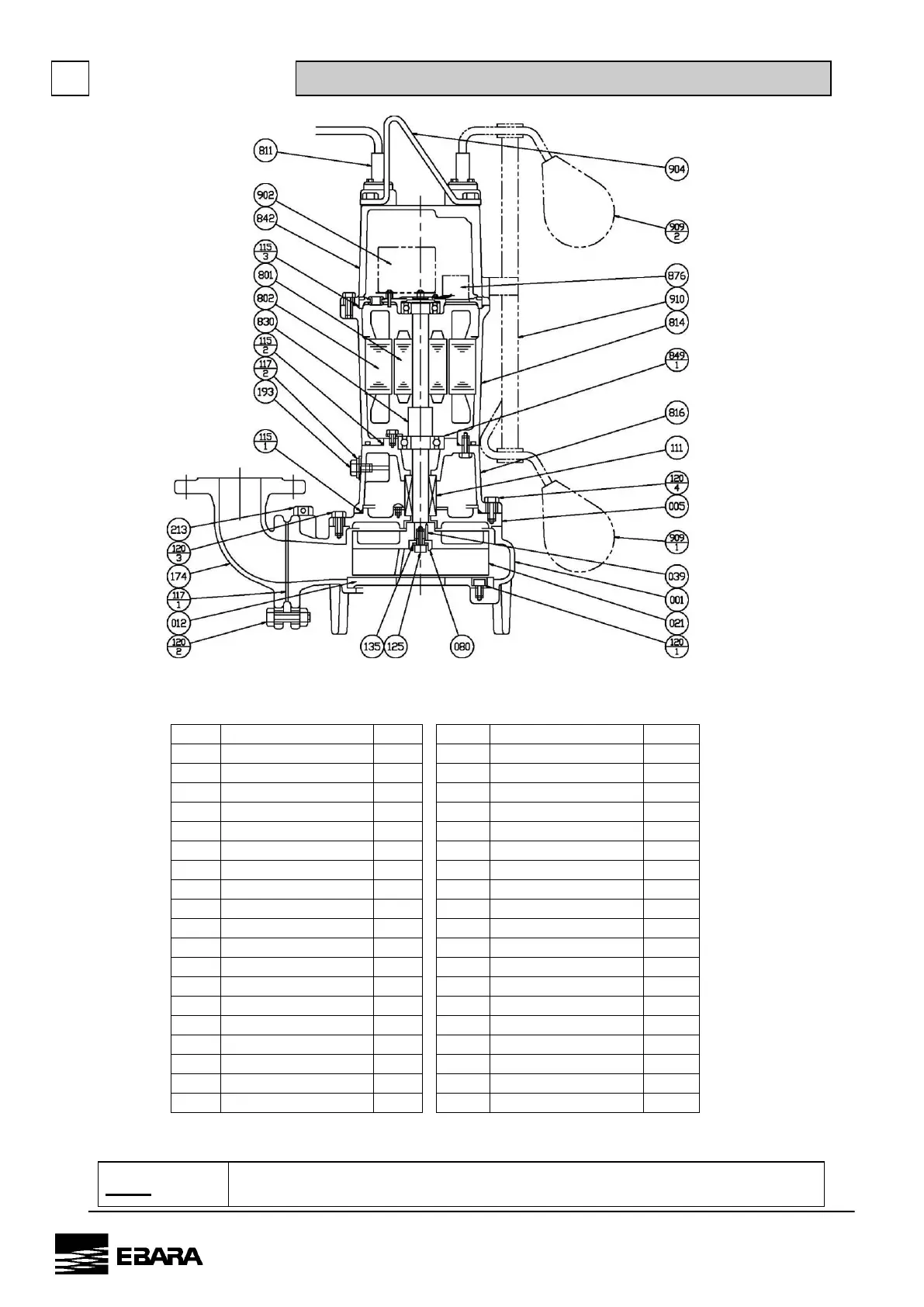

1. Cross sectional view
* For automatic alternate operation model only
No.
Parts name
Quantity
No.
Parts name
Quantity
001
CASING
1
174
DISCHARGE ELBOW
1
005
INTERMEDIATE CASIN
1
193
OIL PLUG
1
012
SUCTION COVER
1
200
LIFTING HANGER
1
021
IMPELLER
1
213
AIR VENT VALVE
1
039
KEY
1
801
ROTOR
1
080
BUSHING
1
802
STATOR
1
111
MECHANICAL SEAL
1 SET
811
SUBMERSIBLE CABLE
1
115-1
O-RING
1
814
MOTOR FRAME
1
115-2
O-RING
1
816
BRACKET
1
115-3
O-RING
1
817
BRACKET
1
117-1
GASKET
1
830
SHAFT
1
117-2
SEAL WATER
1
849-1
BALL BEARING
1
120-1
BOLT
3 or 4
849-2
BALL BEARING
1
120-2
BOLT
4
876
MOTOR PROTECTOR
1
120-3
BOLT
4 or 8
*902
CONTROL UNIT
1
120-4
BOLT
4
*909-1
FLOAT SWITCH
1
120-5
BOLT
2
*909-2
FLOAT SWITCH
1
125
BOLT
1
*910
FLOAT SUPPORT
1
135
WASHER
1
・Accessories
Ground nameplate············· 1 sheet
Note
Drawings indicating the materials of individual parts are available from EBARA
CORP.
