Operating instructions
D2D160-BE02-14
Translation of the original operating instructions
3. TECHNICAL DATA

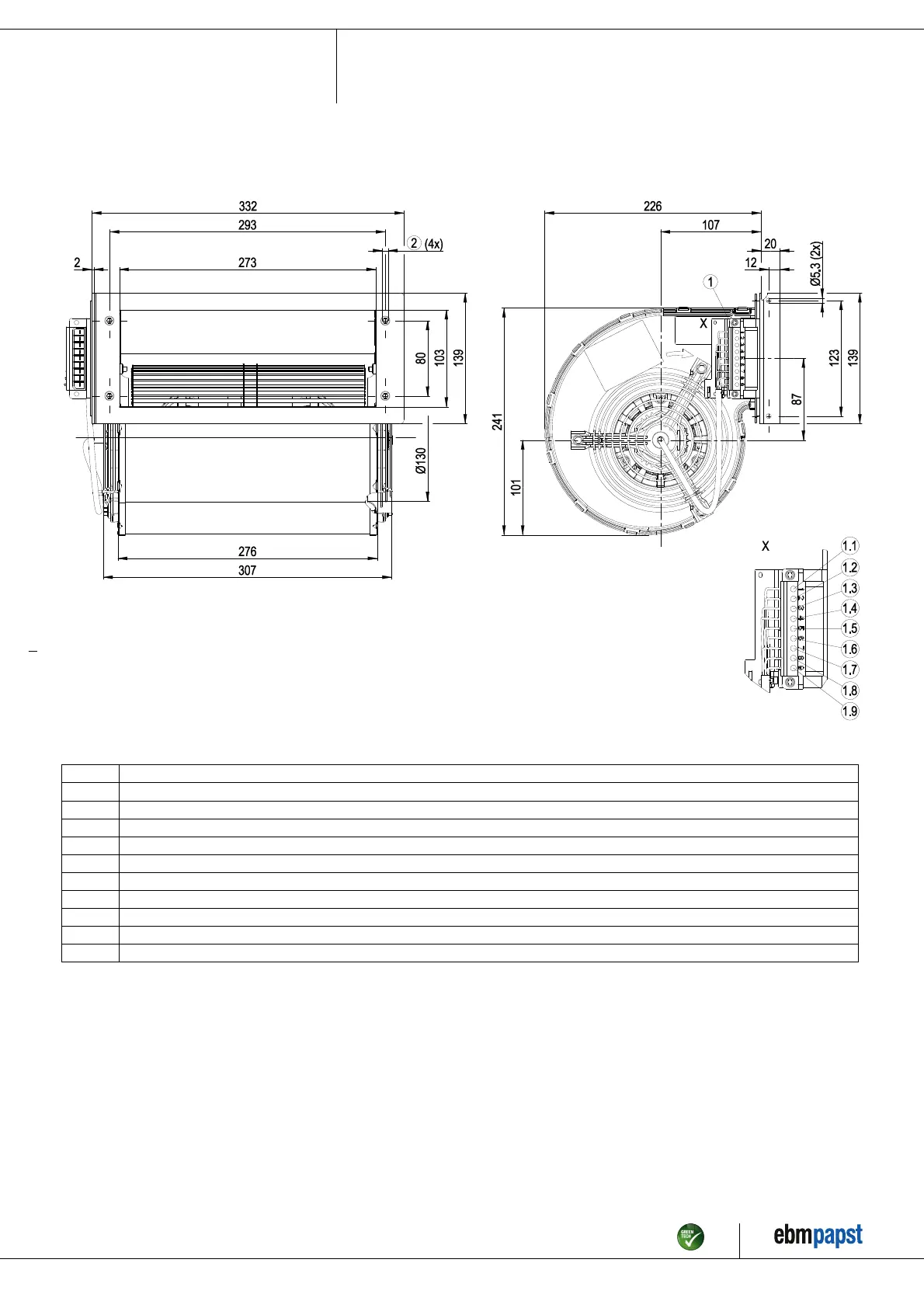

3.1 Product drawing
All dimensions in mm.
1 Cable PFA AWG20, header Weidmüller STV S 9 SS and 9x crimped splices
1.1 black
1.2 blue
1.3 brown
1.4 gray
1.5 green/yellow
1.6 gray
1.7 green
1.8 white
1.9 yellow
2 Insert nut M6
