ebm-papst D2D160-BE02-14 - Connection Diagram

Operating instructions
D2D160-BE02-14
Translation of the original operating instructions

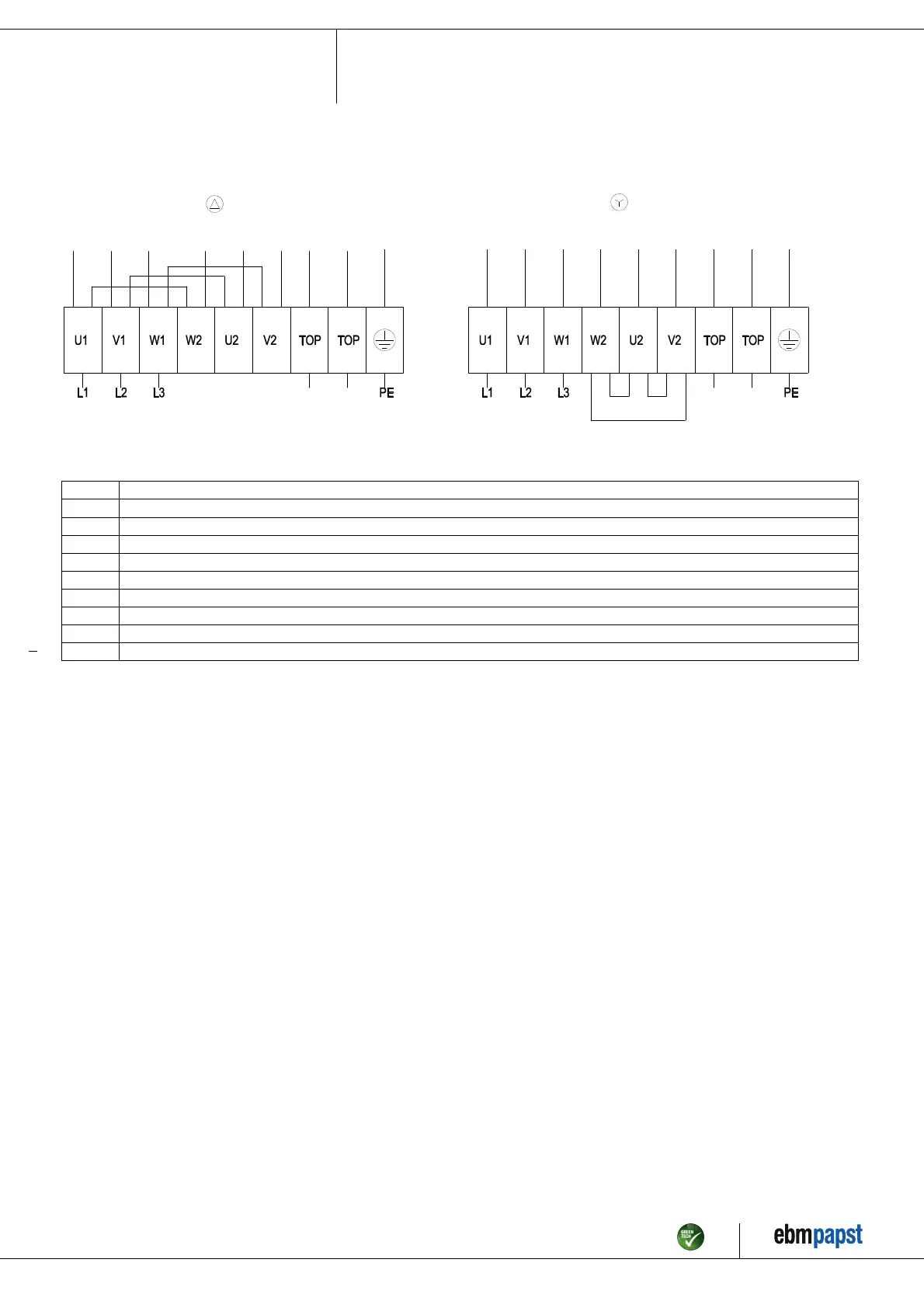

4.4 Connection diagram
Δ Delta connection
Y Star connection
L1 = U1 = black
L2 = V1 = blue
L3 = W1 = brown
W2 yellow
U2 green
V2 white
TOP 2x gray
PE green/yellow
Item no. 12477-5-9970 · ENU · Change 89188 · Approved 2016-04-18 · Page 7 / 9
