March 2013 54 IPV58

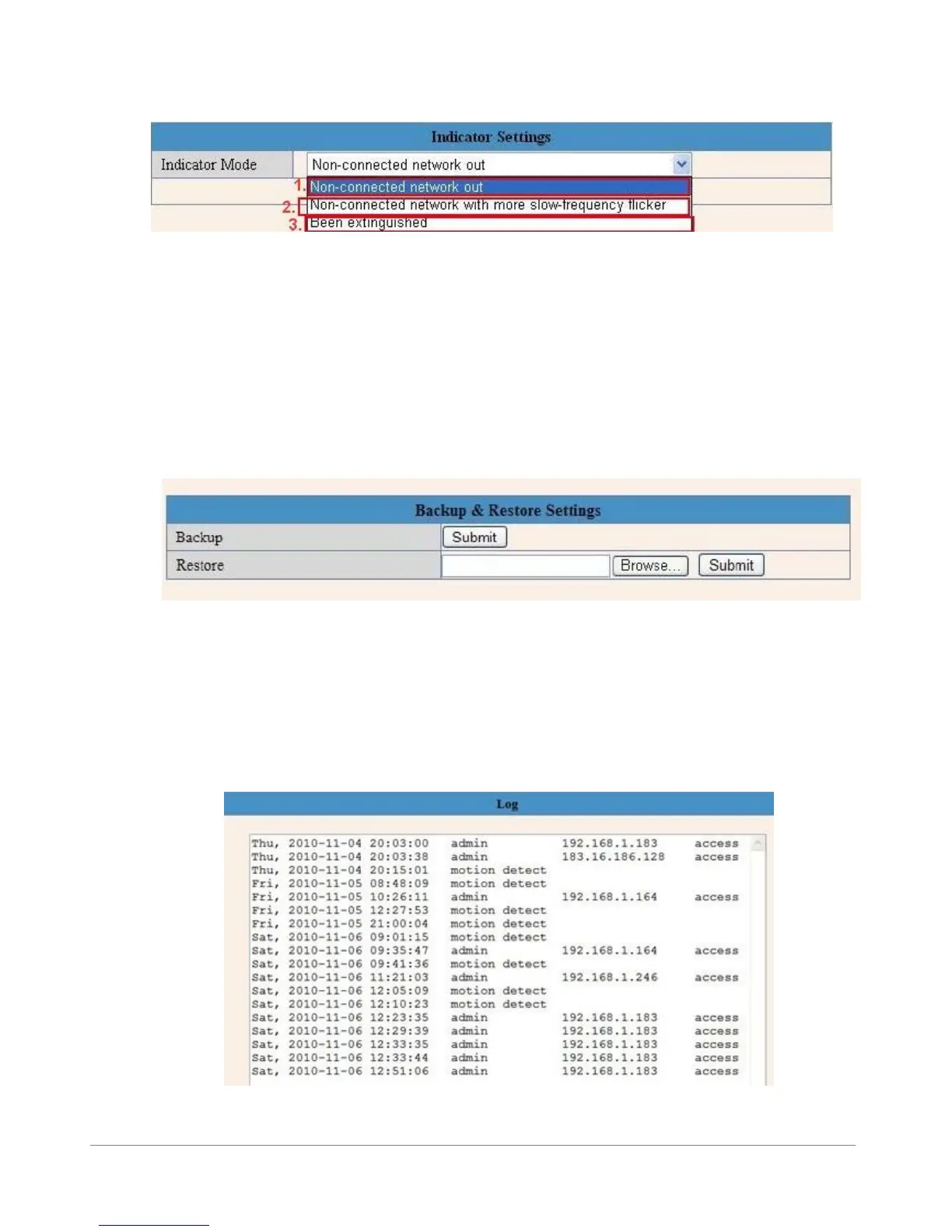

3.7 Indicator Settings
Figure 8.7
Set the pilot lamp mode, to one of the following three options:
(1) Non-connected network out: Flicker while connected to the internet and turn off when disconnected.
(2) Non-connected network with more slow-frequency flicker: Flicker while connect to the internet
and more slower when disconnected.
(3) Extinguished: Stay OFF.
3.8 Backup & Restore
Figure 8.8
1）Backup: Backup IP Camera all the Parameter, if you want to save all the current settings that you have
set already, you can click Submit, then all the parameters you set will store as a parameters bin file.
2）Restore: Restore IP Camera all the Parameter, if you want to change the camera’s settings to a certain
status which has a backup, click Browse to load the bin file, then Submit it.
Log
Figure 8.9
