8.0 USER INTERFACE
8.1 Touch Screen Display
The user interface consists of the Touch Screen Display located on the front panel of the analyzer enclosure. All
input/output data, information, alarms and fault conditions are shown on the display while all commands and

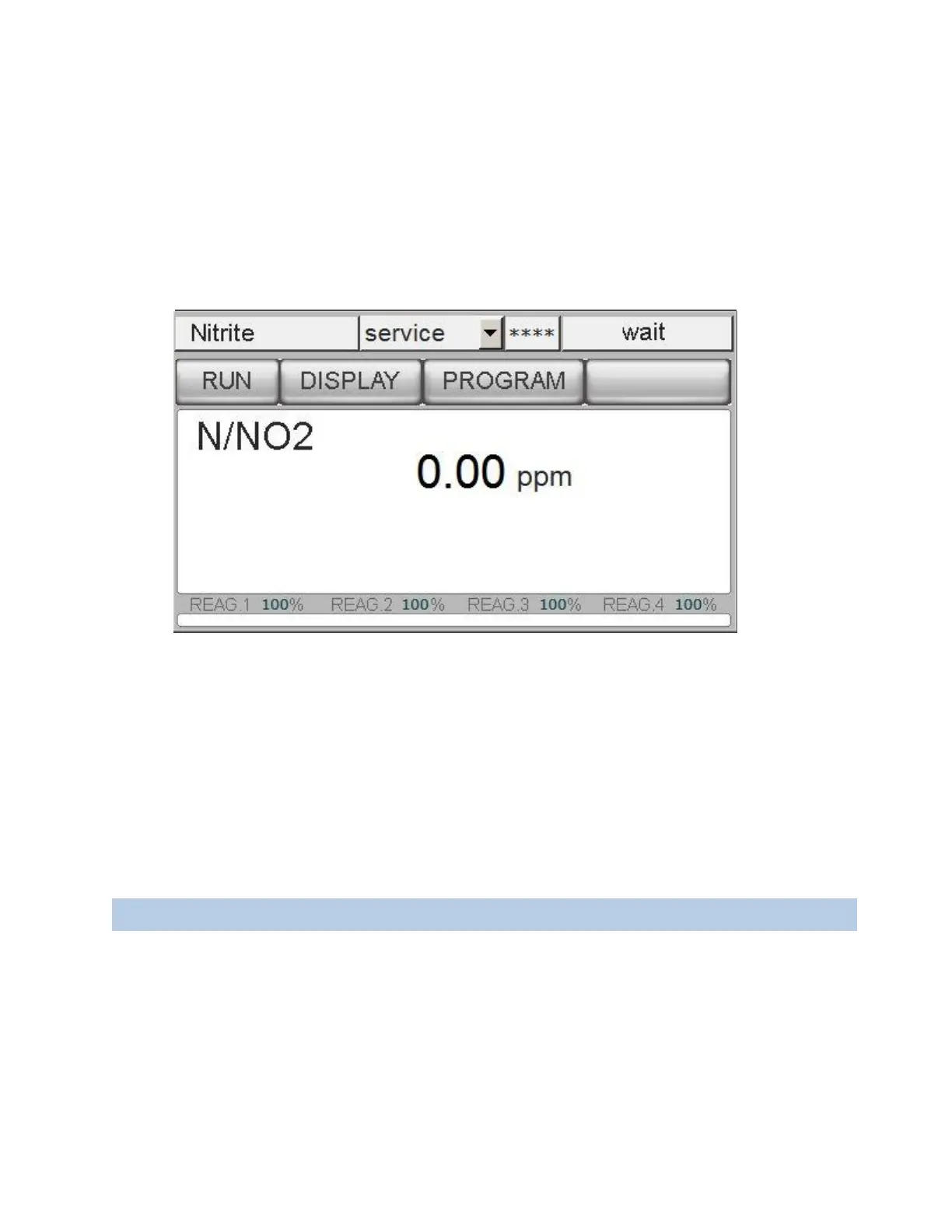

settings may be transferred to the analyzer simply pressing the touch screen. (An example of a typical screen)
8.2 Passwords (****)
Access to the various menus is password protected. There are three levels of security as described in the
table below.
First level password (service):
1111
Second level password (admin.):
6699
No password access
First level password access
Second level password access
Main menu
Display menu – Manual step
Program menu – Analysis cycle
Display menu – Display process
values
Program menu – Calibration menu
Program menu – Extra cycle
Program menu - Settings
Service Menu
Help
