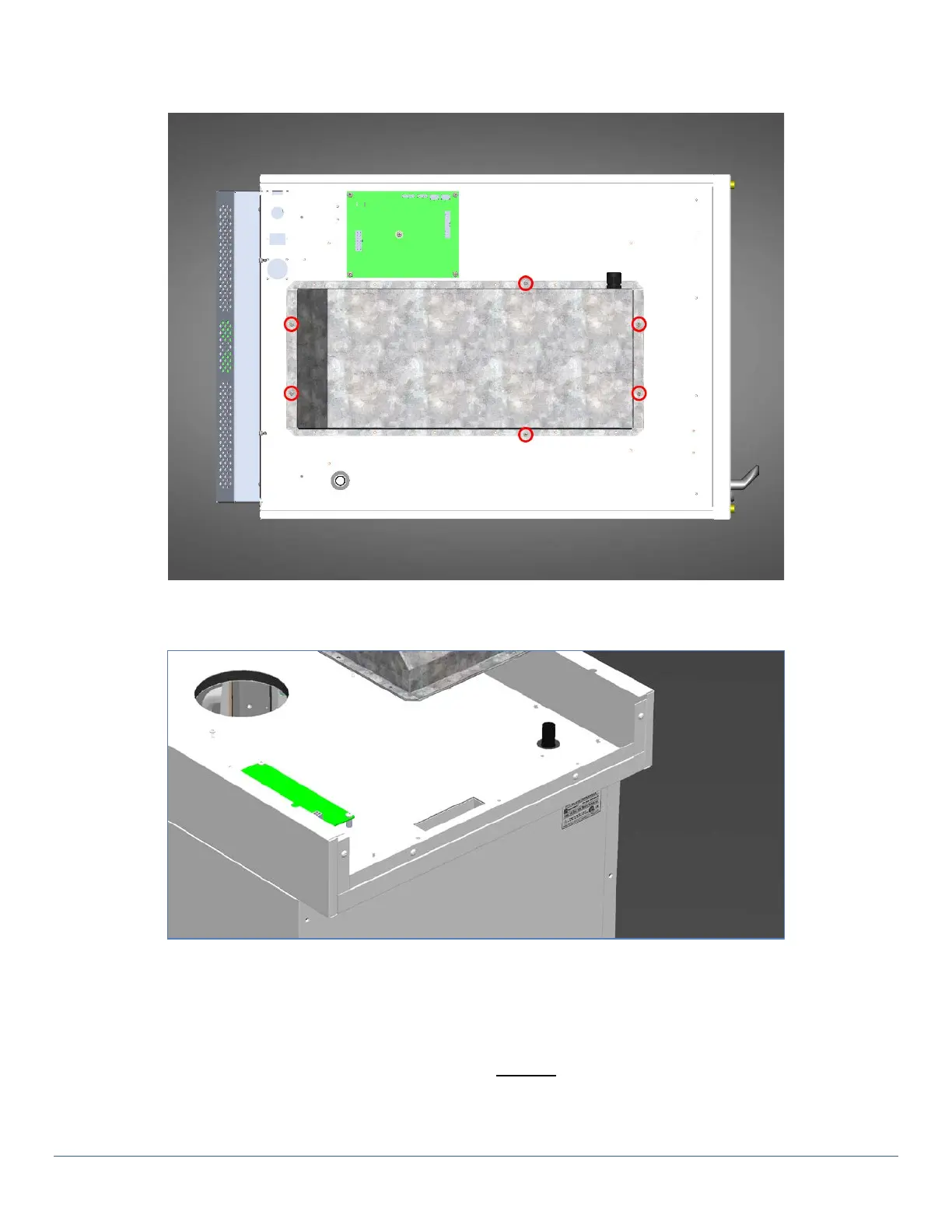

5) Remove the 6 mounting screws that secure the heater to the top and lift out the heater module. 4 long

screws on the sides and front. 2 short screws on the rear.

6) Place the replacement heater into place, making sure the output plenum fits down inside the back vent

plenum.

7) Replace the 6 mounting screws that secure the heater to the top panel. Making sure the 2 short screws

are in the back.

8) Reconnect the heater cable to the Power board making sure the orientation is correct and the release

lock latches into place.

9) Replace the top cover and the fastening hardware BEFORE connecting the power cord to the power

supply.

10) Reconnect the power plug to the power source.
