SD Series Dry Cabinets Setup and Operation Manual | A55-7379-00 Rev: 2.0.0 Page 21

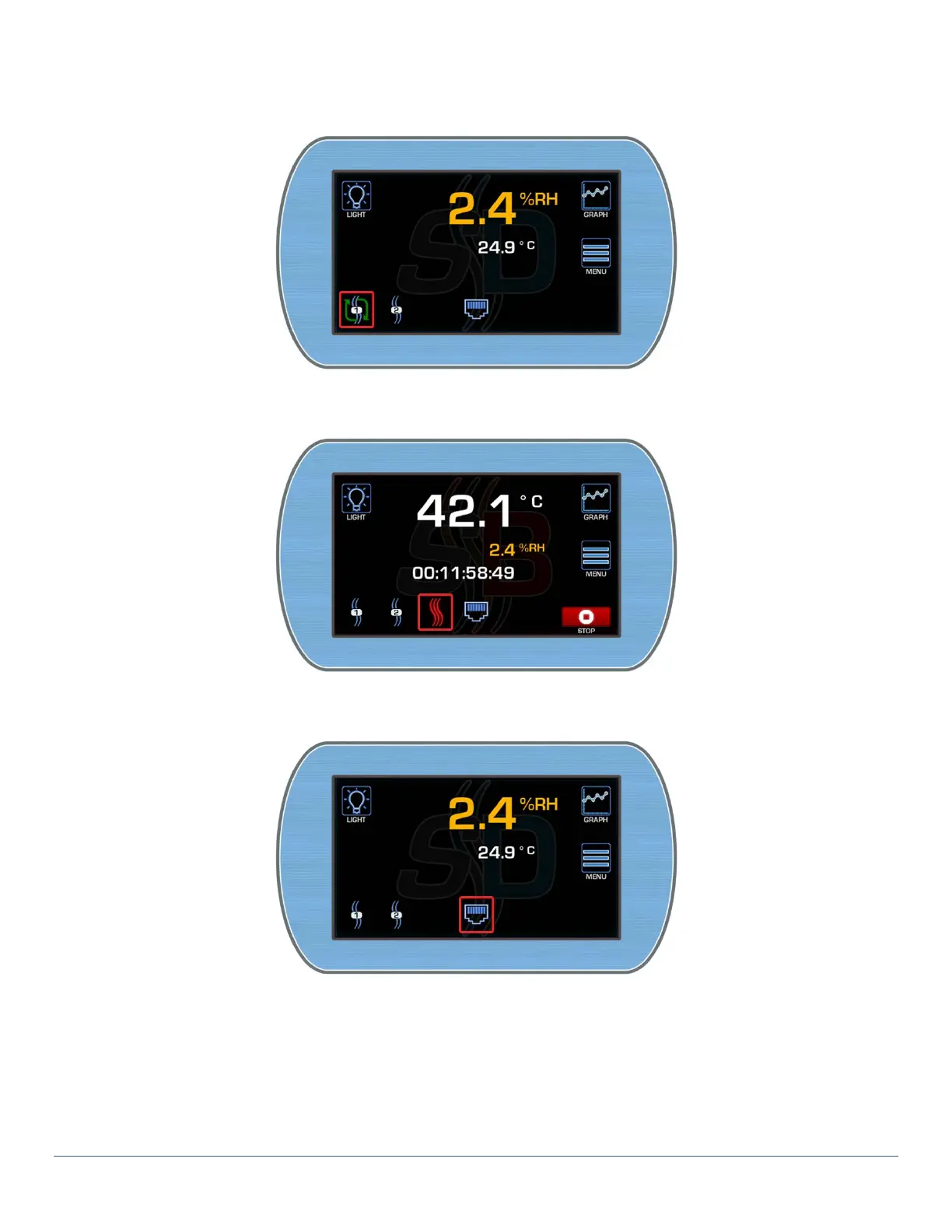

Regen symbol
Animated to indicate the Dryer Module is being regenerated. Static to indicate it needs to be regenerated and
is waiting for the other to complete.
Bake Symbol
Animated to indicate a timed SmartBAKE™ cycle is in progress.
Network Symbol
Indicates the SmartDRY™ Cabinet is connected to a network.
