ASSEMBLY GT-225
18 X7732273904
© 04/21 ECHO Incorporated
ASSEMBLY
Shield Installation
Cut-off knife on debris shield has sharp edges. Avoid contact
when installing or removing line head.
Wear Gloves or personal injury may result:
◆ Cut-off knife is sharp.
◆ Gear case and surrounding area may be hot.

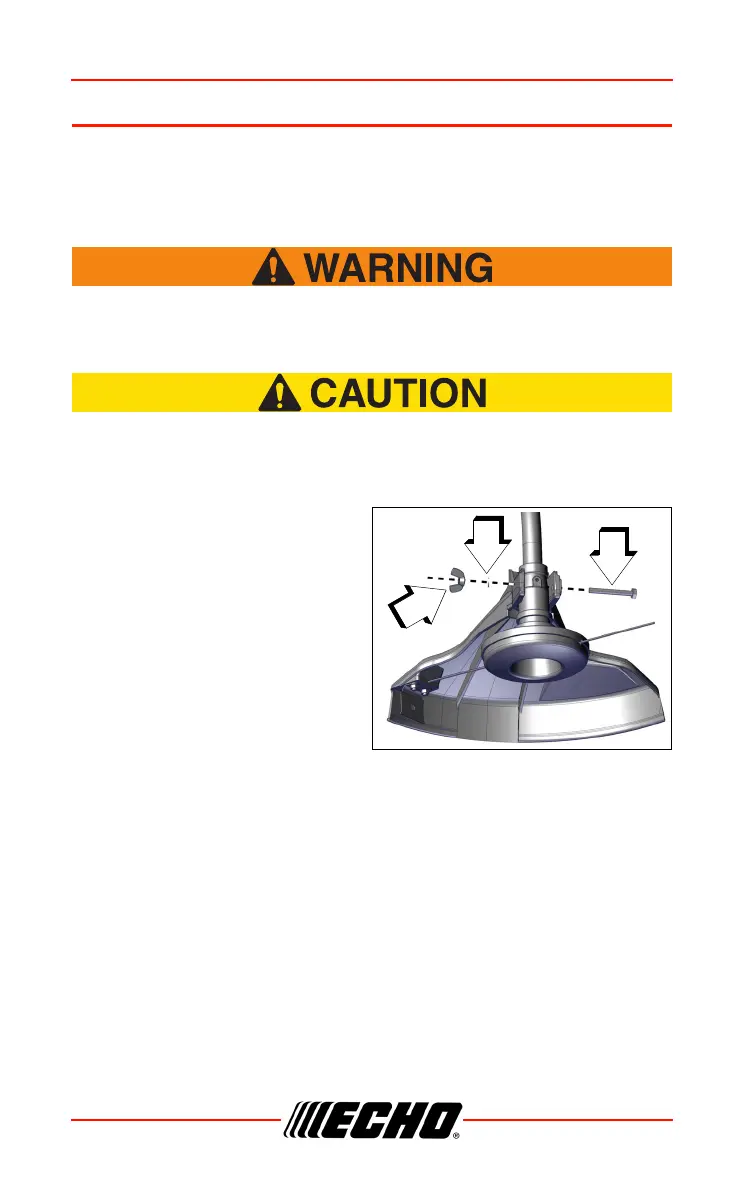

1. Remove wing nut (A), washer
(B), and bolt (C).
2. Snap the shield over the
bearing housing.
3. Install bolt (C), washer (B), and
wing nut (A).
Parts Required: Shield Assembly
A
B
C
