GT-225 ASSEMBLY
X7732273904 19
© 04/21 ECHO Incorporated

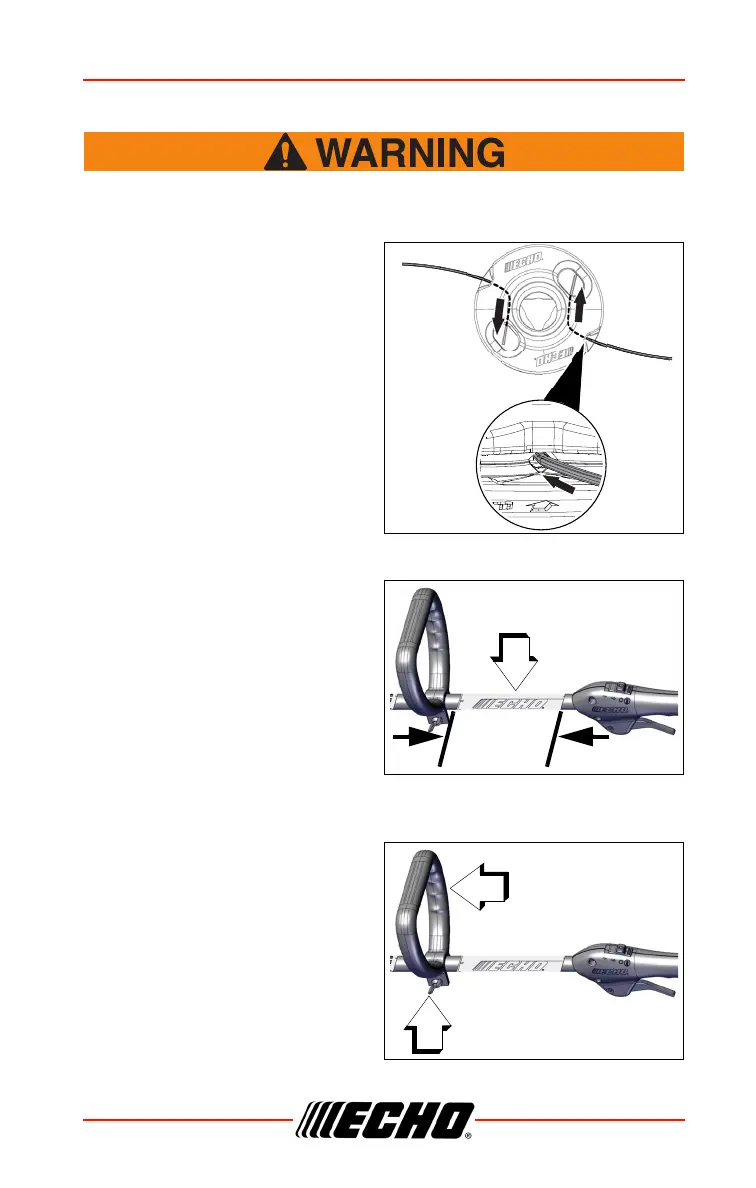

Nylon Line Installation
Never use wire or wire-rope that can break off and become a
dangerous “projectile”. Serious injury can occur.
1. Shut engine OFF. Lay unit on
the ground with head assembly
up.
2. Insert one piece of trimmer line
through eyelet (A) on each side
of head. Route line as shown.
3. Remove old nylon line in
direction shown.
Support Handle
Note: Label (A) shows
minimum spacing for
Support Handle
location.
Note: Support Handle is pre-
installed. Re-
positioning and
tightening is all that is
required.
1. Position Support Handle (A) in
comfortable operating position
and tighten wing nut (B). The
cutting attachment should be
5 cm to 7.5 cm (2 in. to 3 in.)
above the ground and as level
as possible.
To Next Page
