GT-225 MAINTENANCE
X7732273904 37
© 04/21 ECHO Incorporated
Lubrication
Level 1.

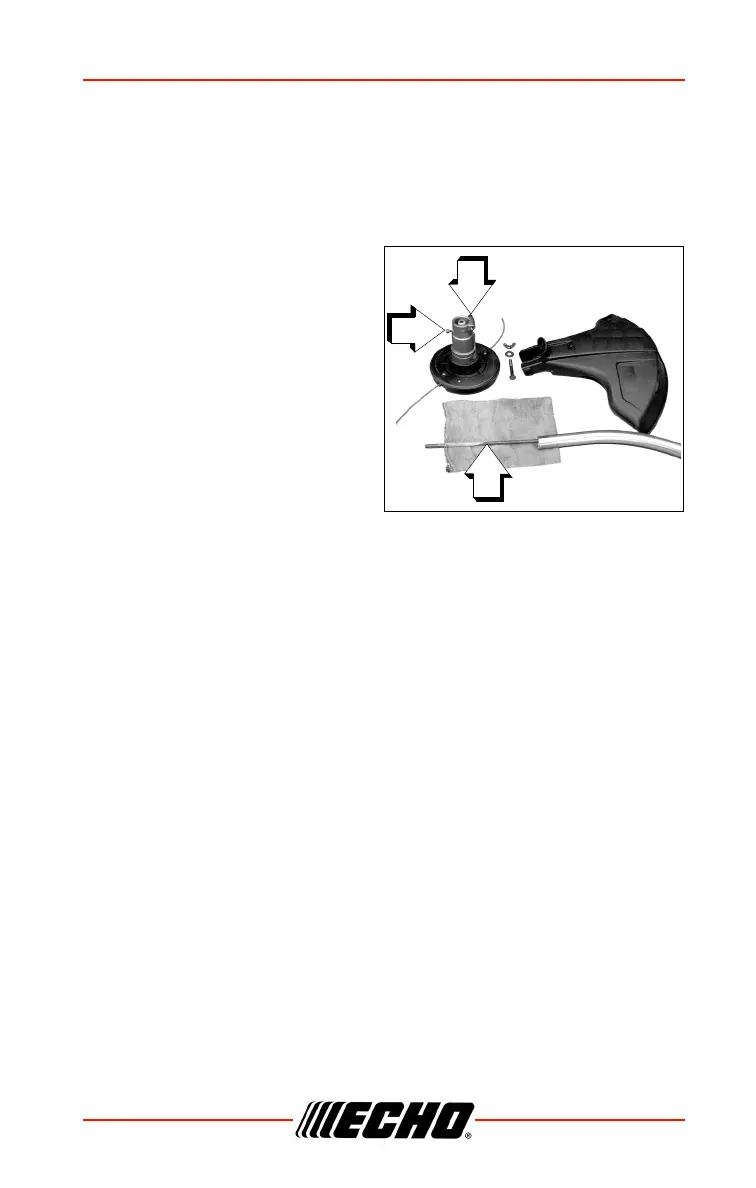

1. Remove shield.
2. Loosen bearing housing
locating screw (A), at the top of
the housing, loosen mounting
screw (B) and remove gear
case from drive housing.
3. Pull the flexible drive shaft (C)
from the drive housing, wipe
clean and apply 15 ml (0.5 oz.)
of grease.
4. Slide the flexible drive shaft
back in the drive housing being
careful not to get dirt on the
flexible drive shaft.
5. Install the bearing housing and shield.
Parts Required: Lithium Based Grease.
A
B
C

Echo GT-225 Specifications

General

Engine Displacement	21.2 cc
Shaft Type	Straight
Engine Type	2-stroke
Handle Type	Loop
Fuel Capacity	14.9 fl. oz.
Weight	10.1 lbs
Cutting Swath	16 inches
