PAS-225 ASSEMBLY
X7732274303 17
© 01/2020 ECHO Incorporated

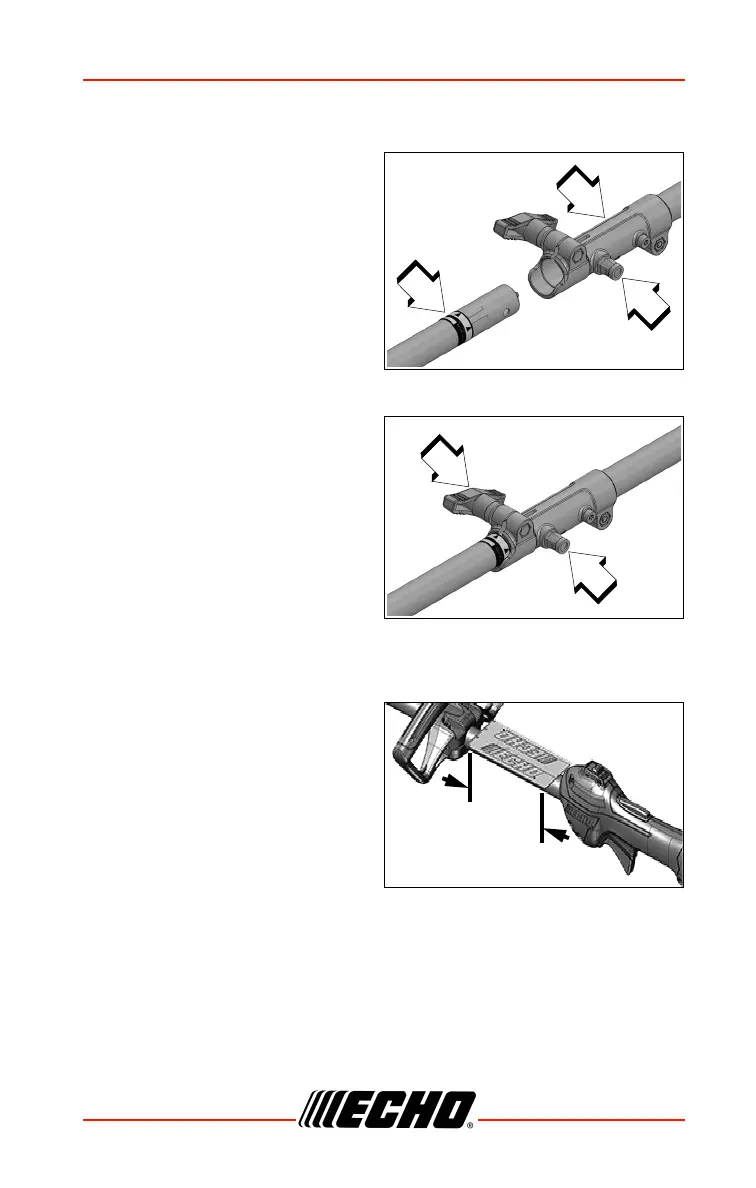

4. Remove cardboard spacer, if necessary.
Note: Your coupler may appear different than coupler shown.
5. Carefully fit attachment drive
shaft assembly into coupler (B)
to decal assembly line (C), if
applicable, making sure that the
inner lower drive shaft engages
the square upper drive shaft
socket.
Note: Earlier model power
heads may have shorter
couplings.
Note: Lower bearing housing
and head assembly must be in line with the engine.
6. Rotate locater pin (A) one-
quarter turn clockwise to
engage lower shaft hole. Insure
locater pin is fully engaged by
twisting lower drive shaft.
Locater pin should snap flush in
coupler. Full engagement will
prevent further shaft rotation.
7. Secure lower shaft assembly to
coupler by tightening clamping
knob (D).
Support Handle Installation
Note: Label shows minimum
spacing for support
handle location.
1. If necessary, position support
handle for comfortable
operation and securely tighten
screws.
B
A
C
D
A

Echo PAS-225 Pro Attachment Series Specifications

General

Engine Displacement	21.2 cc
Shaft Length	59 in
Starting System	i-30™ starting system
Attachment Capable	Yes
Engine Type	2-stroke
Shaft Type	Straight
Cutting Swath	17 in
Line Diameter	0.095 in
Fuel Capacity	14.9 fl. oz.
