6. Insert anti-static wire through swivel pipe.
7. Assemble swivel pipe in to flexible pipe and tighten clamp.
8. Clip throttle cable into guide loop.
9. Position handle for comfortable operation, and tighten lock-
ing knob hand tight.
10. Assemble straight pipe onto swivel pipe, until you feel light
resistance. Do not force connection. Hold swivel pipe and
turn straight pipe clockwise, engaging positive locking chan-
nels,until connection is firm. Do not force connection.
11. Assemble round straight nozzle to straight pipe as in step 10.
Adjusting the harness
1. Loosen upper and lower buckles, then put blower on your
back.
2. Pull strap downward to adjust position of blower.
3. Pull to adjust angle between your back and the blower.

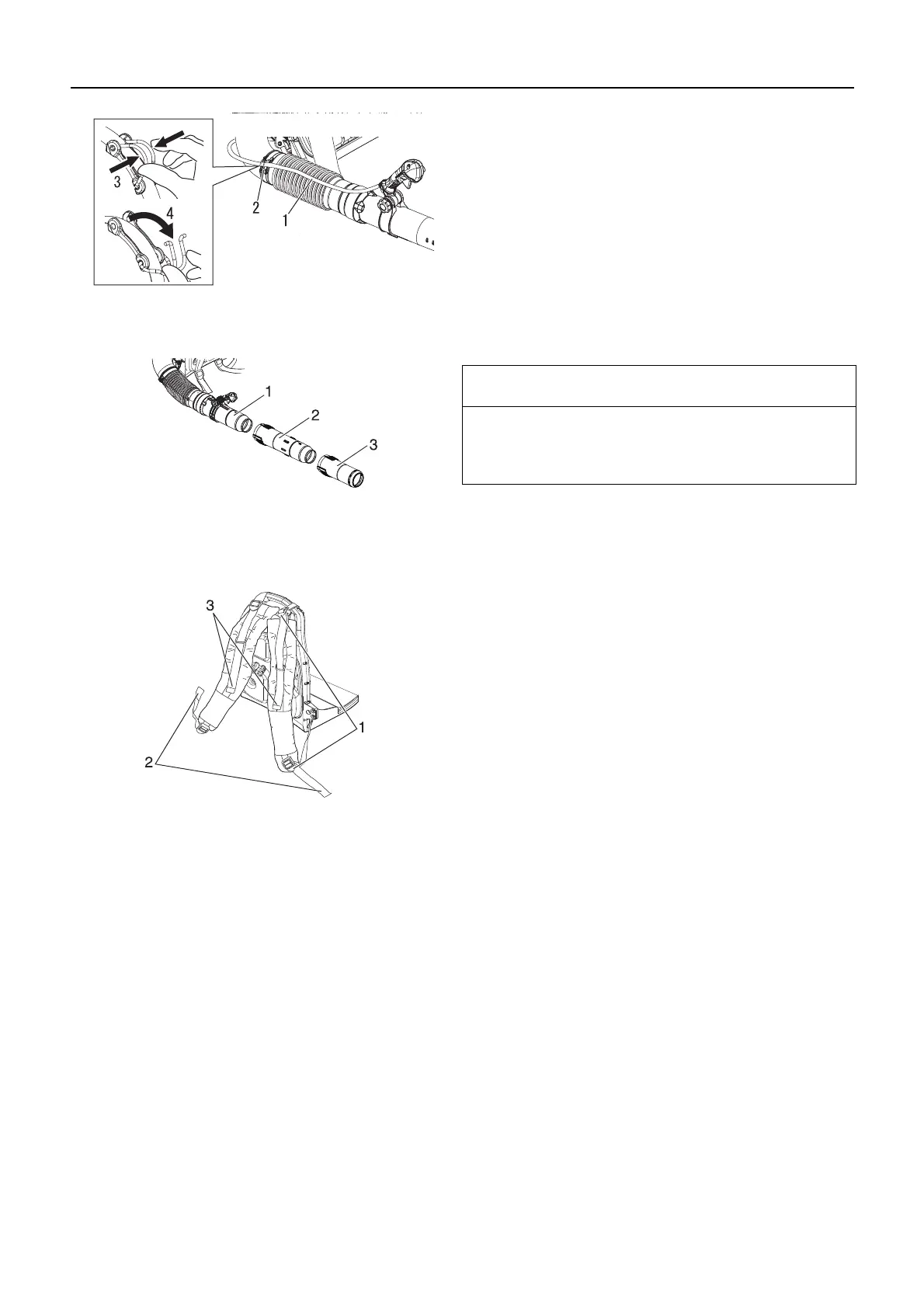

1. Throttle cable
3. Pinch
2. Guide loop
4. Open
1. Swivel pipe
3. Round straight nozzle
2. Straight pipe
NOTE
Blower use will eventually loosen pipe connections. Exclusive
positive locking system allows pipes to be tightened. If loosen-
ing occurs, remove straight pipe and round straight nozzle and
install according to instructions 10 & 11.
1. Buckles
3. Adjust angle
2. Adjust position
