Maintenance and care
Maintenance and care
Servicing guidelines
Maintenance and care
Cleaning air filter
Tools required: 25-50 mm (1-2 in.) Cleaning brush
Parts required: Air filter
1. Remove air filter cover. Brush dirt from inside cover.
2. Remove air filter and then lightly brush debris from them. Re-
place filter if it is damaged, fuel soaked, very dirty, or the rub-
ber sealing edges are deformed.
3. If filter can be reused, be certain it:
Fits tightly in the air filter cavity.
Is installed with the original side out.
4. Install the air cleaner, prefilter, and air cleaner cover in the
reverse order of the disassembly operation.
Area Maintenance Page Before use Monthly
Air filter Inspect / Clean / Replace 21 •
Fuel filter Inspect / Replace 22 •
Spark plug Inspect / Clean / Adjust / Replace 25 •
Carburettor Inspect 22 •
Cooling system Inspect / Clean 23 •
Exhaust system Inspect / Tighten / Clean 24 •
Starter Inspect - •
Fuel system Inspect - •
Screws, bolts and nuts Inspect / Tighten / Replace - •
IMPORTANT
Time intervals are maximum. Actual use and your experience will determine the frequency of required maintenance.
If you have any questions or problems, please contact your ECHO DEALER.

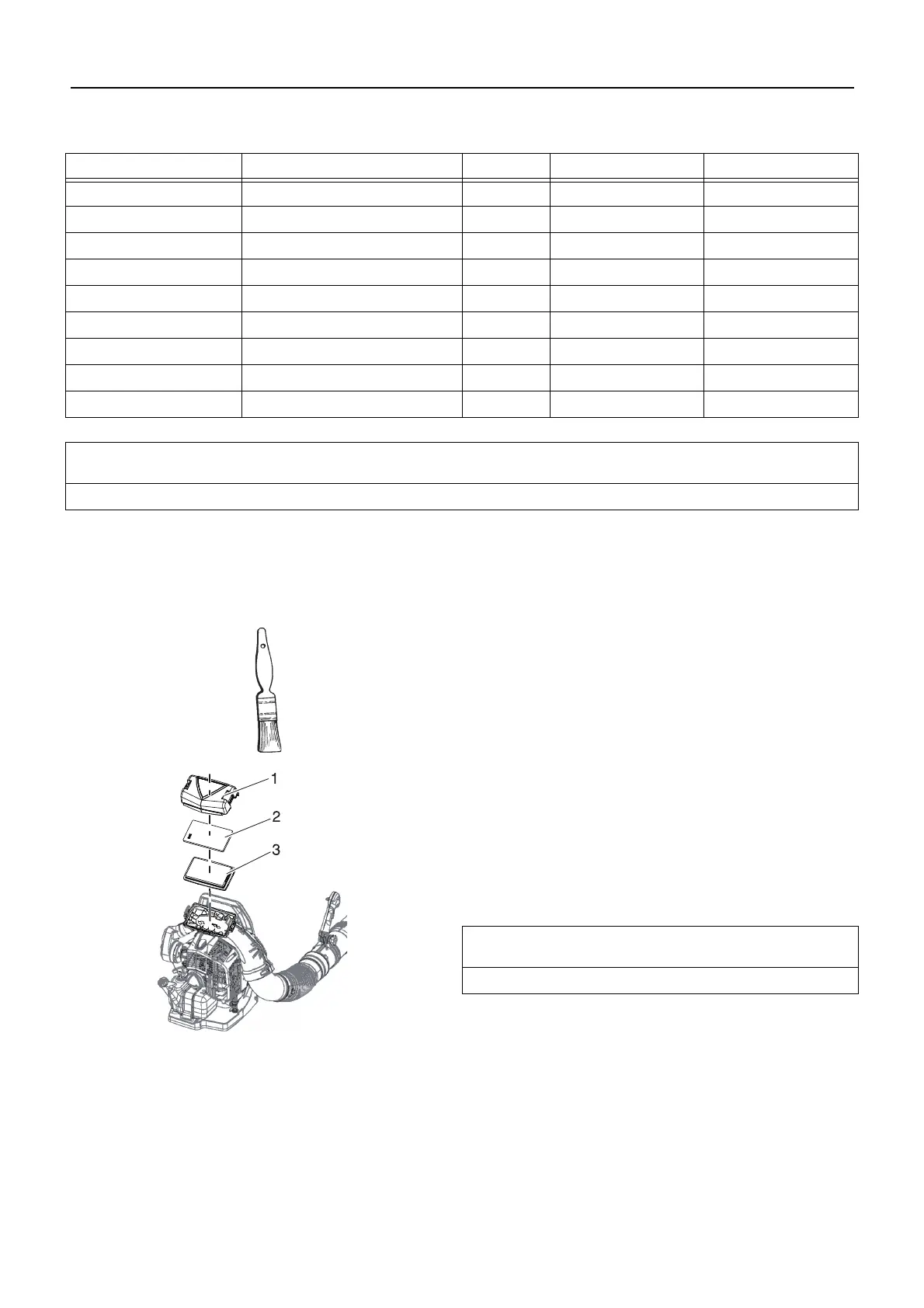

1. Air filter cover 2. Prefilter
3. Air filter
IMPORTANT
Direct the air stream at the inside face of the filter only.
