Before you start
Before you start

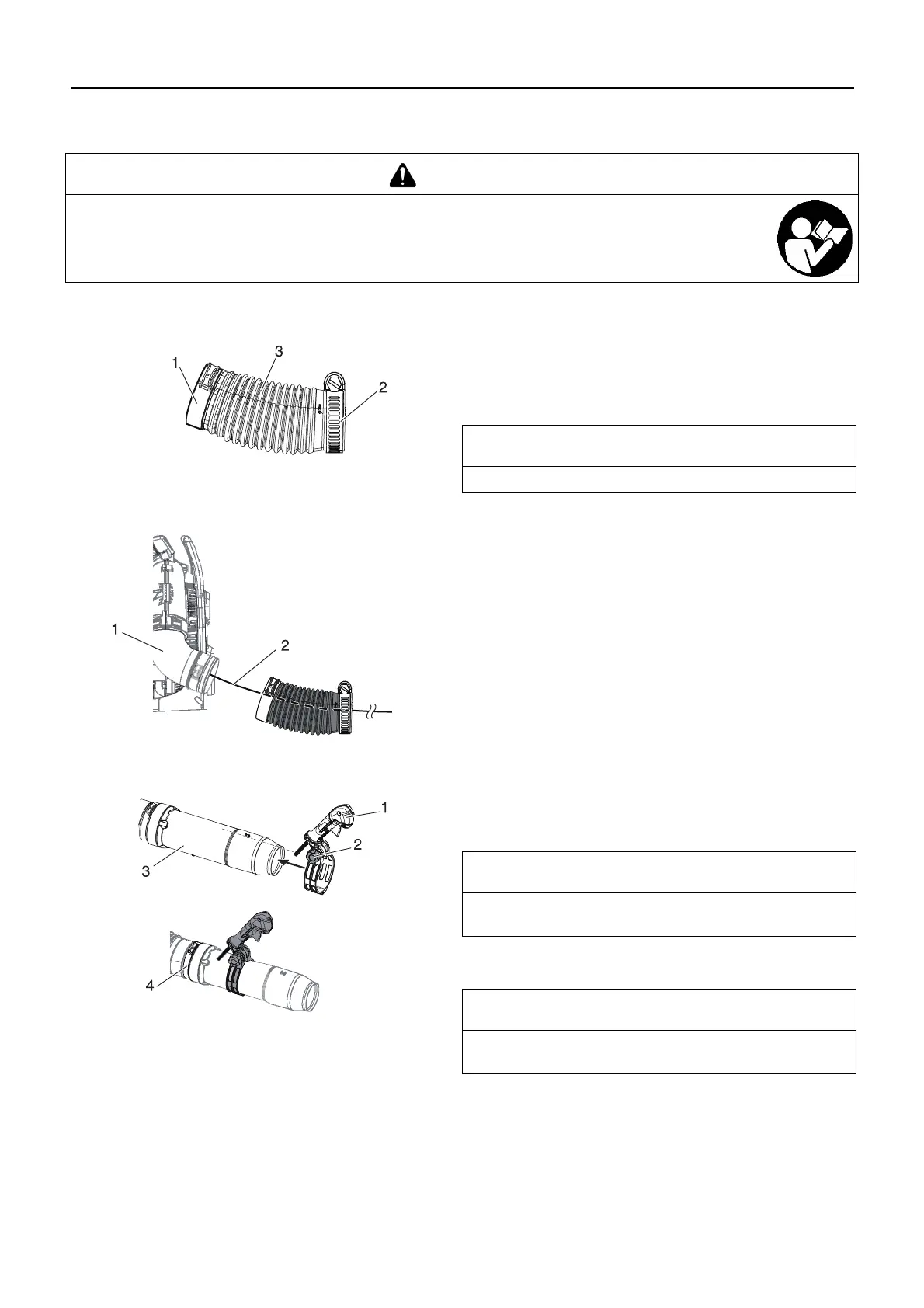

Assembly
Install blower pipes
1. Assemble clamp onto end with smaller diameter of flexible
pipe.
2. Assemble clamp with guide loop onto end with larger diam-
eter of flexible pipe. Place clamp with opening side of clip di-
rected upward.
3. Insert anti-static wire through flexible pipe.
4. Assemble flexible pipe to elbow on blower. Place clamp with
guide loop. Position guide loop on outside of flexible pipe
(away from blower) and tighten clamp.
5. Position cable along the outside of elbow. Loosen locking
knob on handle. Install onto swivel pipe.
WARNING
Read the operator's manual carefully to ensure that you assemble the product correctly.
Never perform maintenance or assembly procedures with engine running.
Using a product that has been incorrectly assembled could lead to an accident or serious injury.
1. Clamp with guide loop
3. Flexible pipe
2. Clamp
NOTE
Clamp with cable guide loop fits elbow end of flexible pipe.
1. Elbow 2. Anti-static wire
1. Handle
3. Swivel pipe
2. Locking knob
4. Clamp
NOTE
A light lubricant may be used to ease assembly of flexible pipe
to blower elbow.
NOTE
Hang handle freely from blower to assure throttle cable is not
twisted before installing handle.
