22

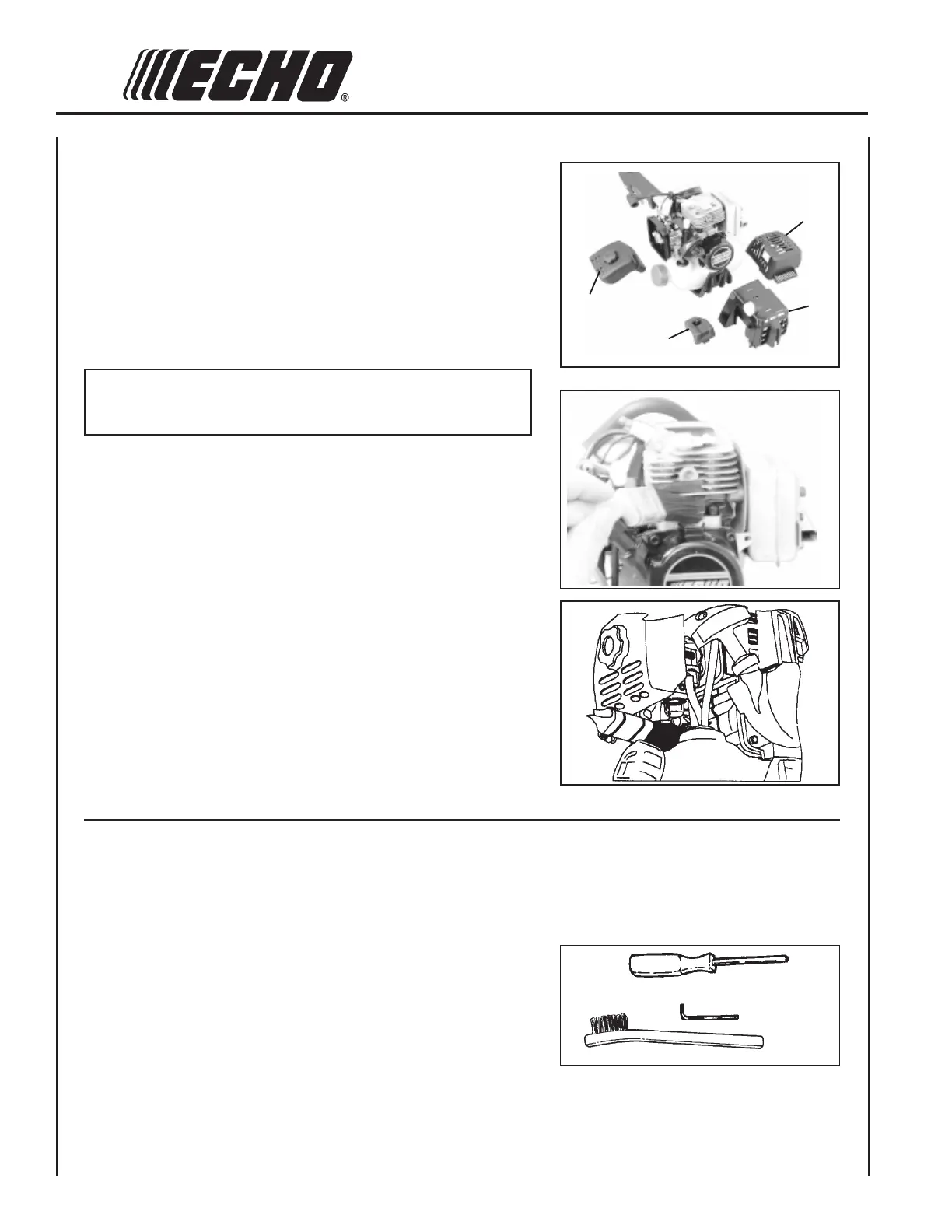

1. Close choke and remove air filter cover (A).
2. Remove spark plug lead.
3. Remove two (2) muffler cover screws and muffler cover (B).
4. Remove screw and arm rest (C).
5. Remove cylinder cover (D).
IMPORTANT
DO NOT use a metal scraper to remove dirt from the cylinder fins.
6. Use brush or wooden stick to remove dirt from the cylinder fins.
7. Remove grass and leaves from the grid between the recoil starter and
fuel tank.
EXHAUST SYSTEM
Spark Arrestor Screen
Level 2.
Tools required: Cross-HeadScrewdriver, Soft metal brush, 4 mm Hex
Wrench.
Parts Required: Screen P/N 14586240630
A
B
C
D
