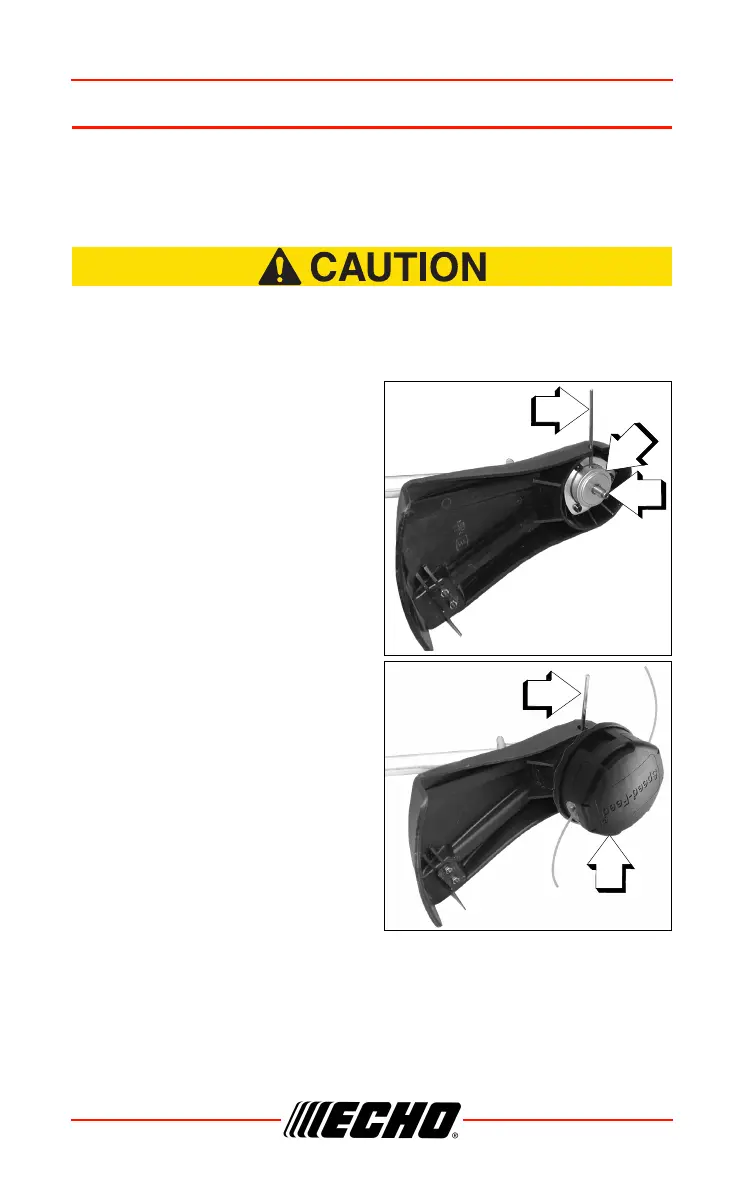

ASSEMBLY
SRM-266
18 X7502028004
© 02/21 ECHO Incorporated
ASSEMBLY
Nylon Line Head Installation
Wear Gloves or personal injury may result:
◆ Cutoff knife is sharp.
◆ Gearcase and surrounding area may be hot.
1. Be sure adapter plate (C)
remains on PTO shaft (A).
2. Align locking hole in upper plate
with notch in edge of gear
housing and insert head locking
tool (D).
3. Thread line head (E) onto shaft
by turning it counterclockwise
until head is tight against adapter
plate.
4. Remove locking tool (D).
Parts Required: Nylon Line Head.
C
A
D
E
D
