SRM-266
ASSEMBLY
X7502028004 19
© 02/21 ECHO Incorporated

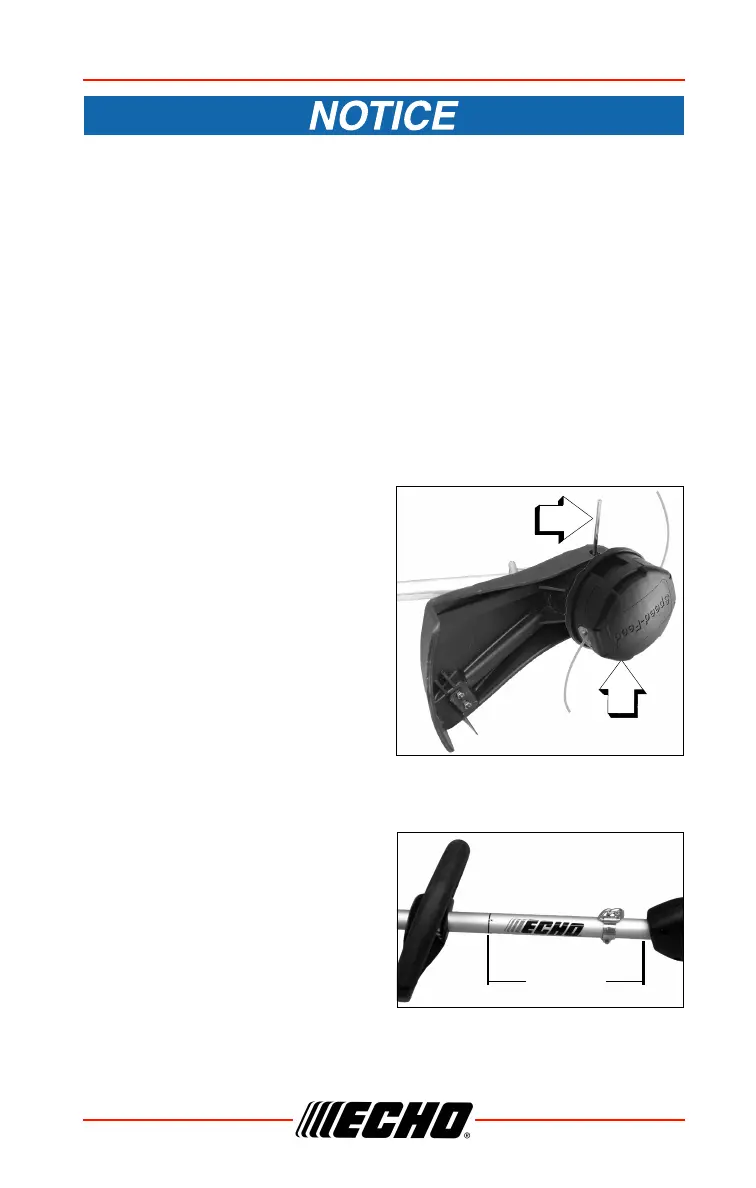

Semi-automatic nylon line heads must be used only with debris
shield with cut-off knife. Using nylon line heads with debris shield
without cutoff knife can result in trimmer damage, caused by
operation with excessive line length.
Note: Your nylon line head may appear different than nylon line
head shown.
To Advance Trimmer Line
See Maintenance Section for nylon line replacement.
Note: To advance trimmer line, tap trimmer head against the ground
while the head is turning at normal operating speed.
Remove Nylon Line Head
Note: Do not disassemble nylon
line head.
1. Align locking hole in upper plate
with notch in edge of gear
housing and insert head locking
tool (D).
2. Remove line head (E) by turning
it clockwise until head is
completely off of shaft.
3. Remove locking tool (D).
Support Handle Installation
Note: Label shows minimum
spacing for support handle
location.
1. If necessary, position support
handle for comfortable operation
and securely tighten screws.
