Drive Shaft (flex cable only)

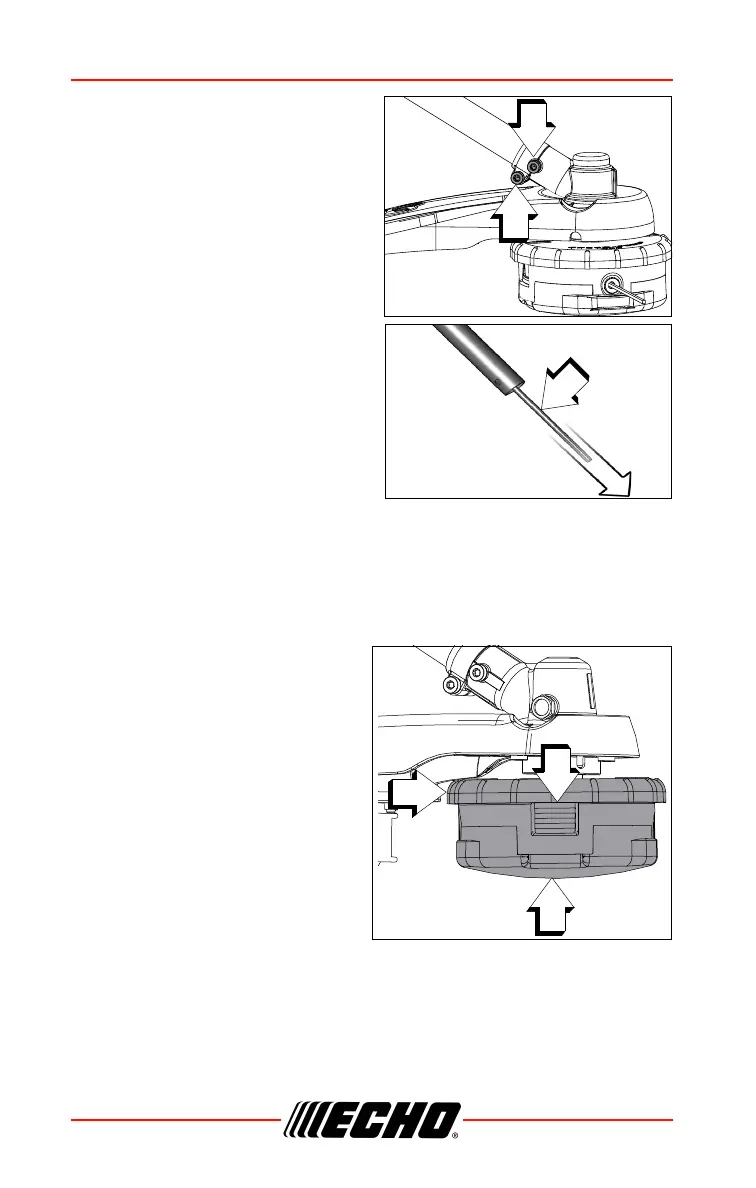

1. Loosen screw (B) and remove
locating screw (C). Pull gear
case and shield from drive shaft
housing.
2. Pull flexible cable (D) from the
drive shaft housing, wipe clean
and re-coat with 15 ml (0.5 oz.) of
grease.
3. Slide the flexible cable (D) back
in the drive housing. DO NOT get
dirt on the flex cable.
4. Install the gear housing and
shield assembly.
Nylon Line Head Disassembly Instructions
Note: For normal use, Speed Feed
®
head disassembly is not
necessary. However, if circumstances require disassembly,
follow these instructions.
1. Press top of locking tabs (A) on
both sides of Speed Feed
®
head to
release cover (B) from
eyelet carrier (C).
2. Remove cover from eyelet
carrier.
