2. Connecting Devices

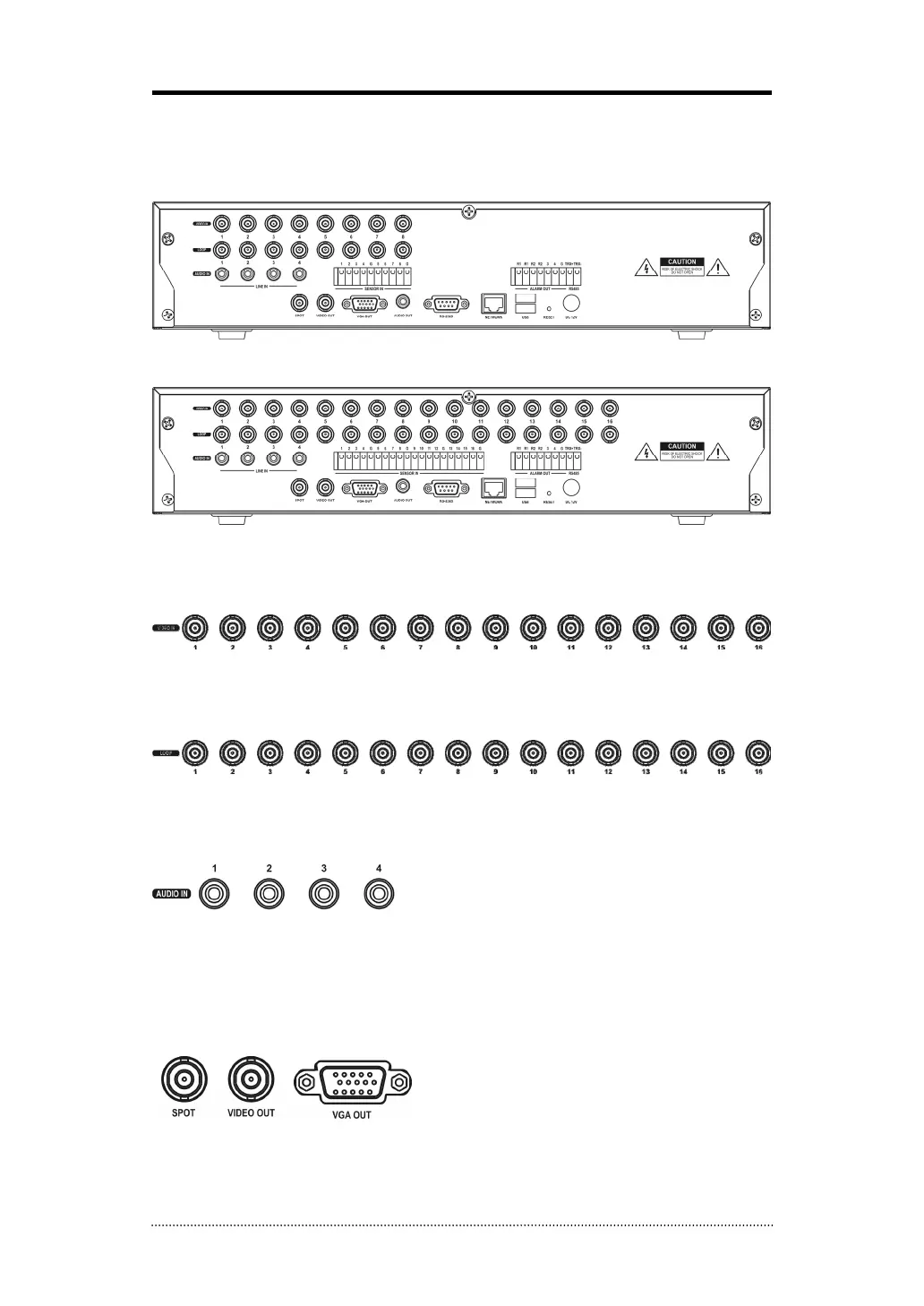

The rear panels of the DVR comprise the following:
[8 Channel Model]
[16 Channel Model]
Video Input
Connect the coaxial cables from the cameras to the BNC video connectors.
Loop-Through Video
Connect the coaxial cables from the Loop BNC connector to another device.
Audio Input
The DVR can record audio up to 4 sources. Connect the audio sources to the Audio-In RCA
connectors. Audio input channels need external pre-amplifiers.
It is the user's responsibility to determine if local laws and regulations permit recording audio.
Video Output
Connect the main monitor to either the Video Out (CVBS) or VGA out connector. Connect the spot
monitor to the SPOT connector as needed.
