Ecodan 150 Standard - 2 Zone Control Pack - Temperature Sensor Wiring; 2 Zone Control Pack - Dip Switch Settings

24
Primary Flow
Secondary Z1 Flow
Secondary Z2 Flow
Secondary Z2 Return
Primary Return
Secondary Z1 Return
TB1.2 3-4 (THW6)
TB1.2 5-6 (THW7)
TB1.2 7-8 (THW8)
TB1.2 9-10 (THW9)
SW2-7 - ON
SW3-6 - ON

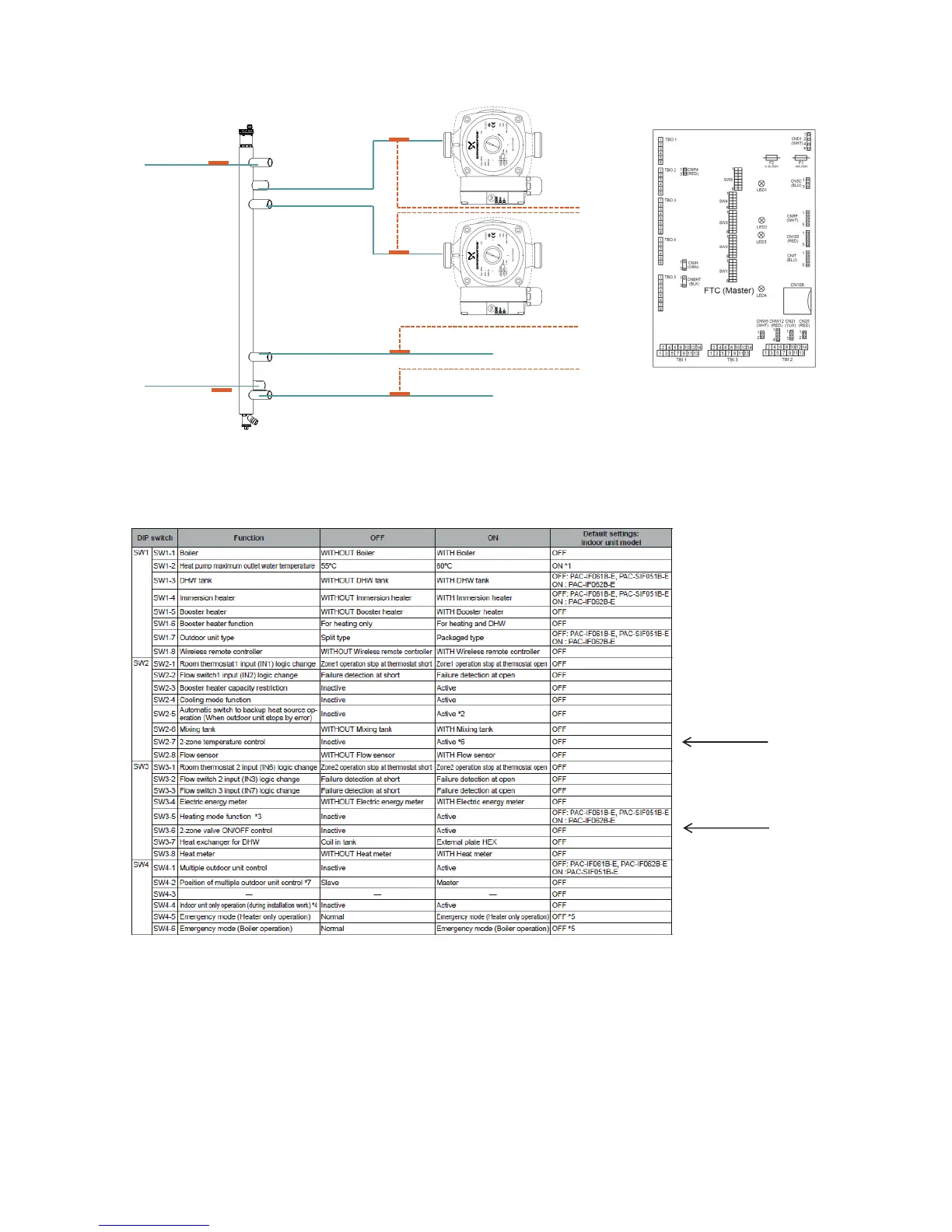

Fig 11 - 2 zone control pack - temperature sensor wiring
Fig 12 - 2 zone control pack - dip switch settings
