Ecodan 150 Standard - Dimensions and EU Product Fiche- Standard Models

7
683.0
730
A
B
C
D
E
F
G
579
H
I
KEY
A OVERALL HEIGHT
B SECONDARY RETURN TAPPING
C HEAT PUMP FLOW CONNECTION (22mm O/D COPPER)
D TUNDISH OUTLET CONNECTION (22mm COMPRESSION)
E HEAT PUMP RETURN CONNECTION (22mm O/D COPPER)
F HEATING CIRCUIT FLOW CONNECTION (22mm O/D COPPER)
G HEATING CIRCUIT RETURN CONNECTION (22mm O/D COPPER)
H COLD WATER INLET CONNECTION (22mm COMPRESSION)
I HOT WATER OUTLET CONNECTION (22mm COMPRESSION / 3/4” BSP M)
CAPACITY 150 170 210 250 300
A 1130 1256 1508 1760 2074
B - - 1050 1175 1385
C 996 996 996 996 996
D 493 619 871 1123 1437
E 585 585 585 585 585
F 195 195 195 195 195
G 50 50 50 50 50

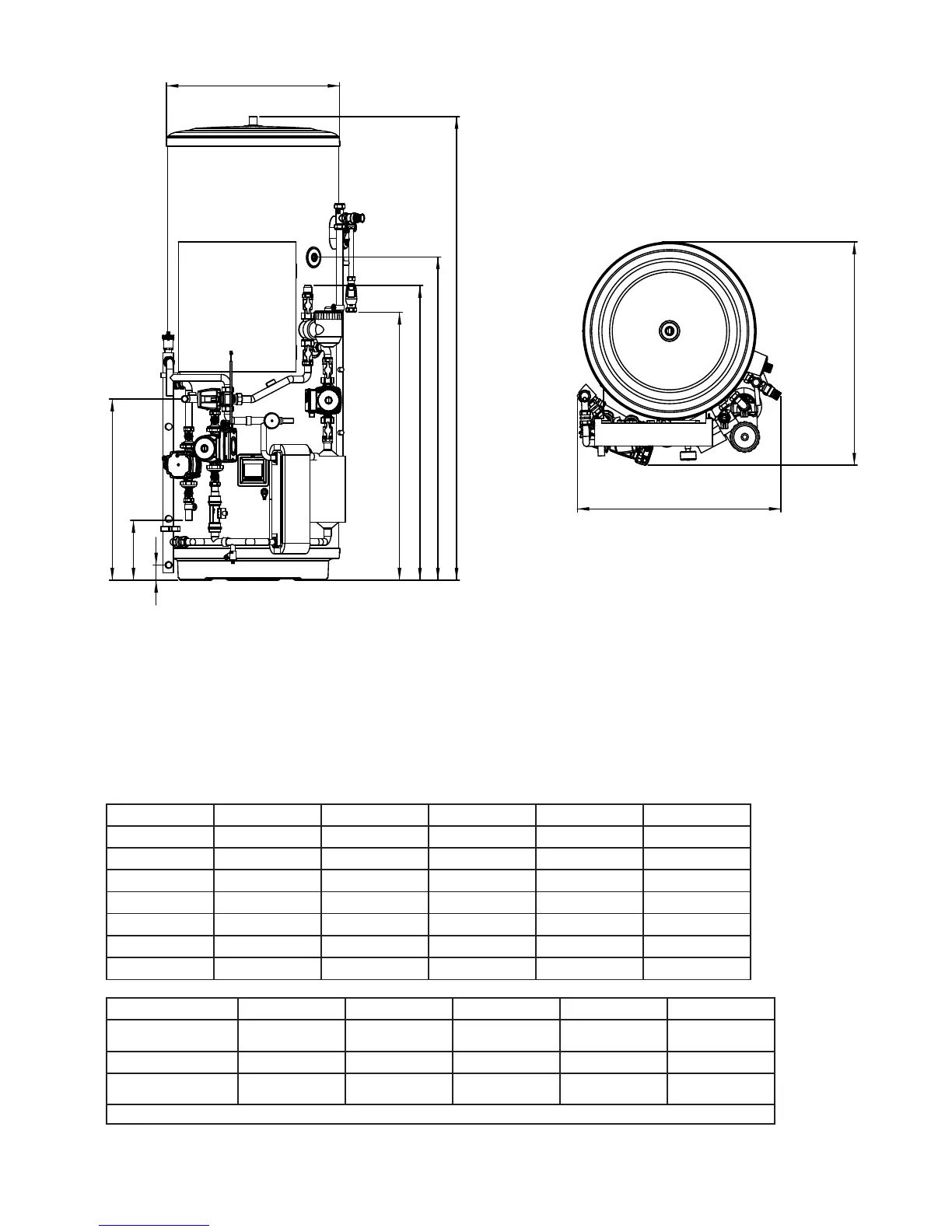

Fig 2a - Dimensions and EU Product Fiche- Standard models
MODEL 150 Standard 170 Standard 210 Standard 250 Standard 300 Standard
Energy efciency
class
B B C C C
Standing loss in W
50 55 65 70 79
Storage volume V in
Litres
150 170 210 250 300
Technical parameters in accordance with European Commission regulations 814/2013 and 812/2013
