Ecodan 150 Standard - Indicative Performance; Parts Identification; Hot Water Outlet

6

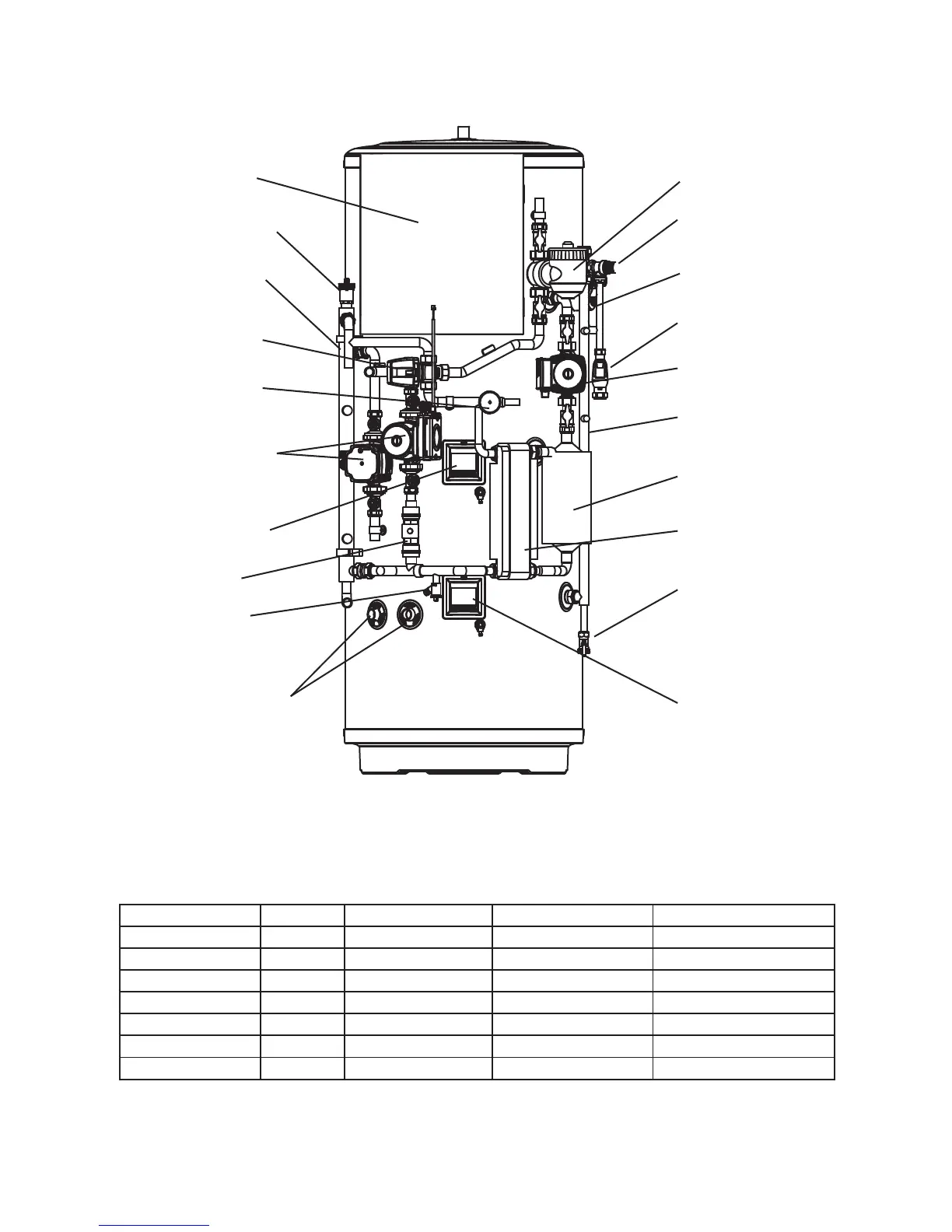

Fig 1 - Parts identication
Temperature/Pressure
Relief Valve
Expansion Valve
Tundish
DHW circulating
pump
Scale Trap
DHW Drain o
point
Plate to Plate heat
exchanger
Solar controls housing
(Solar models only)
Solar coil connections
(Solar models only)
Flow sensor
Primary circulation
pumps
3 Way motorised
diverter valve
Low loss header
Automatic Air Vent
FTC5 Controller
Hot Water Outlet
Magnetic lter
Immersion heater
housing
Primary circuit
pressure gauge
Primary circuit
drain o point
Expansion vessel
tapping
Indicative Performance
Nominal capacity Type Hot water capacity Reheat time Nominal heat input
(litres) (litres) (minutes) (kW)
150 Slimline 144 92 4.83
170 Slimline 175 69 7.85
150 Standard 153 65 7.20
300 Standard 301 172 5.38
300 Solar 302 135 6.88
Average 6.43
NOTE: Heating times achieved using an Air Source Heat Pump with variable output power and boost heating to 60
o
C using
a 3kW immersion heater and a primary (heat pump) ow rate of 20 l/min. Test method in accordance with EN12897:2006
