Ecodan 150 Standard - Dimensions and EU Product Fiche - Solar Models; Solar Coil Specification

8
A
C
B
D
E
F
G
579
730
683
H
I
KEY
A OVERALL HEIGHT
B HEAT PUMP FLOW CONNECTION (22mm O/D COPPER)
C TUNDISH OUTLET CONNECTION (22mm COMPRESSION)
D HEAT PUMP RETURN CONNECTION (22mm O/D COPPER)
E HEATING CIRCUIT FLOW CONNECTION (22mm O/D COPPER)
F HEATING CIRCUIT RETURN CONNECTION (22mm O/D COPPER)
G SOLAR COIL CONNECTIONS (22mm COMPRESSION / 3/4” BSP M)
H COLD WATER INLET CONNECTION (22mm COMPRESSION)
I HOT WATER OUTLET CONNECTION (22mm COMPRESSION / 3/4” BSP M)
CAPACITY 210 250 300
A 1513 1765 2081
B 1346 1346 1346
C 877 1129 1444
D 935 935 935
E 545 545 545
F 400 400 400
G 372 372 372

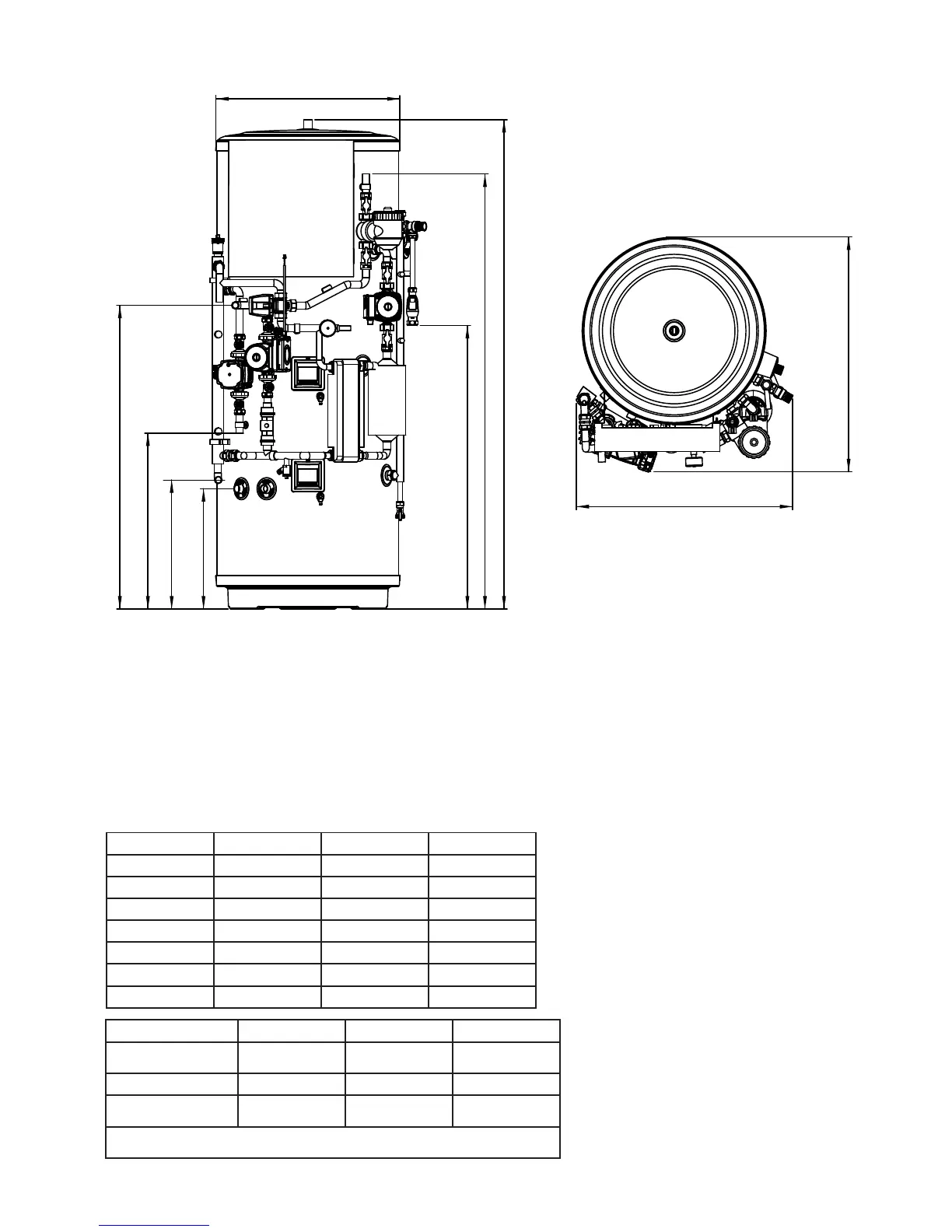

Fig 2b - Dimensions and EU Product Fiche - Solar models
Solar coil specication:
Surface Area: 1.1m
2
Coil volume: 5.8 litres
Pressure drop: 3.6 kPa (0.036 bar)
Output rating: 30kW at 80
o
C ow temperature, 15
litres/minute ow rate
Connections: 22mm compression / 3/4” BSP male
Dedicated solar volume: 75 litres
MODEL 210 Solar 250 Solar 300 Solar
Energy efciency
class
C C C
Standing loss in W
65 68 77
Storage volume V in
Litres
210 250 300
Technical parameters in accordance with European Commission regulations 814/2013
and 812/2013
