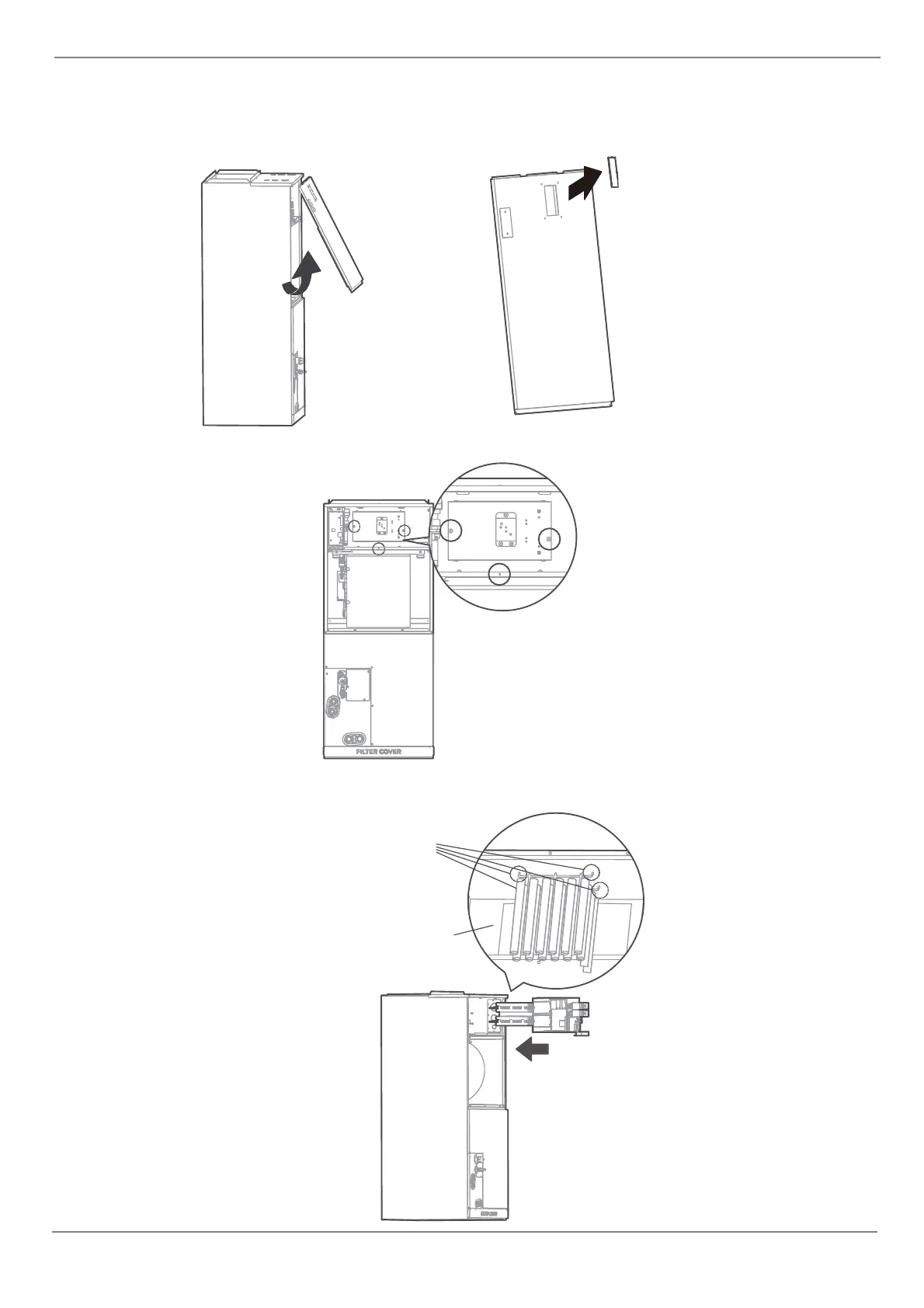

1. Remove the upper cover and use professional tools to remove the knock-out holes of the upper cover.
Electric Auxiliary Heat Module installation and wiring operation：
2. Remove the terminal block and power cord, loosen the screws, and remove the electric auxiliary heating cover.
3. Install the electric auxiliary heating assembly into the chassis shell from the front, and note that the front end
needs to be inserted into the shell assembly hole.
Shell assembly hole
This figure shows the top view perspective
