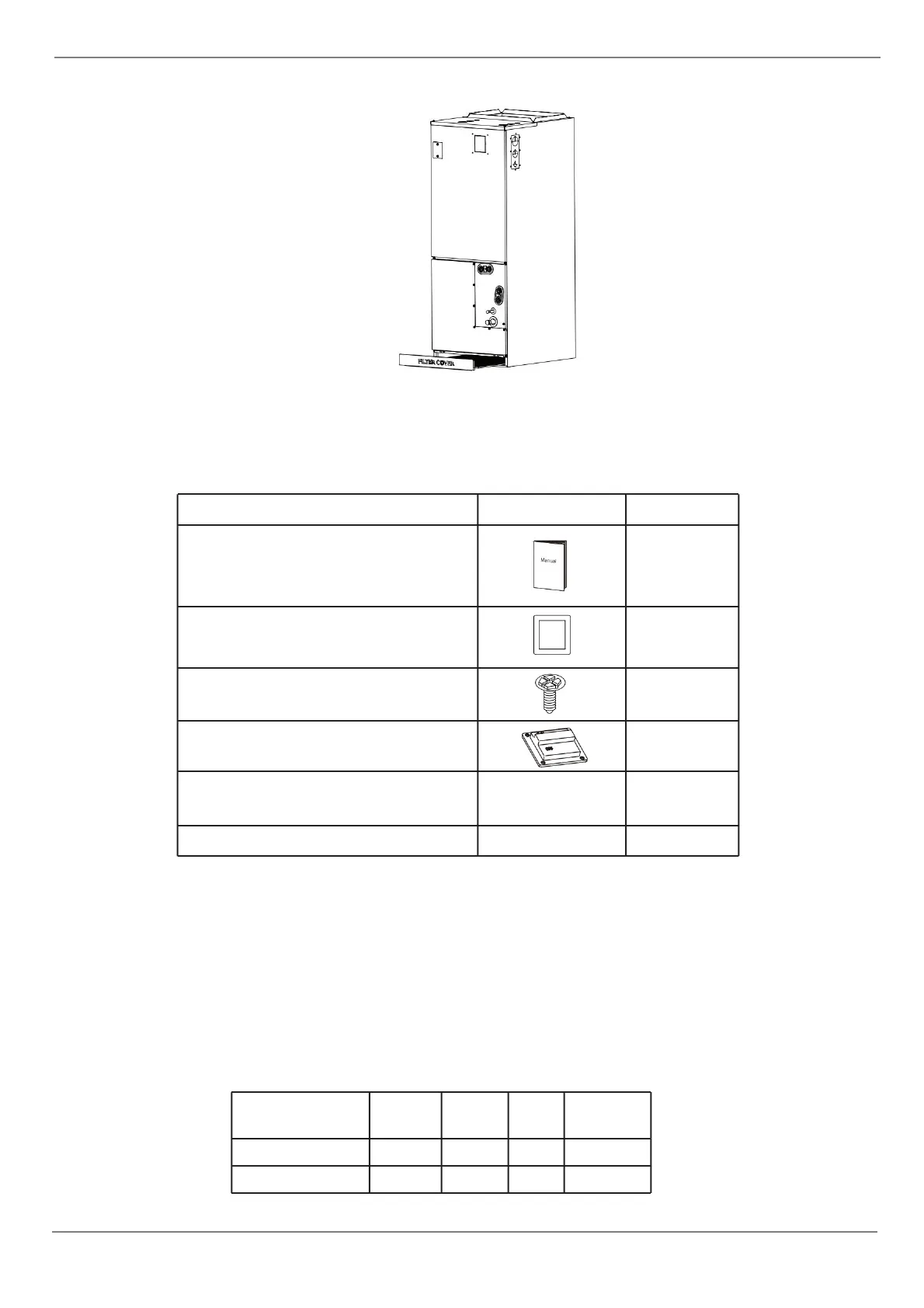

14. Reinstall the filter and filter cover plate.
NOTE:
Installation must be performed by an authorized dealer or specialist. Please make necessary protection when
installing the unit.
Specification series of electric auxiliary heat module: 8kW,10kW, 15kw, 20kW.
The electric auxiliary heat module is only used for installation on the AHU indoor unit.
If the unit needs to be equipped with electric auxiliary heat module, please check the electric auxiliary heat
module specification that can be matched with the unit first to avoid unnecessary consequences caused by
improper matching.
Selection and matching of internal machine and electric auxiliary heating components.
MODEL (Btu./h)
8kW
10kW
15kW
20kW
36K
Y
Y
Y
Y
60K
-
Y
Y
Y
15. Connect the pipes.
16. Install the drainage pipes.
Accessories
5.3.4 Install the Electric Auxiliary Heat Module
Name
Shape
Quantity
Manual
2
Foam gasket
1
Screws
7
Silicone breaker cover
1
Electric auxiliary heating wiring diagram
/
1
Circuit breaker label
/
1
