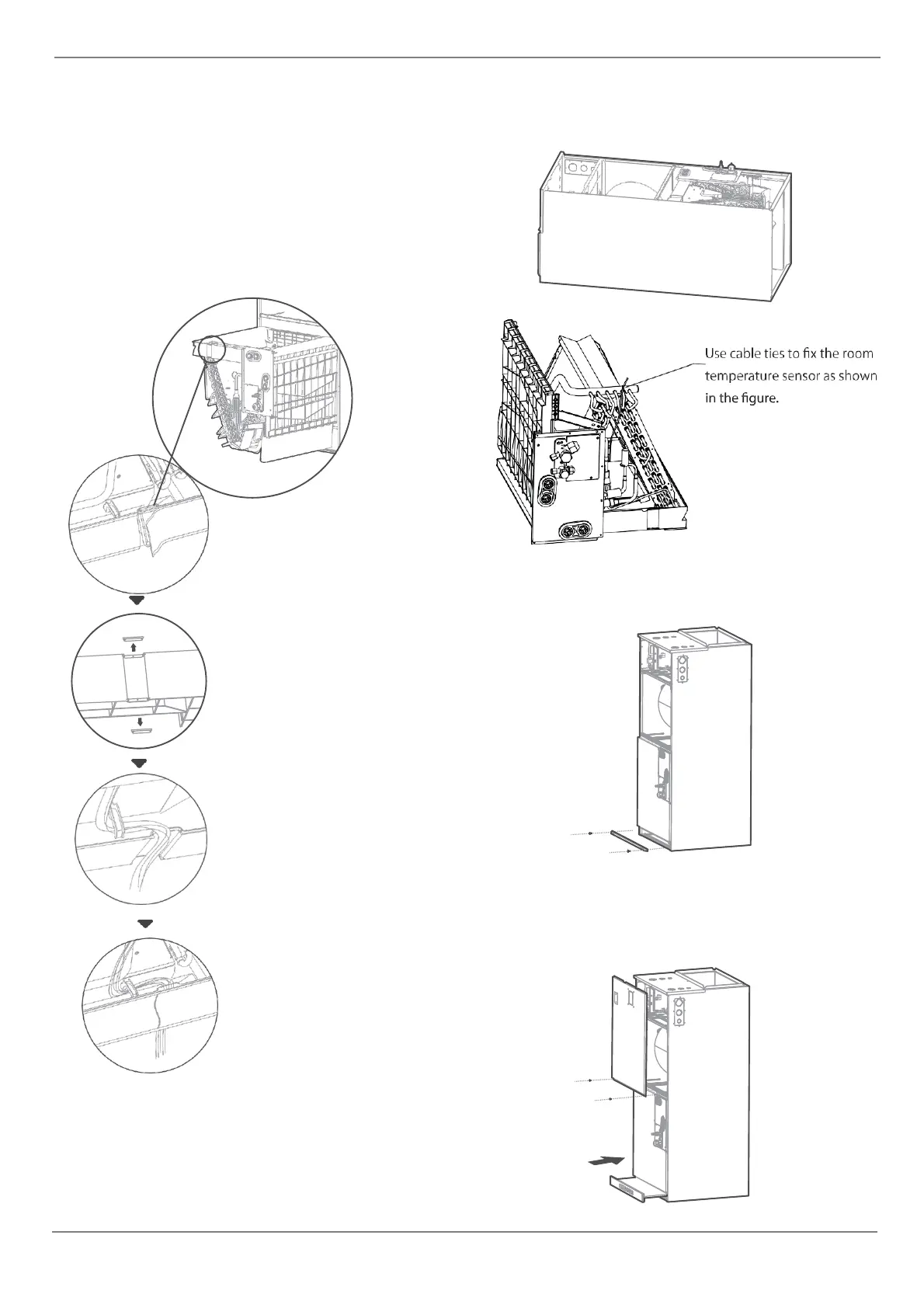

10. The evaporator is assembled in place.
11. Reinstall evaporator cover plate.
12. Connect the wire according to the wiring diagram.
Cut the foam gasket.
Remove knockouts as
shown in the figure.
Hook the wire into the
buckle and go down from
the wire slot.
Replace foam gasket
over wires.
9. Reinstall T1,T2,T2A,T2B sensor plug and electronic
expansion valve(EEV) and tie up the sensor wires.
Note: The wire body needs to pass through the wire
groove from the drain pan and be stuck on the hook of
the drain pan.
13. Reassemble the upper cover.
