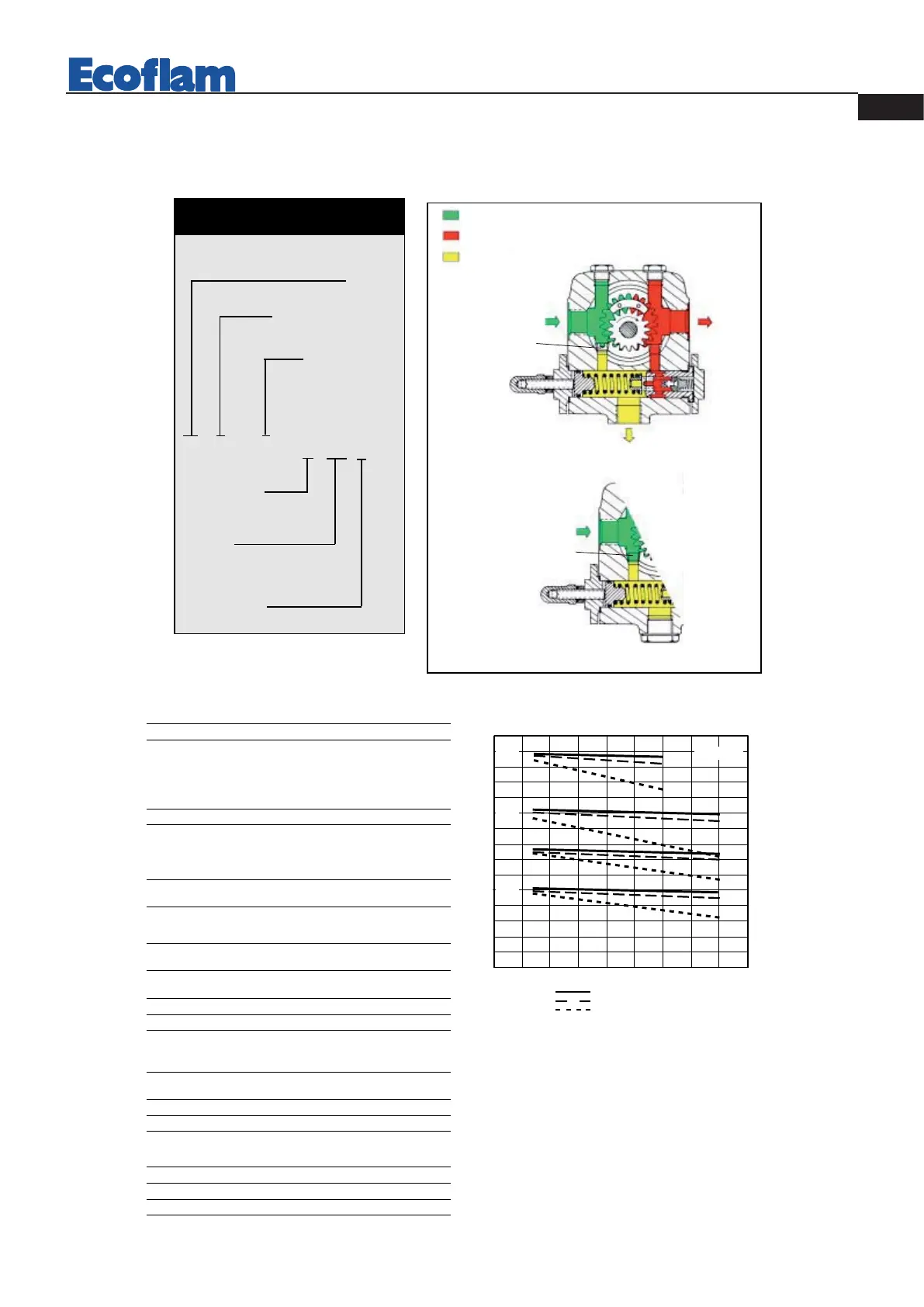

PUMP SUNTEC TA TECHNICAL DATA
Note : All TA models are delivered for two-pipe system (by-pass plug fitted in vacuum gauge port). For one-pipe
system, the by-pass plug must be removed and the return port sealed by steel plug and washer.
TA : type
TA 2 A 40 10 5
PUMP
IDENTIFICATION
(Not all model combinations are available
Consult your Suntec representative)
Gear set capacity
(see pump capacity curves)
Shaft rotation
(seen from shaft end)
A : clockwise rotation
C : anti clockwise rotation
Pressure range :
30 : 7 - 30 bars
40 : 7 - 40 bars
Preheater
facility
Revision number
Ingranaggio
Grano
di by-pass
tolto
Attacco
manometro
pressione
All'ugello
Olio in aspirazione
Olio in pressione
Ritorno dell'olio
non utilizzato
al serbatoio o
all'aspirazione
Attacco
vuotometro o
misura presione
di entrata
Vite di regolazione
della pressione
INSTALLAZIONE
MONOTUBO
Aspirazione
Ritorno
chiuso
Grano
di by-pass
inserito
INSTALLAZIONE
BITUBO
Ritorno
Aspirazione
Inlet end return G 1/2"
To nozzle G 1/2"
Pressure gauge port G 1/4"
Vacuum gauge port G 1/4"
4020 30 3510 15 255
1000
1200
1400
200
400
0
600
800
TA5
TA4
TA3
TA2
0
900
1500
1100
1300
100
300
500
700
General
Mounting Flange mounting
Connection threads Cylindrical according to ISO 228/1
Shaft Ø 12 mm
By-pass plug Inserted in vacuum gauge port
for 2 pipe system;
to be removed with a 3/16" Allen key
for 1 pipe system
Weight 5,4 kg (TA2) - 5,7 kg (TA3)
6 kg (TA4) -6,4 kg (TA5)
Hydraulic data
Nozzle pressure ranges 30 : 7 - 30 bars
40 : 7 - 40 bars
Delivery pressure
setting 30 bars
Operating viscosity 4 - 450 cSt
Oil temperature 0 - 140°C max. in the pump
Inlet pressure light oil : 0,45 bars max. vacuum to prevent
air separation from oil
heavy oil : 5 bars max.
Return pressure light oil : 5 bars max.
heavy oil : 5 bars max.
Rated speed 3600 rpm max.
Starting torque 0,3 N.m
Choice of heater
Cartridge Ø 12 mm
Fitting according to DIN 40430, NFC 68190 (N°9 elec.)
Rating 80-100 W
Data shown are for new pumps, with no allowance for wear.
Pump capacity
Capacity (L/h)
Viscosity = 200 cSt
20 cSt
5 cSt - Rated speed = 2850 rpm
Pressure
(bars)
2850 rpm
EN
420010310200 MULTICALOR 300.1-400.1 PR/PR
23
