Ecoflam Multicalor 45 - Burner Head and Gas Disc Adjustments; Firing Head Adjustment

pag.26
B LB 1371 Multicalor 45 ÷ 140

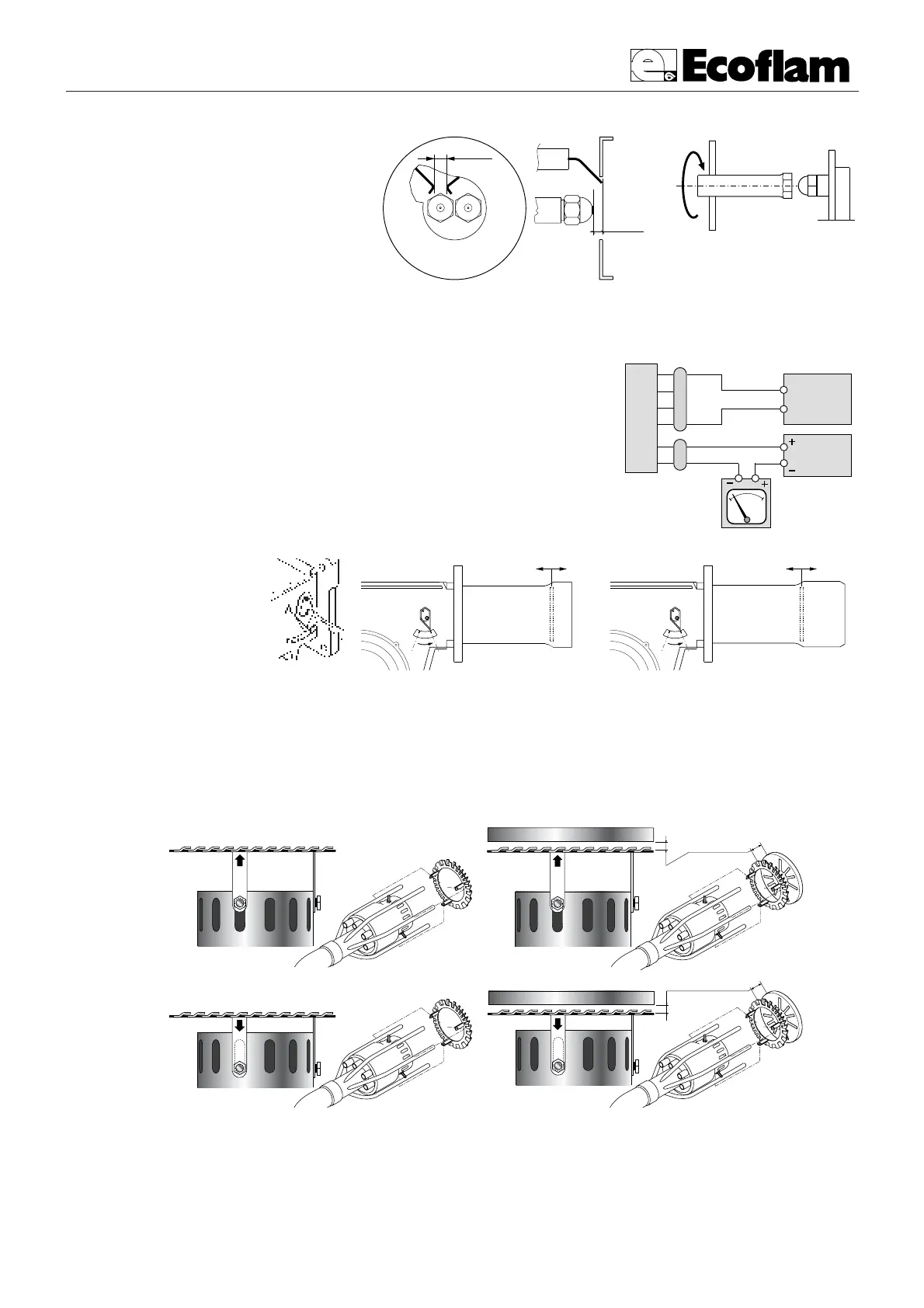

ADJUSTING THE FIRING HEAD
The adjustment of the combu-
stion head position is carried out
in order to
obtain the best combustion effi-
ciency. When installed for small
output operations,
the head shall be adjusted back.
For maximum operation the position is fully forward.
Steps: loosen the locking screw of A lever. Move the lever to the needed position. Tighten back the locking screw.
A
min. max.
A
min. max.
MULTICALOR
45-70-100
MULTICALOR
120-140
NOZZLE CLEANING AND REPLACEMENT
Use only the suitable box wrench provided for this
operation to remove the nozzle, taking care to not
damage the electrodes. Fit the new nozzle with the
same care.
Note: Always check the position of electrodes after
having replaced the nozzle (see illustration). A
wrong position could cause ignition troubles.
5÷6 mm
3÷4 mm
2 fiamme
The control of the ionisation current shall be carried out by plugging a microamperometer
with full scale at 50 µA (D.C.) in series with the UV-cell. If the ioinisation current is too
low verify the connection between phase and neutral of the burner and the grounding of
the burner itself. Usually, the value of the ionisation current is > 20 µA.
Minimum required ionisation current: 3 µA
LGB 22
QRA
AGQ1.1A27
1
2
SW
SW
BL
BL
FLAME DETECTION SYSTEM CHECK
Microamperometer full scale
50 µA
SW = BLACK
BL = BLU
13 mm.
120 Metano
13 mm.
140 Metano
120 G.P.L.
140 G.P.L.
POSITION
OPEN
POSITION
CLOSSED
POSITIONING THE DISC FOR NATURAL GAS AND L.P.G. MULTICALOR 120/140
L.P.G.
L.P.G.
Natural Gas
Natural Gas
