Part 1 – Introduction

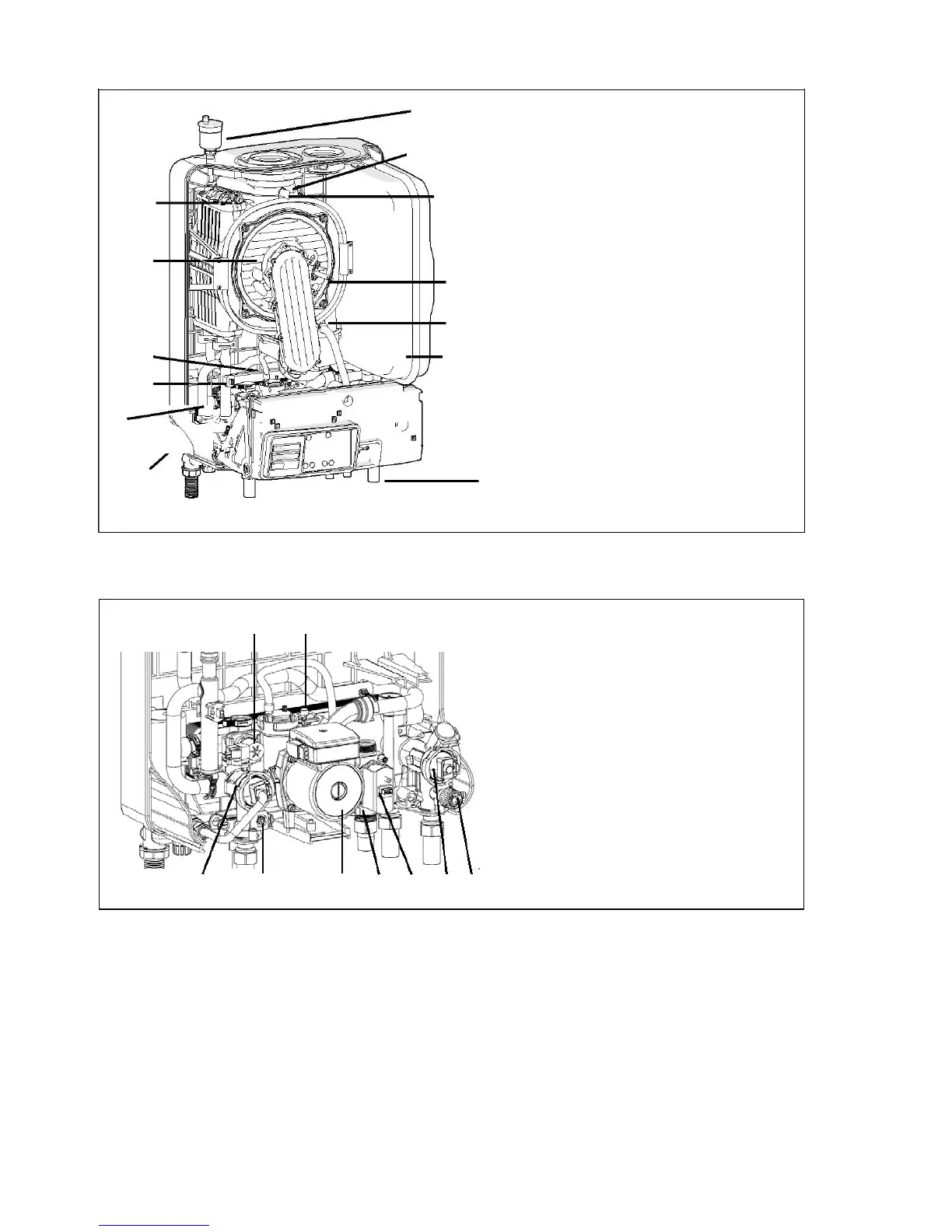

Main parts
E
F
G
H
I
J
M
A: Fan
B: ignition / ionisation electrode
C C: Flue gas temperature limiter (NTC)
D: Maximum temperature fuse (TF)
E: Manual vent
D
F: Burner and heat exchanger
G: Pump vent
H: CH Supply sensor
I: Magnetite filter
J: Hydroblock
K: Connections
B
L: Internal expansion tank
M: Automatic Air vent
A
L
K
Figure 1.2
Hydroblock
B
C
B: 3-way valve
C: Heat exchanger tap water
D: Adjustable by-pass
E: Flow sensor and hot water temperature
sensor
F: Pump
G: Water pressure sensor and return
sensor
H: Gas valve
I: Filter
J: Drain valve
E D F G H I J
Figure 1.3
