EcoKing C200 - Part 2 - Specifications; Technical Data

Part 2 – Specifications / Technical data
J K
A
B C
D
E F
G
H
I

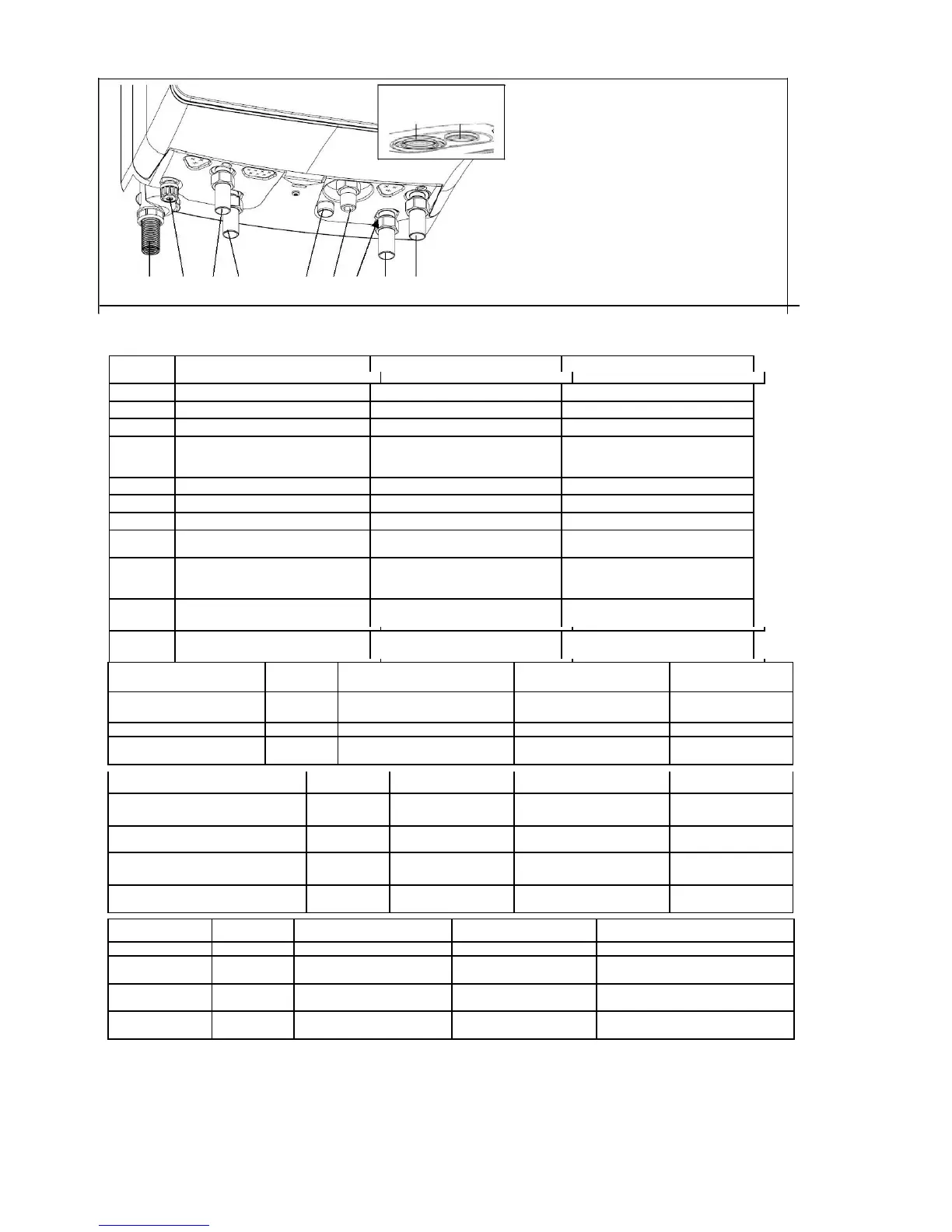

Figure 1.4
Connections
Character
Description
Connection size (SI, Metric)
Connection size (Imperial)
A
Connection for condensate trap
25 mm
0.98 inch
B
Filling valve
-
-
C
CH supply
22.22 mm
3/4“ CPS (7/8“ outer diameter)
D
-DHW outlet (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ outer diameter)
-Mains water supply for filling loop
(Hxxx types)
E
Vent drain pump
-
-
F
Connection for gas line
-
1/2“ NPT outer pipe thread
G
Flow limiter (Cxxx types)
-
-
H
-Cold tap water (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ inch outer
-Tank supply hot (Hxxx types)
diameter)
I
-CH return (Cxxx types)
22.22 mm
3/4“ CPS, (7/8“ inch outer
-CH return and Tank Return (Hxxx
diameter)
types)
J
Concentric air supply / Flue gas
Concentric 80/125 – 60/100 mm
Concentric 3.2/4.9 – 2.4/3.9 inch
discharge
K
Not used (to be closed because of
use of concentric flue gas system)
General
Metric /
Ecoking C100, H100
Ecoking C140, H140
Ecoking C200, H200
Imperial
Dimensions (h x
mm / inch
695x480x410 /
695x480x410 /
695x480x410 /
w x d)
27.4x18.9x16.1
27.4x18.9x16.1
27.4x18.9x16.1
Weight (empty)
kg / lb
31 / 68
34 / 75
37 / 82
Maximum absorbed electric
W / Btu/h
155 / 529
155 / 529
200/ 628
power
CH operation
Ecoking C100, H100
Ecoking C140, H140
Ecoking C200, H200
Input (0-2000 ft, gross calorific value)
kW / Btu/h
4,7 – 26.6 /
5,8 – 40 /
7,9 – 54 /
16.000 – 105.000
19.800 – 135.000
26.900 – 185.000
Max Output (0-2000 ft) at 50/30 °C
kW / Btu/h
26.6 / 85,000
31.2 / 106,500
43.7 / 150,000
NOx emission,
mg/kWh /
< 15 /
< 15 /
< 15 /
RAL UZ 61
ppm
< 30
< 30
< 30
CO emission,
mg/kWh /
< 20 /
< 20 /
< 20 /
RAL UZ 61
ppm
< 50
< 50
< 50
DHW operation
Ecoking C100
Ecoking C140
Ecoking C200
Nominal load
kW / Btu/h
4,7-31 / 16.000-105.000
5,8-40 / 19.800-135.000
7,9-54 / 26.900-185.000
Tap quantity at
l/minute -
8 – 2.1
10 – 2.6
13.5 – 3.6
60°C (dT=50K)
gal/min
Tap quantity at
l/minute
14
– 3.7
16.7 – 4.4
23
– 6.1
40°C (d T=30K)
gal/min
Hot tap water
°C / ° F
61
– 142
61 - 142
61
– 142
(permanently set)
Table 1.1 Technical specifications
