EcoKing C200 - Part 13 - Parts List

Part 13 - Parts list
25
6
5
11
7
13
14
17
24
22
20
10
21
9
15
16
8
18
Cable harness

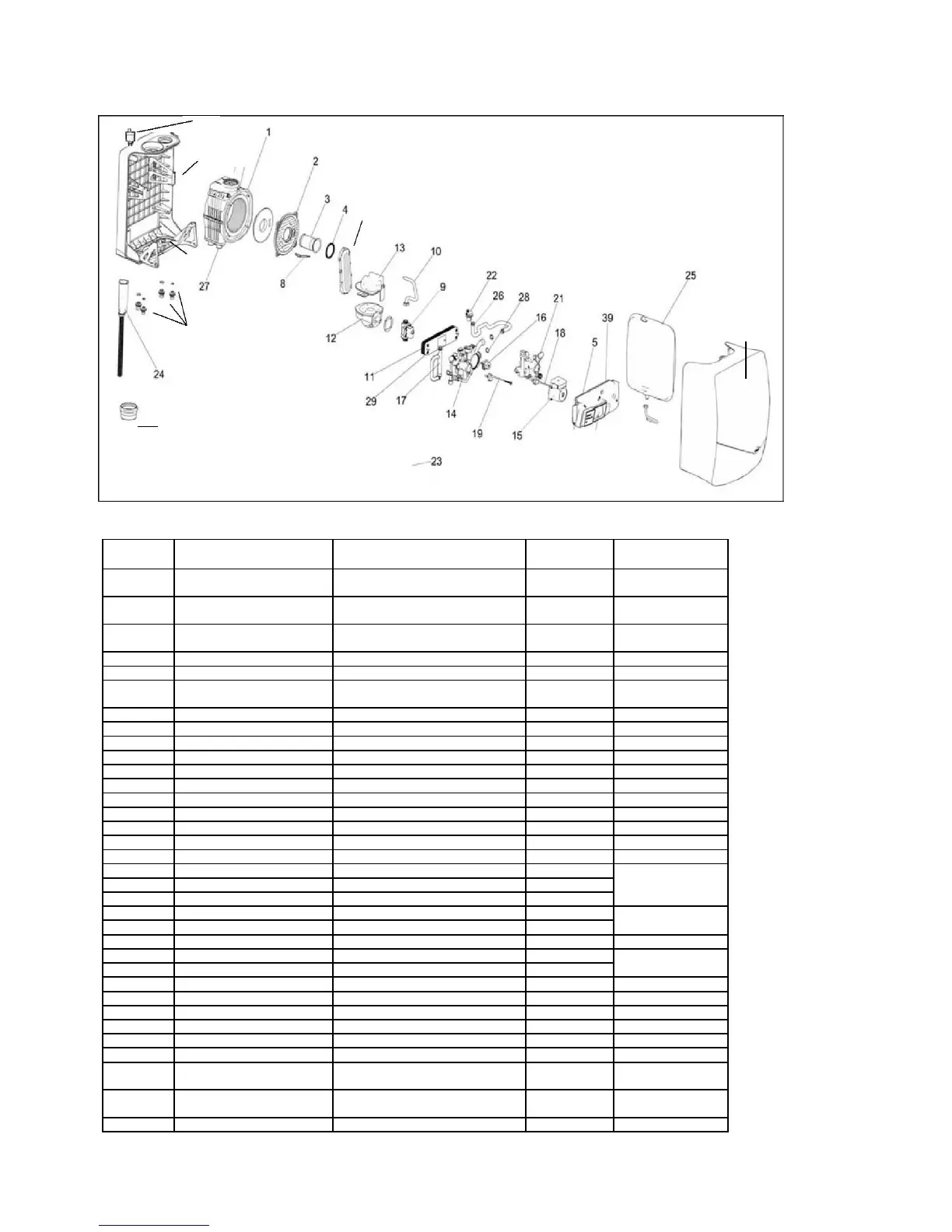

For a list of parts that corresponds to the item numbers, refer to Table 13.1.
Exploded
Category
Part name
Part number
Service part
view no.
number
1
Heat exchanger
Heat Exchanger HE ISO 3+1
202-1314
106-1028
C/H100
1
Heat exchanger
Heat Exchanger HE ISO 4+1
202-1315
106-1029
C/H140
1
Heat exchanger
Heat Exchanger HE ISO 5+2
202-1317
106-1031
C/H200
1
Heat exchanger
O-Ring Giannoni piping
202-0133
106-1089 (5pcs)
1
Heat exchanger
Bayonet Clixon
202-1249
106-1241
1
Heat exchanger
NTC SENSOR FOR
202-1196
106-1150
ISOTHERMIC HE
2
Burner Door
Burner Door Iso
202-1143
106-1033
2
Burner Door
Insulation Burner Door Iso
202-1055
106-1162
3
Burner
Burner C/H100
202-1147
106-1035
3
Burner
Burner C/H140
202-1148
106-1163
3
Burner
Burner C/H200
202-1189
106-1036
4
Burner
Gasket Burner
202-0635
106-1091
5
Burner
Inlet Pipe
6
Backplate
Backplate Uni
7
Bottom Plate
Bottom Plate
8
Exhaust Pipe
Exhaust Pipe
9
Siphon
Siphon Hose
9
Siphon
Siphon
202-0521
106-1067
9
Siphon
Rubber Sealing Siphon
202-0522
9
Siphon
Siphon
202-1001
10
Adapter
Adapter CH-DHW
202-1274
106-1257
10
Adapter
Nut Adapter
202-1156
12
Fan
Fan
202-1234
106-1242
12
Fan
Gas Mixer
202-1025
106-1056
12
Fan
Sealing Gas Mixer
202-1096
13
Electrode
Bolt Electrode
202-0653
106-0510
13
Electrode
Electrode (incl bolts)
202-1061
106-1039
14
Gas Valve
Screw Gas Valve
202-0107
106-0133 (20pcs)
14
Gas Valve
Gas Valve
202-1013
106-1040
15
Heat Exchanger DHW
Set Bolts Pump & PHE
202-0664
106-0712
15
Heat Exchanger DHW
PHE C100 12 Plates
202-1005
106-1045
15
Heat Exchanger DHW
PHE C140/C200 18 Plates
202-1007
106-1046
(Cxxx models)
15
Heat Exchanger DHW
Solo Adaptor Plate
202-1201
106-1281
(Hxxx models)
15
Heat Exchanger DHW
Gasket
202-1138
106-1090(10pcs)
