Ecolab ALLIGATOR ALLOCATOR 100 - Dimensions (Pump Shelf with Pump); Services Required; Equipment Supplied; Dimensions (Pump Bracket)

WD
H
Positronic IV Pump Shelf with Pump

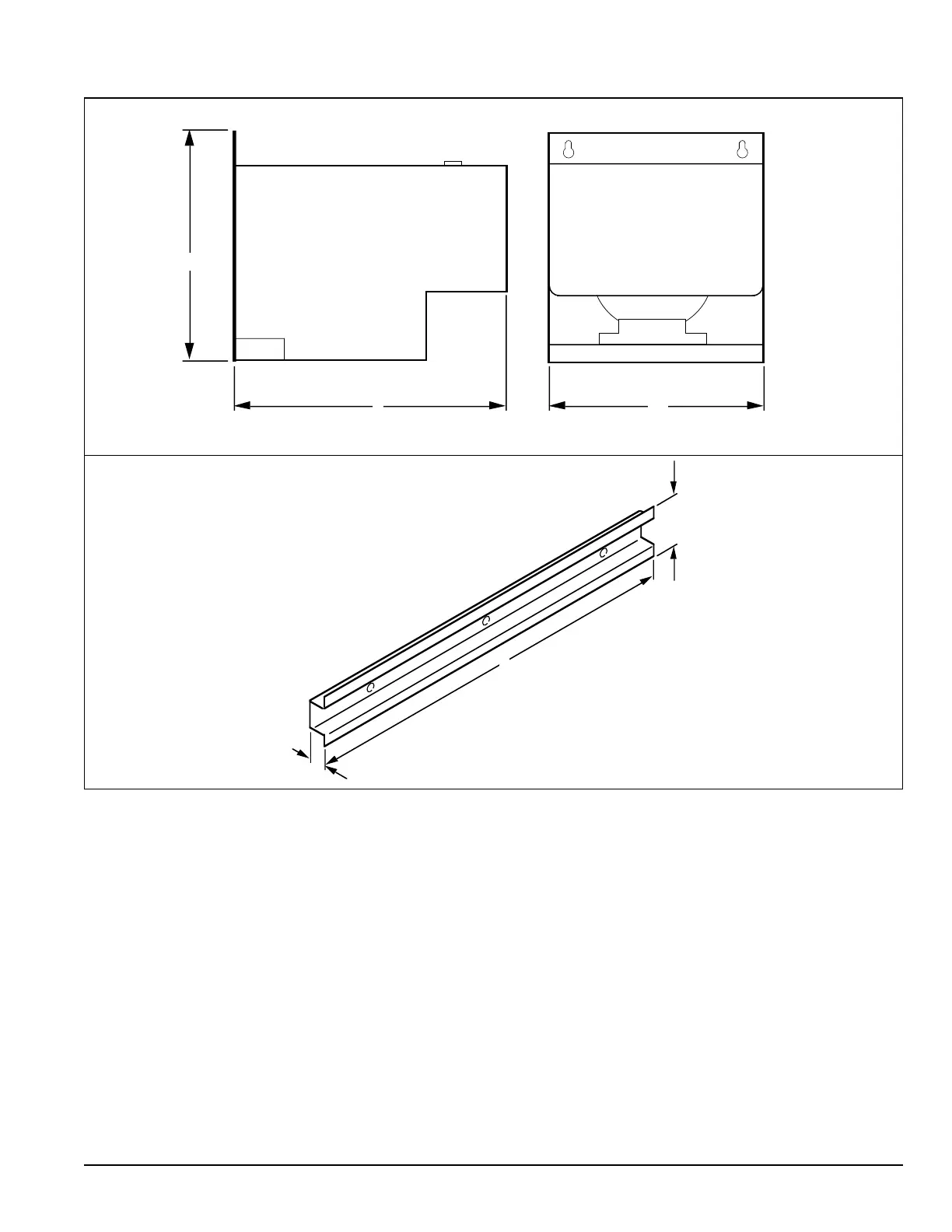

3.5 Dimensions (Pump Shelf with Pump)
• Height (H): 8-1/4" (3.21 cm)
• Width (W): 7-3/4" (19.7 cm)
• Depth (D): 9-1/2" (24.1 cm)
3.6 Services Required
Compressed air: MAX 80 psig (5.5 bars)
MIN 40 psig (2.7 bars)
AIR FLOW 3 scfm (1.4dm
3
/s)
3.7 Equipment Supplied
The pump bracket is supplied with the system. Product inlet
and outlet elbows and the air connection fitting are supplied
with the pump. Also included is the pump shelf and mount-
ing fasteners.
D
W
H
3.8 Dimensions (Pump Bracket)
• Height (H): 4-3/8" (11.1 cm)
• Width (W): 23-1/8" (58.7 cm)
• Depth (D): 3/4" (1.9 cm)
3.9 Description
This bracket is capable of supporting (3) pump shelves.
Positronic IV Pump Bracket
