5.0 OPERATION
5. Observe the product flow through the system, into the
anti-siphon valve and the use container.
6. Observe that the Time Totalizers advance when the
palm buttons are depressed and the pumps are run-
ning.
7. To "reset" the Time Totalizers, push the "reset" buttons
on the front of the Time Totalizers.
5.1 System Prime and Start-up
1. Insert the ball foot probe into the product drums.
2. Insert use containers into use container holder (insure
product hoses are inserted into neck of use containers).
3. If timer is not on; Remove plastic insulation tab from
timer and press reset button on face of timer. Display
should come on.
4. Depress each of the palm buttons, one at a time, to
buttons are depressed, air flows thru the product con-
trol valves to the product pumps. Air also is applied to
the pressure switches which close the circuit to the
Time Totalizers. The Time Totalizers have internal
batteries therefore no external power is needed.
Note: Adjust the air regulator on the dispenser to a
flow rate and pump speed you are comfortable
with.

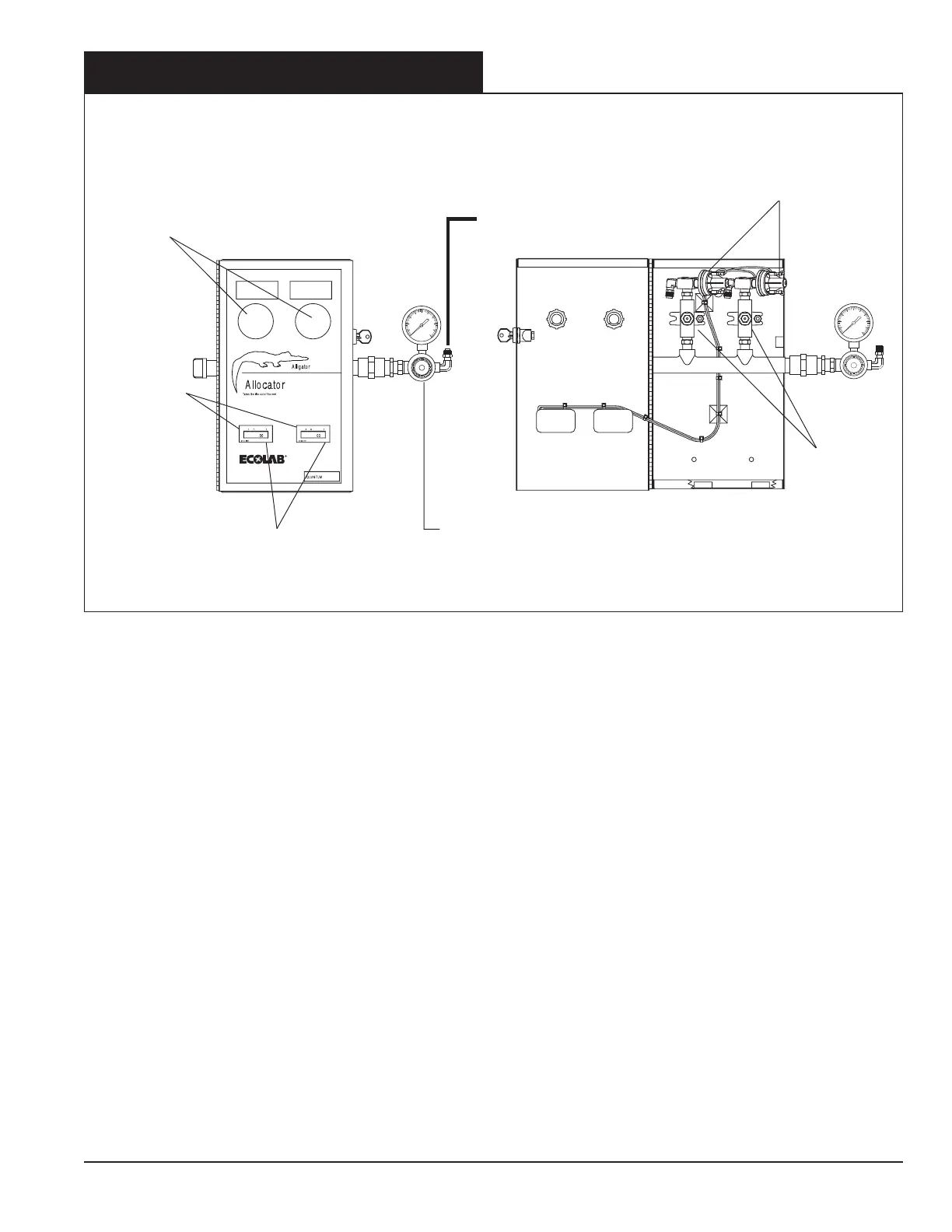

AIR
IN
PALM
BUTTONS
PRESSURE
REGULATOR
TIME
TOTALIZERS
TIME TOTALIZER
RESET BUTTONS
PRODUCT
CONTROL
VALVES
PRESSURE
SWITCHES
5
To Next Page
