7.0 REPLACEMENT PARTS
REF.
NO. PART NO. DESCRIPTION
1 8301-4001 TIME TOTALIZER
2 8602-8008 CAP 1/2" BRZ
3 9229-9064 PUSH BUTTON
4 9229-9072 PUSH BUTTON SLEEVE
5 8539-0094 PRESSURE GAUGE
6 8553-3354 ELB 1/4P-FX1/4MNPT BRS
7 8420-0294 RGLTR SRLV 1/4 AIR
8 8617-8019 NPL HEX 1/4X1/4 BRNP
9 8614-8582 BSHG 1/2X1/4 BRNP
10 8603-8031 CPLG HEX 1/2 BRNP
11 8702-9047 KEY 176
REF.
NO. PART NO.
• PART NOT SHOWN
DESCRIPTION
12 8702-0335 LOCK
13 8331-2017 LOCK NUT CND 1/2
14 8862-5272 RNG RTNR 1/2 SST EXT
15 8553-3347 ELB 1/4P-FX1/8MNPT BRS
16 8620-8006 TEE BR 1/8 BRNP
17 8305-2225 SW PRESS 4PSI 1/8MNPT NO
18 8614-8558 BSHG 1/4X1/8 BRNP
19 9229-0014 CONTROL VALVE
20 8617-8019 NPL HEX 1/4X1/4 BRNP
21 9229-2309 MANIFOLD ASM
22 8311-3654
•9204-1128
•9204-1150
•9204-1000
BSHG UNIV 1 NYL
ANTI-SIPHON VLV KIT - VITON
ANTI-SIPHON VLV KIT - EPDM
ANTI-SIPHON VLV KIT - SILICONE
2
3, 4
5
6
7
10
9 8
1
21
20
19
18
12
13, 14
15
16 17
15
16 17

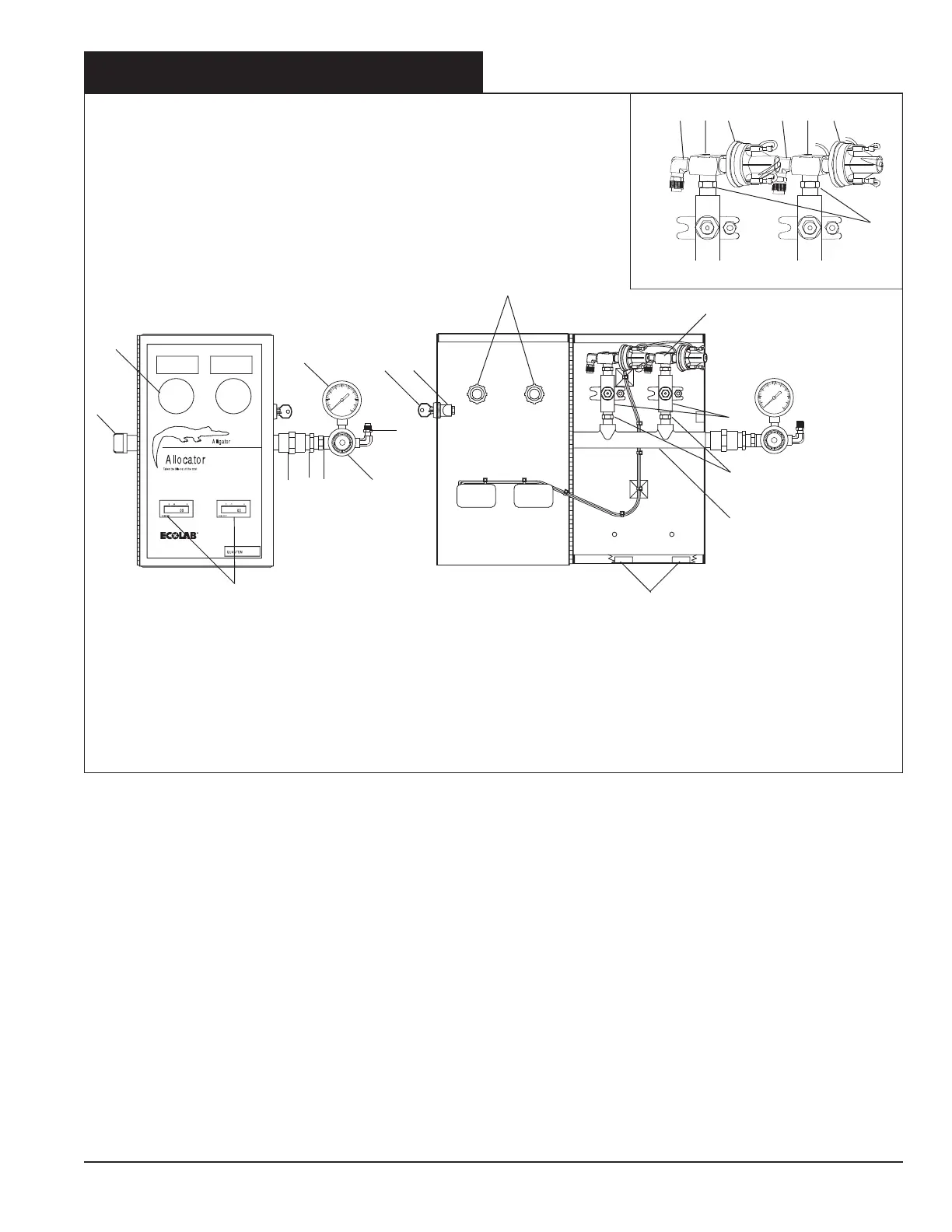

DETAIL A
SEE DETAIL A
11
22
7
