2. Mark a position on the wall (taking into account the height and lateral space
requirements), from which all components are easily accessible and simple to
operate.
The metering station should be kept free in all directions for
approx. 1 m as a service/maintenance area.
3. Hold the console in the indicated position and drill through the holes in the console.
4. Insert the supplied dowels into the holes.
5. Attach the screws to secure the console.
CAUTION!
The console must not be loaded by additional (weight) forces!

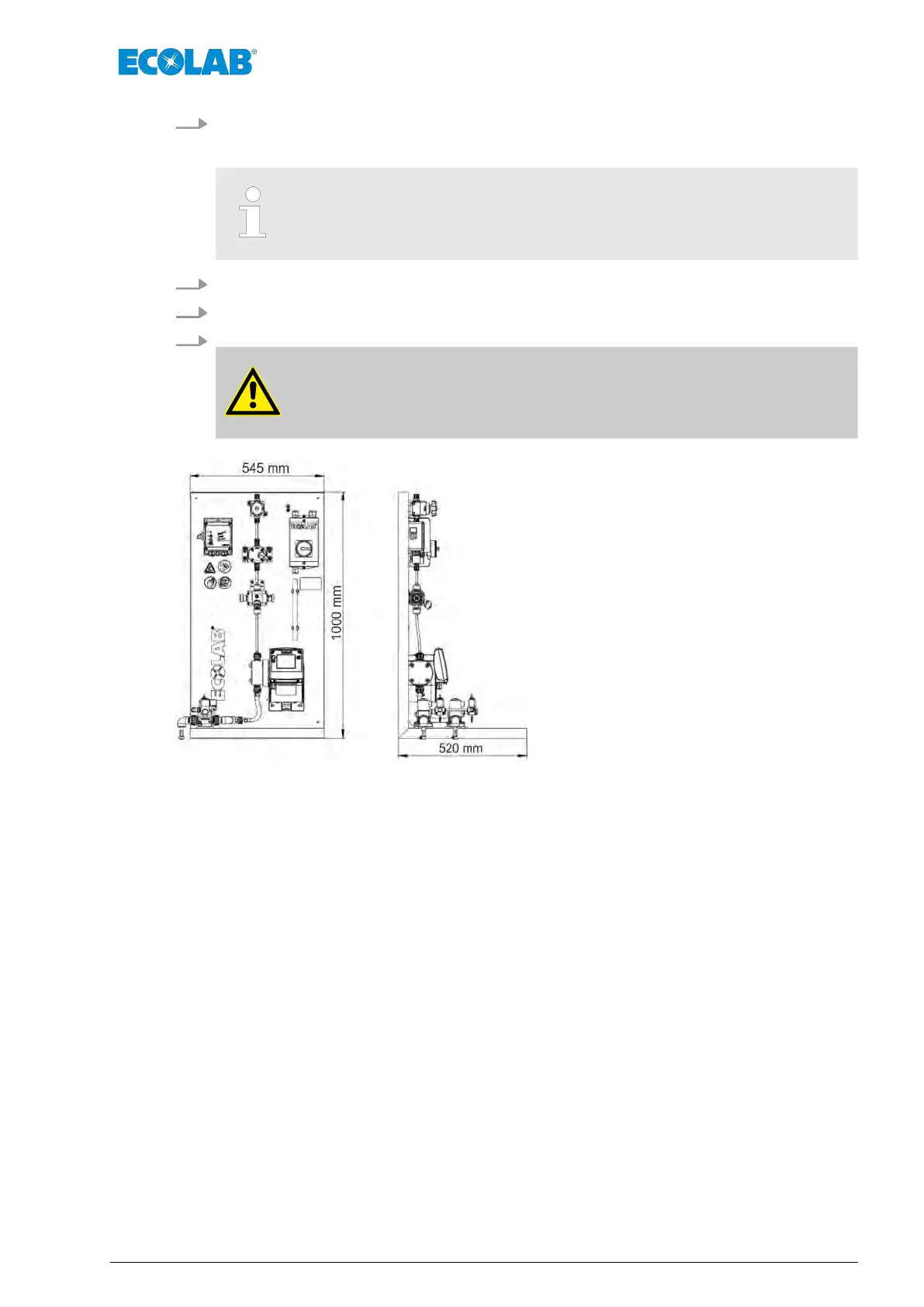

Fig. 5: Overview
4.2.2 Setup of the metering station - conditions at the installation site
The installation site of the metering station should ideally be next to the machine to which
the metered chemicals are being conveyed. Depending on the situation (central chemicals
store), the metering station can also be connected to a longer pipework system. The setup
surface for this machine/unit must be flat and inherently rigid. Select the setup location in
such a way that this machine/unit does not stand on a step, gutter
, etc and near to filler,
conveyor or any other production machinery which is to be cleaned.
Setup, assembly and installation
37 417101656 Rev. 01-10.2019
