ECS A785GM-M User Manual

12
Installing the Motherboard
Installation Procedure

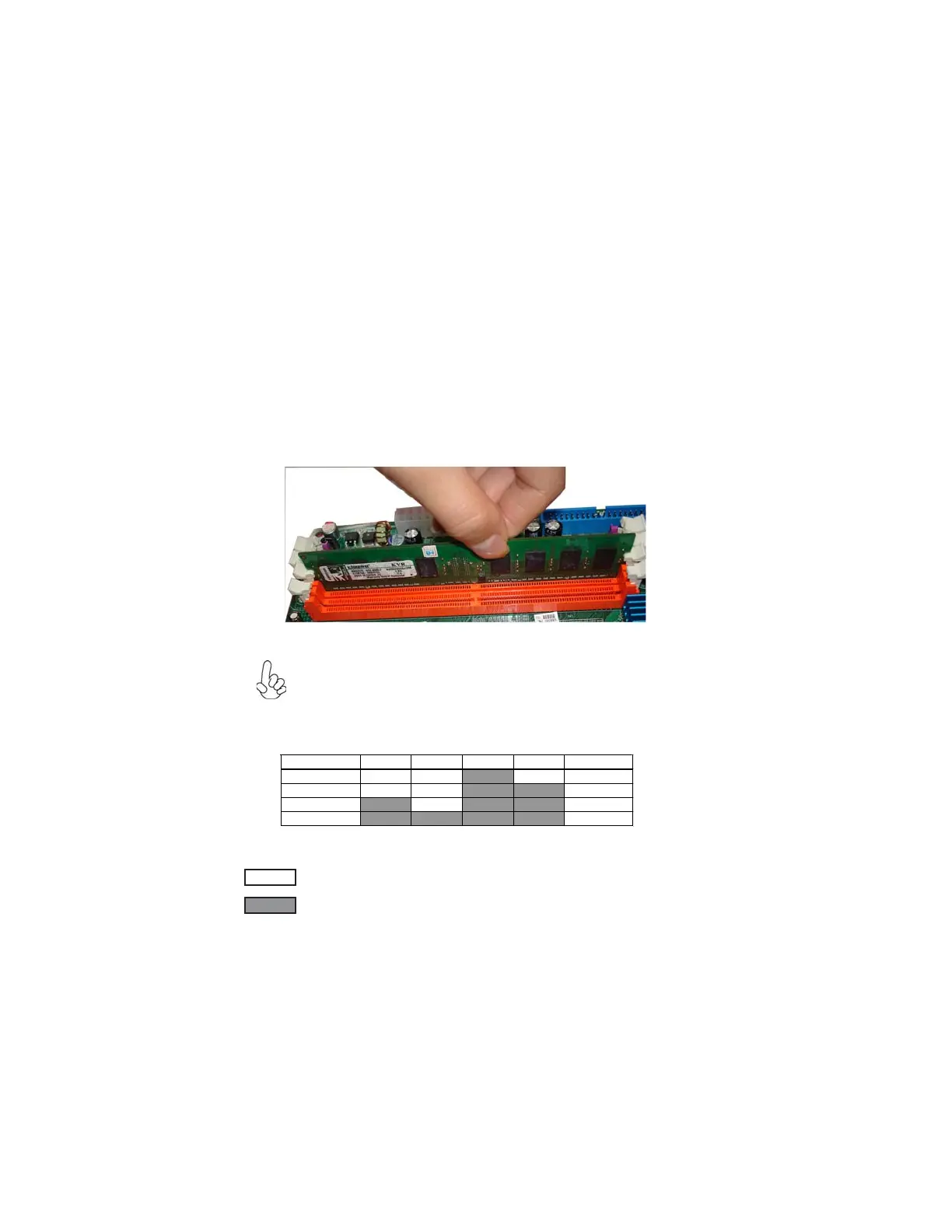

Refer to the following to install the memory modules.
1 This motherboard supports unbuffered DDR3 SDRAM only.
2 Push the latches on each side of the DIMM slot down.
3 Align the memory module with the slot. The DIMM slots are keyed with
notches and the DIMMs are keyed with cutouts so that they can only be
installed correctly.
4 Check that the cutouts on the DIMM module edge connector match the
notches in the DIMM slot.
5 Install the DIMM module into the slot and press it firmly down until it
seats correctly. The slot latches are levered upwards and latch on to
the edges of the DIMM.
6 Install any remaining DIMM modules.
For best performance and compatibility, we recommend that users
install DIMMs in the sequence of DIMM3, DIMM4, DIMM1 and
DIMM2.
Recommend configuration for best performance and compatibility
* When Unganged Mode is disabled
Number of DIMMs DIMM 1 DIMM 2 DIMM 3 DIMM 4 AM3
1
Single Channel
2
Dual Channel
3
Single Channel
4
Dual Channel
: operation with normal performance
: operation with the best performance

ECS A785GM-M Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	6
Controller interface type	AMD SB710
PS/2 ports quantity	0
eSATA ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888S
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
RAID levels	0, 1
LAN controller	RealTek RTL8111D(L)
