28
Using BIOS
Press the delete key to access the BIOS Setup Utility.
CMOS Setup Utility -- Copyright (C) 1985-2005, American Megatrends, Inc.
f
f
f
f
v02.62 (C)Copyright 1985-2008, American Mega trends, Inc.
f
: Move F10: Save ESC: Exit
+/-/: Value
Enter : Select
F9: Optimized Defaults
F1:General Help
f
f
f
Standard CMOS Setup
Advanced Setup
Advanced Chipset Setup
Integrated Peripherals
Power Management Setup
PCI/PnP Setup
PC Health Status
M.I.B. II (MB Intelligent BIOS)
Load Default Settings
Supervisor Password
User Password
Save & Exit Setup
Exit Without Saving
f
f
mnlk
Resetting the Default CMOS Values

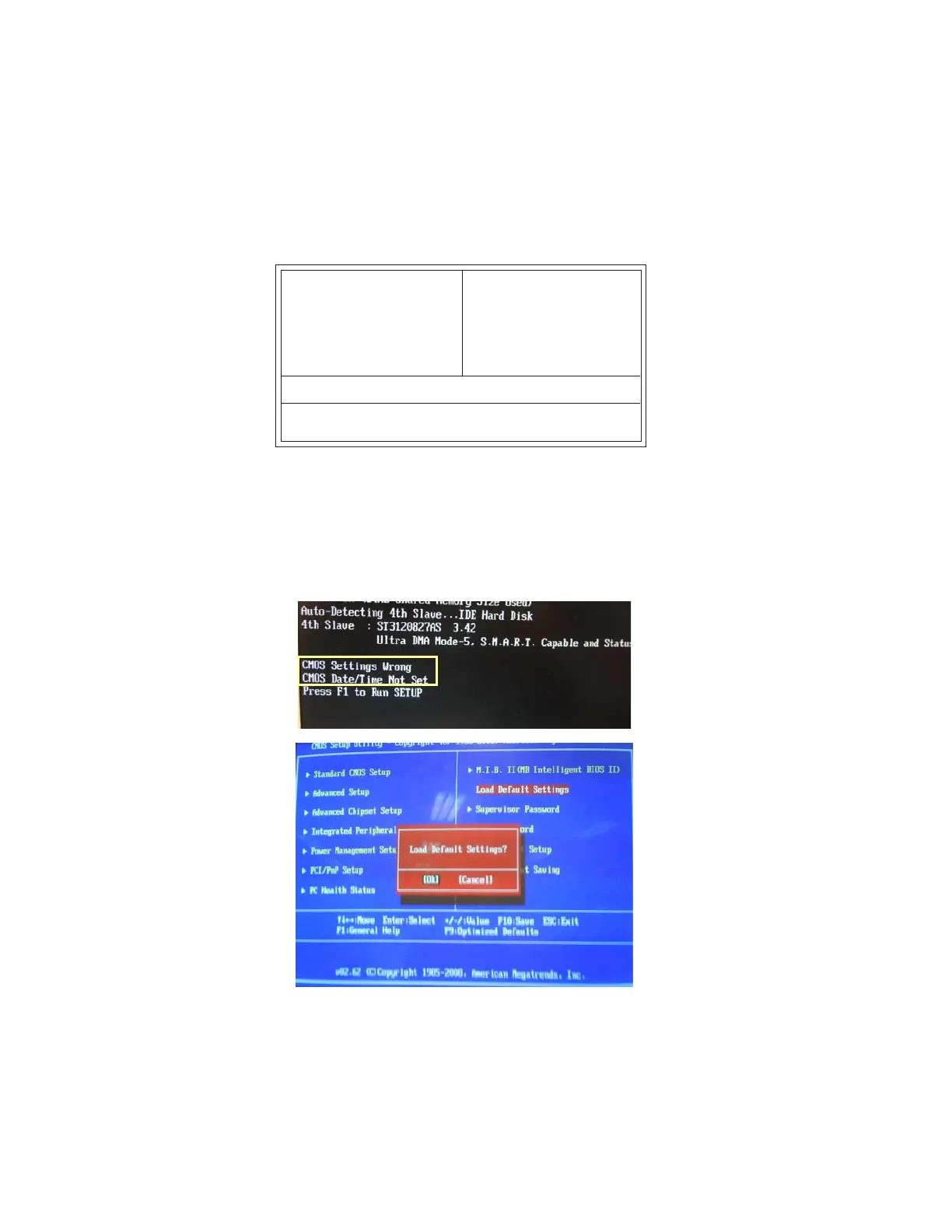

When powering on for the first time, the POST screen may show a “CMOS
Settings Wrong” message. This standard message will appear following a clear
CMOS data at factory by the manufacturer. You simply need to Load Default
Settings to reset the default CMOS values.
Note: Changes to system hardware such as different CPU, memories, etc. may also
trigger this message.
