AMD RAID Configuration
Setting Up a bootable RAID Array
This section explains how to configure a bootable AMD RAID array.
Setting Up the BIOS
Use the arrow keys to select Integrated Peripherals (see Figure 1.1), then
press Enter.
The Integrated Peripherals screen (or a screen similar to it) appears.

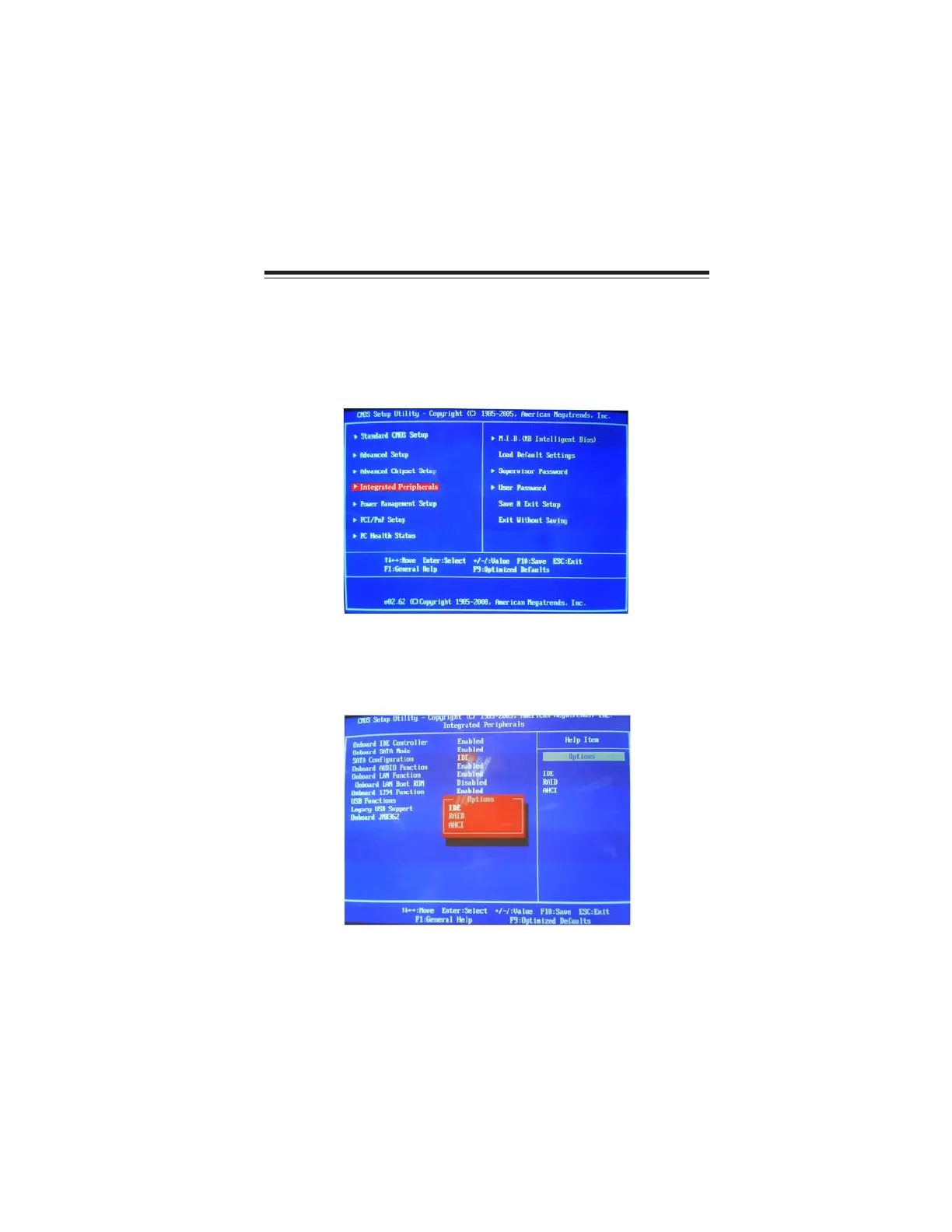

Figure 1.2 Integrated Peripherals Screen
Use the arrow keys to select the SATA Configuration (see Figure 1.2) and
globally set SATA Configuration to RAID.
Start your computer, then press Delete to enter the BIOS setup.
The BIOS CMOS Setup Utility screen appears.
Figure 1.1 BIOS CMOS Setup Utility Main Screen
1
2
3
Chapter 6
Setting Up AMD SB710 RAID Configuration

ECS A785GM-M Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	6
Controller interface type	AMD SB710
PS/2 ports quantity	0
eSATA ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888S
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
RAID levels	0, 1
LAN controller	RealTek RTL8111D(L)
