Installing the Motherboard

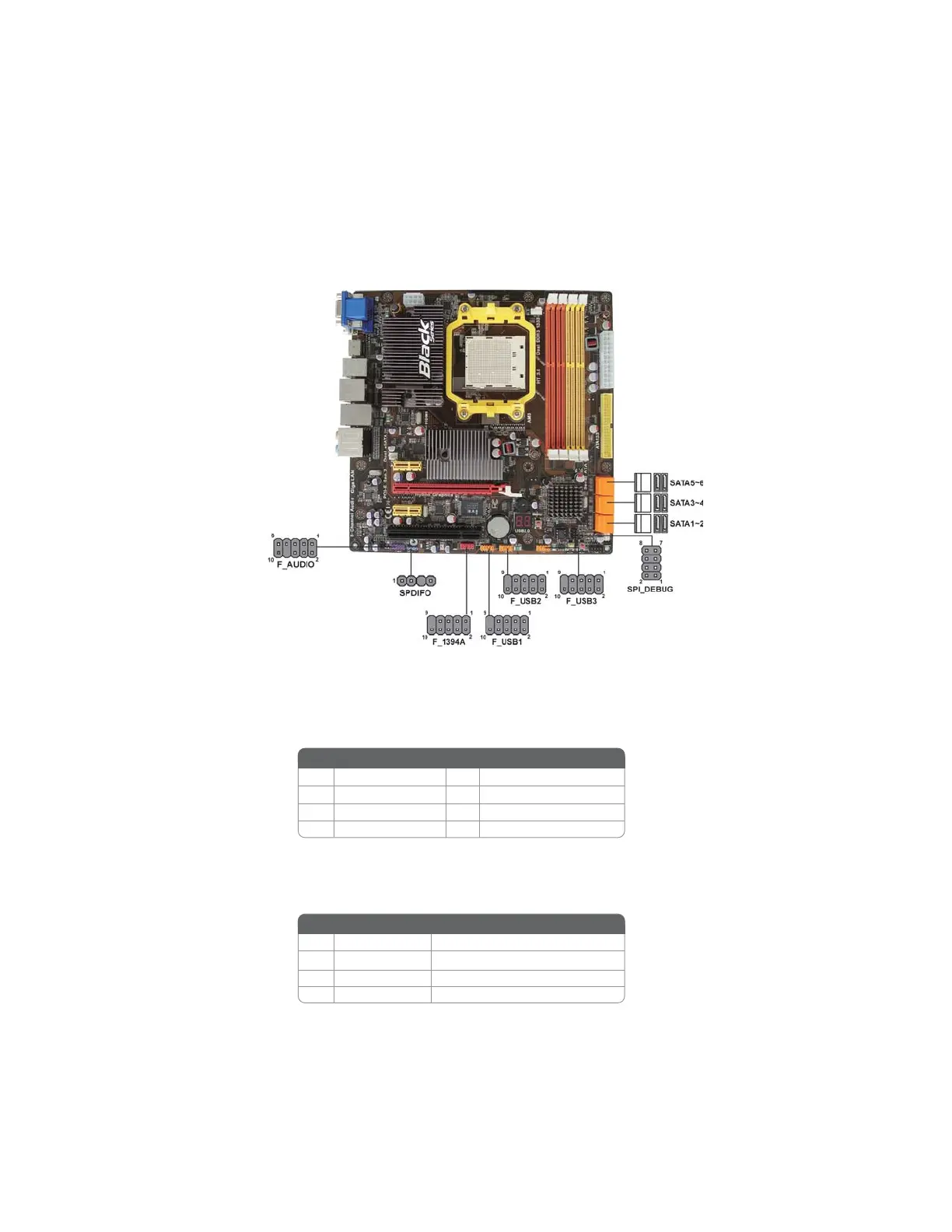

Connecting Optional Devices

Refer to the following for information on connecting the motherboard’s optional

devices:

SATA1~6: Serial ATA connectors

These connectors are used to support the new Serial ATA devices for the highest data

transfer rates (3.0 Gb/s), simpler disk drive cabling and easier PC assembly. It elimi-

nates limitations of the current Parallel ATA interface. But maintains register com-

patibility and software compatibility with Parallel ATA.

SPDIFO: SPDIF out header

This is an optional header that provides an S/PDIF (Sony/Philips Digital Interface)

output to digital multimedia device through optical fiber or coaxial connector.

2 +5VA 5V analog Power

3 Key No pin

4 GND Ground

Pin Signal Name Function

1 SPDIF SPDIF digital output

1 Ground 2 TX+

3 TX- 4 Ground

5 RX- 6 RX+

7 Ground - -

Pin Signal Name
