Installing the Motherboard

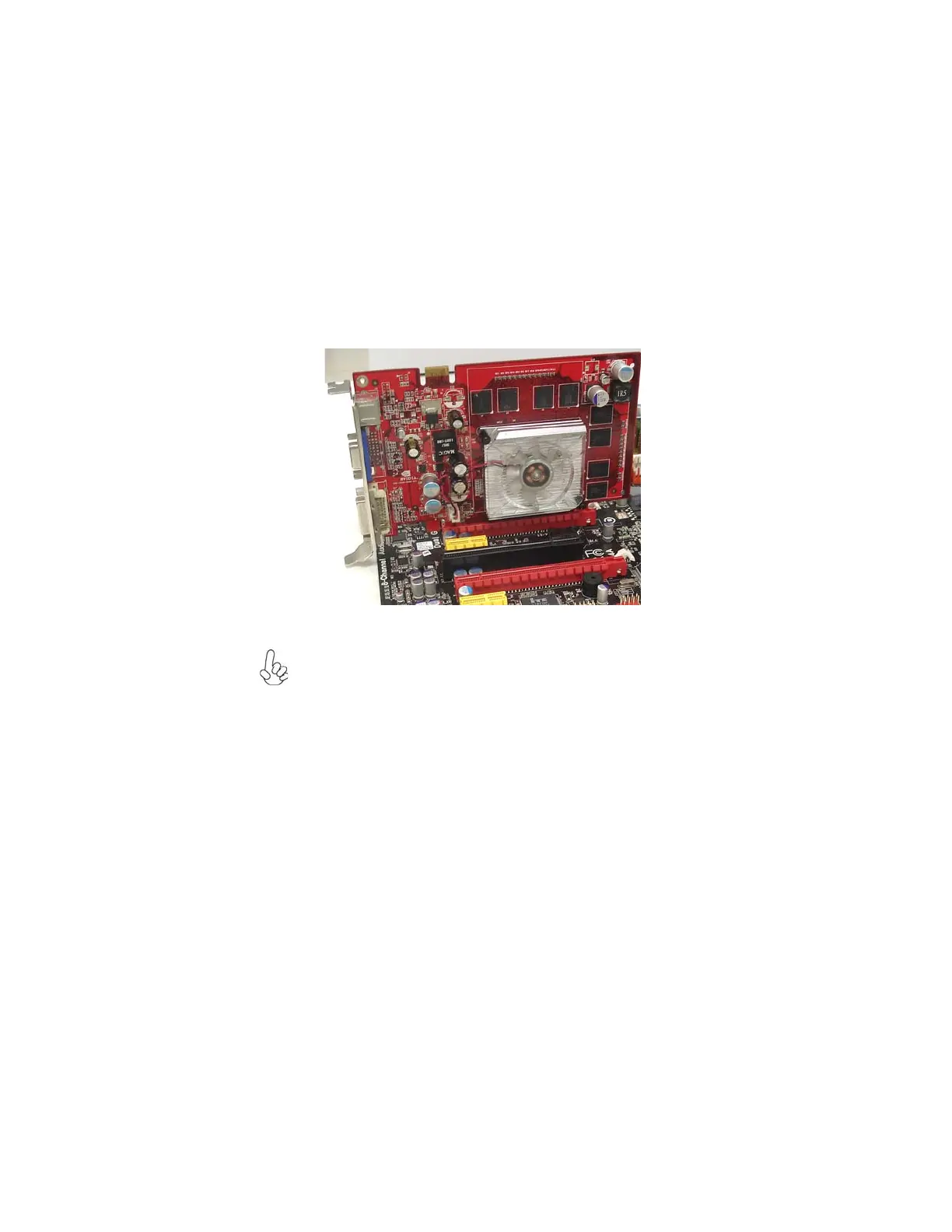

Follow these instructions to install an add-on card:

1 Remove a blanking plate from the system case corresponding to the

slot you are going to use.

2 Install the edge connector of the add-on card into the expansion slot.

Ensure that the edge connector is correctly seated in the slot.

3 Secure the metal bracket of the card to the system case with a screw.

For some add-on cards, for example graphics adapters and network

adapters, you have to install drivers and software before you can begin

using the add-on card.

Questions and Answers:

Need help?

Do you have a question about the ECS A785GM-M and is the answer not in the manual?

ECS A785GM-M Specifications

General

Number of memory slots	4
Maximum internal memory	32 GB
Processor socket	Socket AM3
Processor manufacturer	AMD
USB 2.0 connectors	3
Power fan connector	Yes
Number of COM connectors	1
Number of SATA connectors	6
Controller interface type	AMD SB710
PS/2 ports quantity	0
eSATA ports quantity	2
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Audio chip	Realtek ALC888S
Power source type	ATX
Motherboard chipset	AMD 785G
Audio output channels	7.1 channels
Motherboard form factor	micro ATX
BIOS type	AMI
RAID levels	0, 1
LAN controller	RealTek RTL8111D(L)
