17

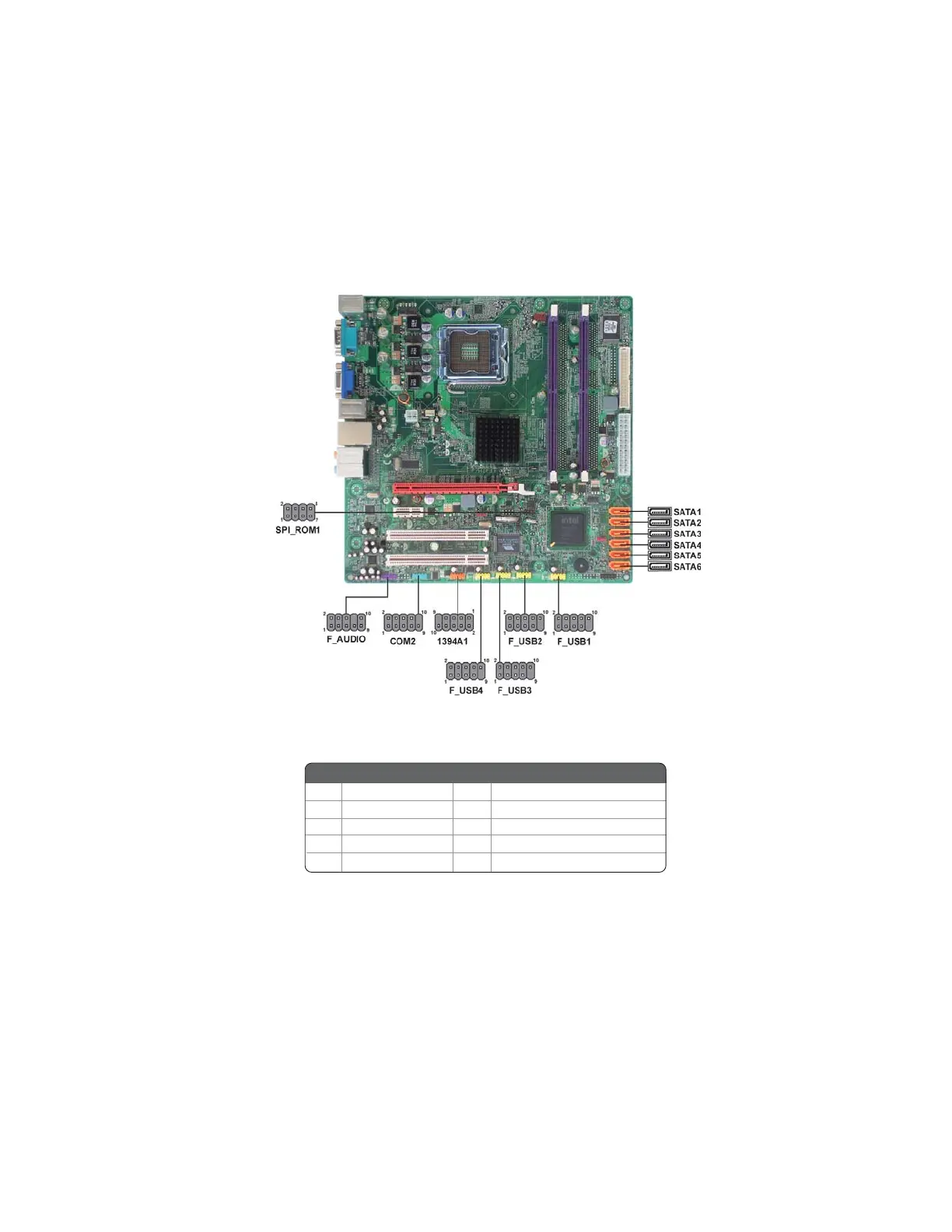

Installing the Motherboard
Connecting Optional Devices
Refer to the following for information on connecting the motherboard’s optional
devices:
F_AUDIO: Front Panel Audio header
This header allows the user to install auxiliary front-oriented microphone and line-
out ports for easier access.
1
PORT 1L
2
AUD_GND
3
PORT 1R
4
PRESENCE#
5
PORT 2R
6
SENSE1_RETURN
7
SENSE_SEND
8
KEY
Pi
n
Signal Name
Pi
n
Signal Name
9
PORT 2L
10
SENSE2_RETURN
22
24
