SATA1~4 connectors are used to support the Serial ATA 3.0Gb/s device, Simpler disk
drive cabling and easier PC assembly. It eliminates limitations of the current Paral-
lel ATA interface. But maintains register compatibility and software compatibility
with Parallel ATA.

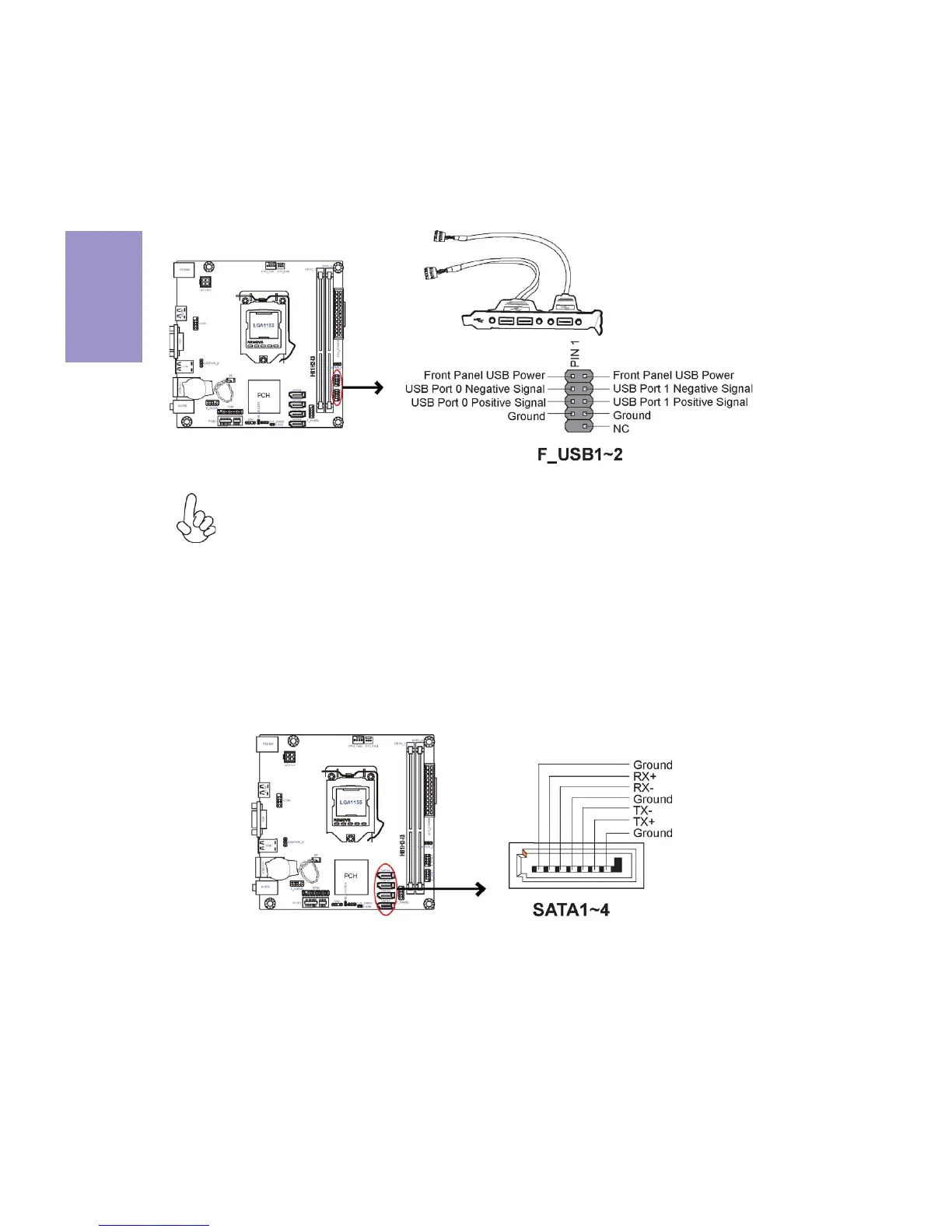

2. SATA1~4: Serial ATA connectors
The motherboard has two USB 2.0 header supporting four USB 2.0 ports. Addition-
ally, some computer cases have USB 2.0 ports at the front of the case. If you have this
kind of case, use auxiliary USB 2.0 connector to connect the front-mounted ports to
the motherboard.
1. F_USB1~2: Front Panel USB 2.0 headers
Please make sure that the USB cable has the same pin assignment as indi-
cated above. A different pin assignment may cause damage or system hang-
up.
