H61H2-I3 USER MANUAL
6

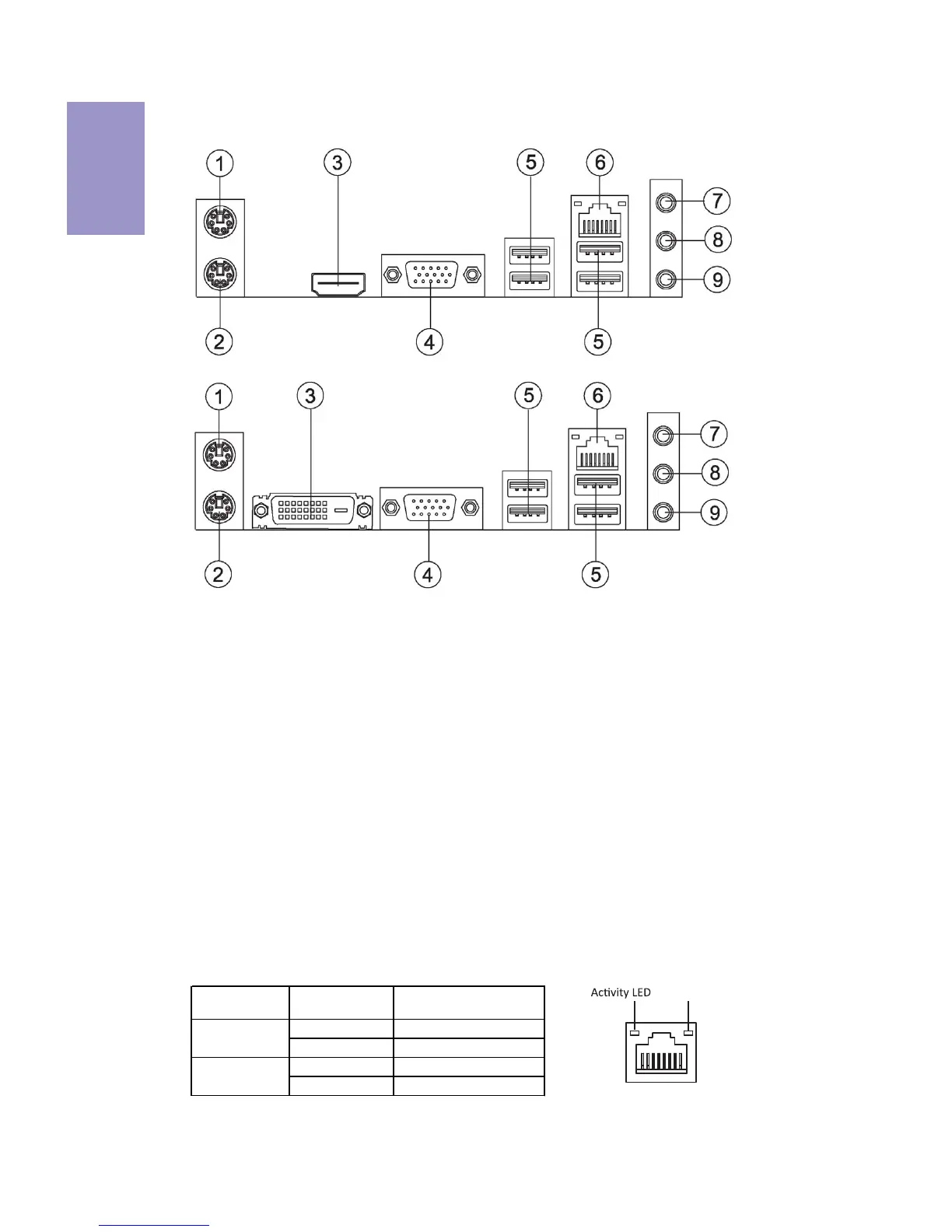

I/O Ports
1. PS/2 Mouse (green)
Use the upper PS/2 port to connect a PS/2 mouse.
2. PS/2 Keyboard (purple)
Use the lower PS/2 port to connect a PS/2 keyboard.
3. HDMI/DVI Port (Optional)
Y
ou can connect the display device to the HDMI/DVI port.
4. VGA Port
You can connect the display device to the VGA port.
5. USB 2.0 Ports
Use the USB 2.0 ports to connect USB 2.0 devices.
6. LAN Port
Connect an RJ-45 jack to the LAN port to connect your computer to the Network.
LAN LED Status Description
OFF No da ta
Orange blinking Active
OFF No link
Green Link
Activity LED
Link LED
Link LED
LAN Port
