Chapter 2
20
H61H2-I3 USER MANUAL
The front panel audio header allows the user to install auxiliary front-oriented mi-
crophone and line-out ports for easier access. This header supports HD audio by
default. If you want connect an AC
’ 97 front panel audio to HD onboard headers,
please set as below picture.

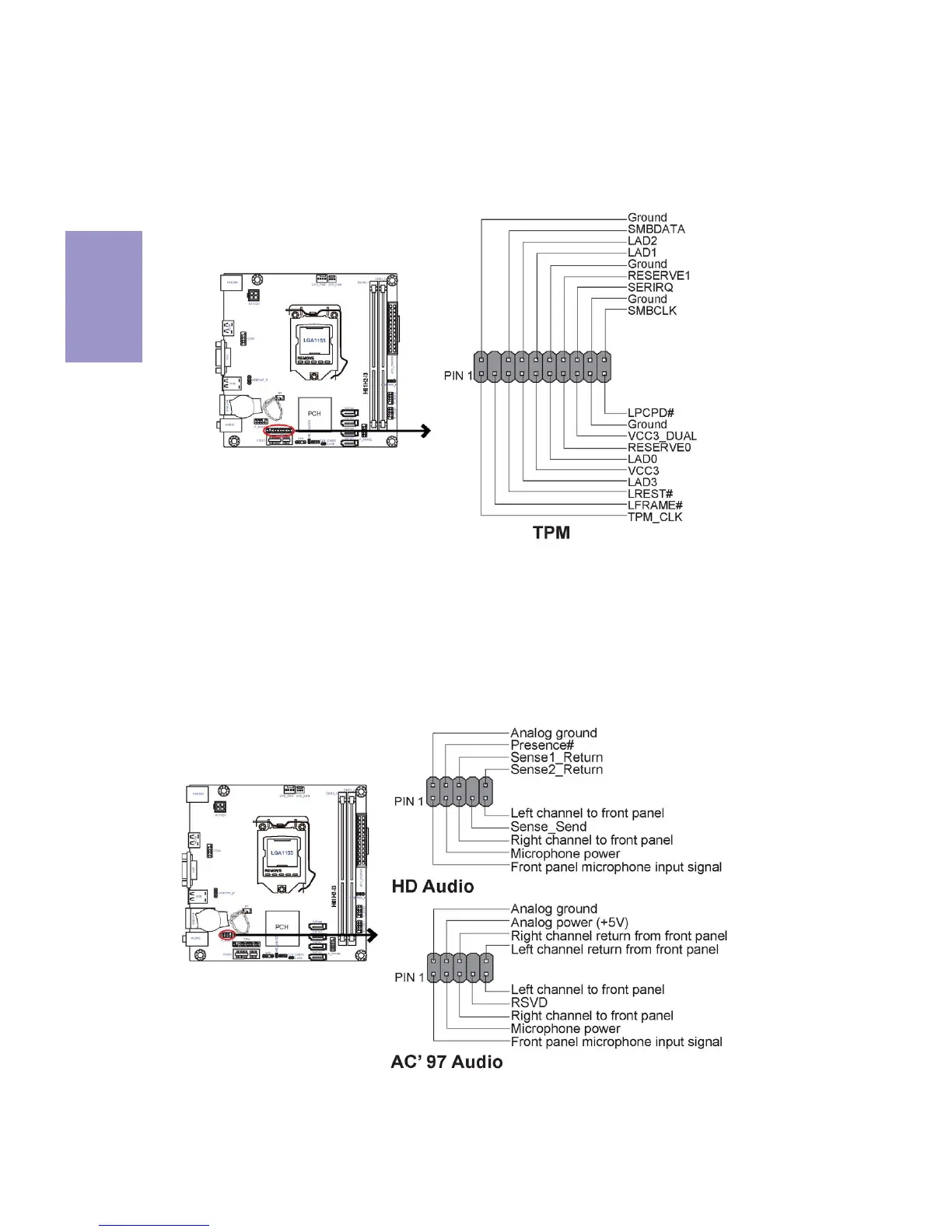

6. F_AUDIO: Front Panel Audio Header
Trusted platform module (TPM) is a published specification detailing a micro con-
troller that can store secured information, and implementations of that specifica-
tion.
5. TPM: Trusted Platform Module header
To Next Page
