DIGITAL ECU TUNER 3 – User Manual

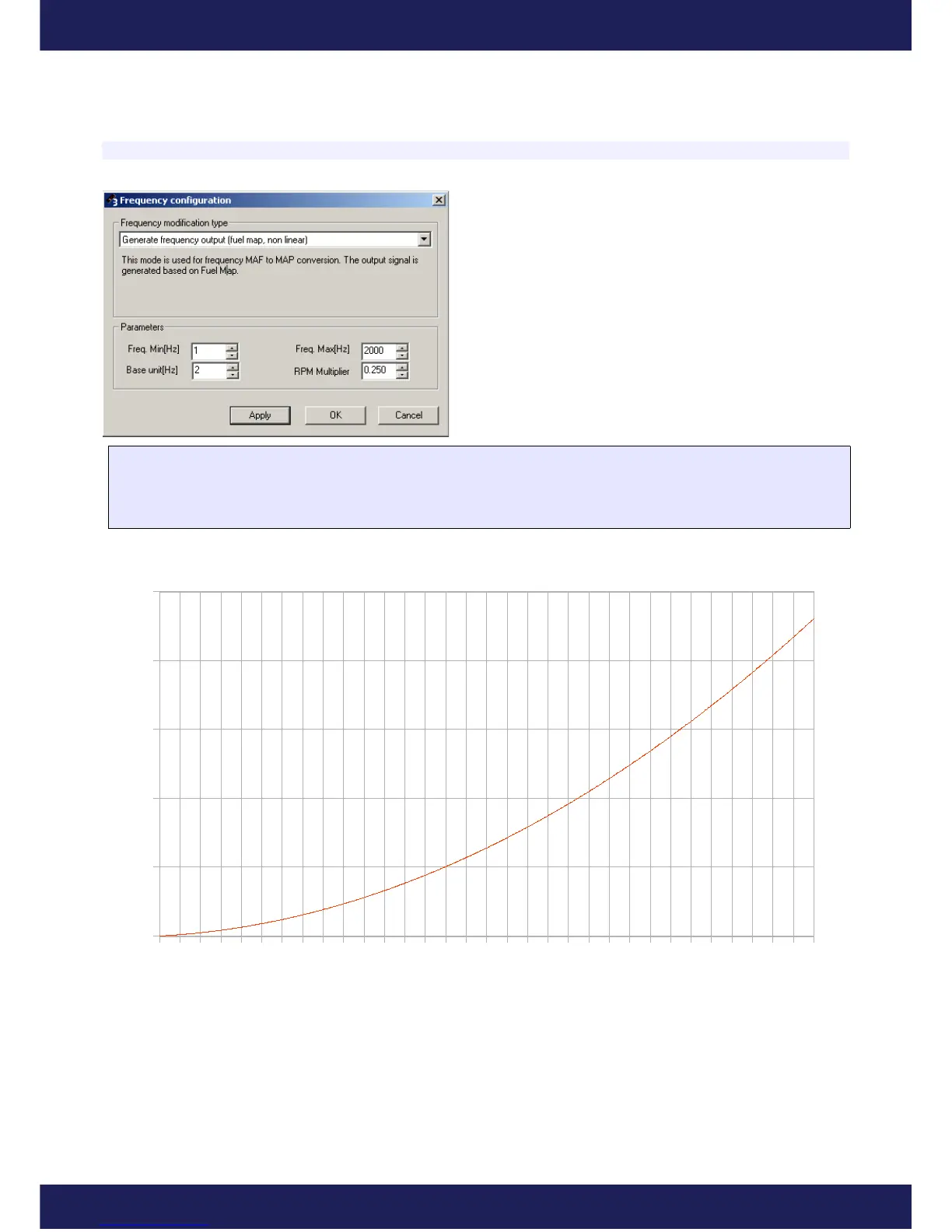

2. Generating of the frequency signal using the Fuel Table.
In the frequency MAF sensor to analog MAP sensor
conversion, choose the frequency generating mode. The
output frequency is generated based on the fuel table
values. Frequency of the generated signal is calculated in
the non linear way. For this mode, input signal from the
Frequency In input is ignored.
FreqOut = F(MapValue)
If (FreqOut < FreqMin) FreqOut = FreqMin
If (FreqOut > FreqMax) FreqOut = FreqMax
The chart below presents the dependency between values on the table and the output frequency.
Page 34
www.ecumaster.com
-128
-120
-112
-104
-96
-88
-80
-72
-64
-56
-48
-40
-32
-24
-16
-8
0
8
16
24
32
40
48
56
64
72
80
88
96
104
112
120
128
0
500
1000
1500
2000
2500
