3. Connect one end of the cable to the LC port on the switch and the other end to
the LC port on the other device. Since LC connectors are keyed, the cable can
be attached in only one orientation.

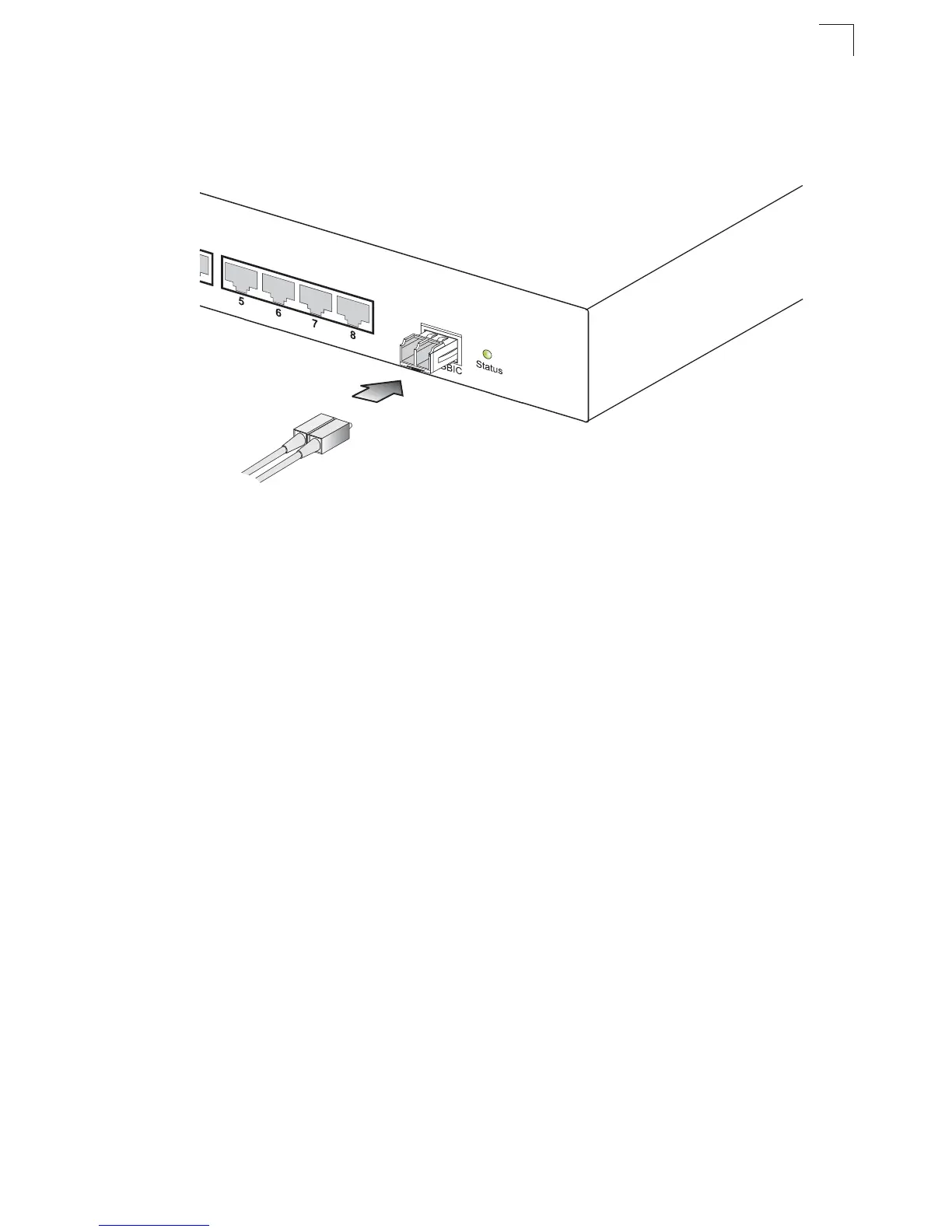

Figure 4-3 Making Connections to SFP Transceivers
4. As a connection is made, check the Link LED on the switch corresponding to
the port to be sure that the connection is valid.
The 1000BASE-SX, 1000BASE-LX and 1000BASE-LH fiber optic ports operate at
1 Gbps full duplex. The maximum length for fiber optic cable operating at Gigabit
speed will depend on the fiber type as listed under “1000 Mbps Gigabit Ethernet
Collision Domain” on page 4-6.
