Parameter description︰This position is the maximum working limit. If
pusher position value is bigger than bar end
setting that bar feeder will offer a bar end signal to
notice lathe to prepare loading new bar material
Setting Mode for fixed lathe︰In the manual mode let pusher into lathe
spindle until 5~10mm before lathe chuck .
Then confirm the value of monitor to input it
to be bar end position.

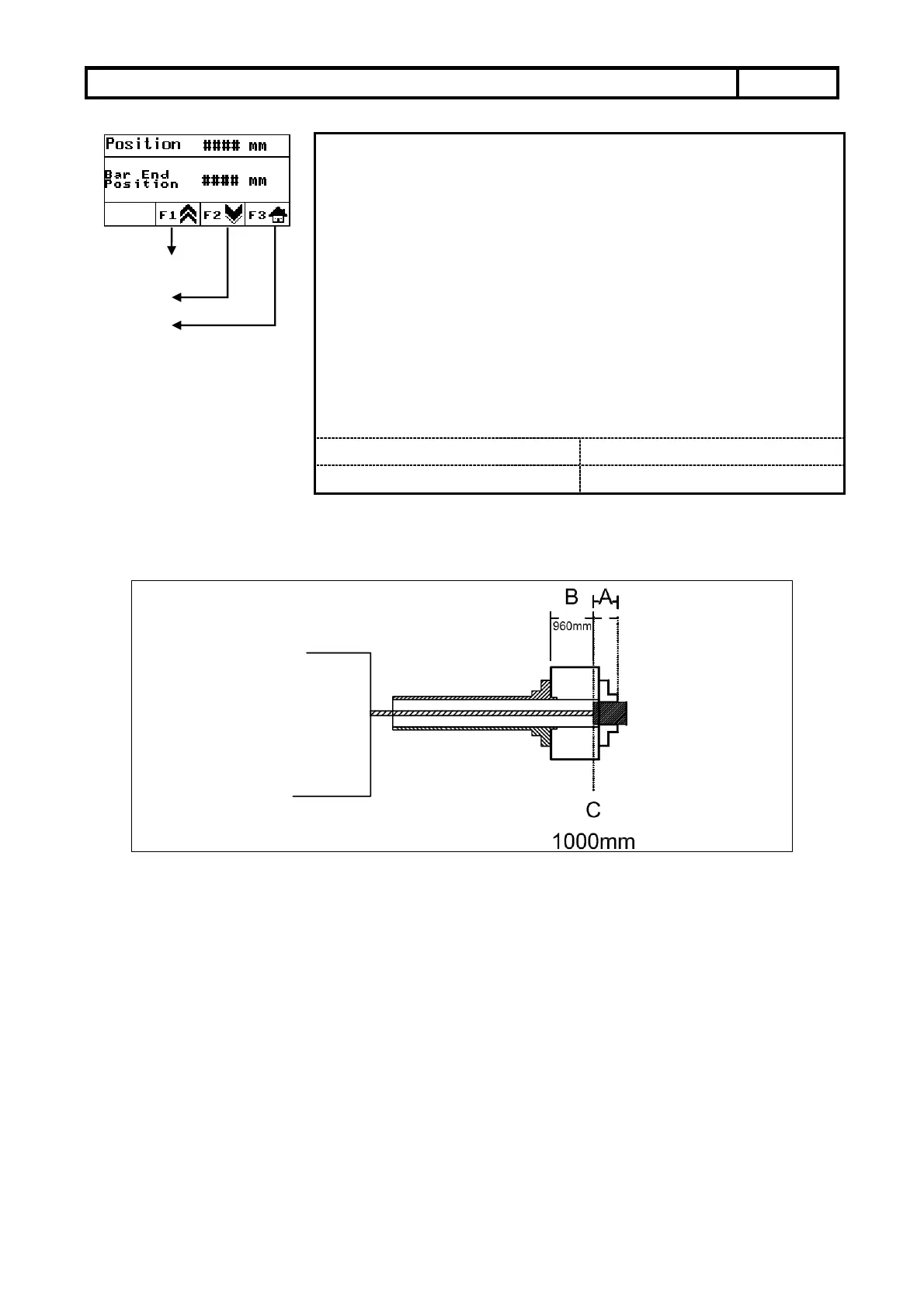

Ex︰ Reference figure 3, the distance of A is about 30
mm , C is the parameter of “Bar End Position”. If
the length of product is 40 mm, the area of bar
end range is 960 mm to1000 mm.
Previous page
Next page
Home page
1.2M Generally value：
Setting range ：
0~1700
1.5M Generally value：
Setting value ：
(Figure 3)
