Parameter description：Chuck facing position is the distance between
cutters facing detection to cutter facing position.
We cannot know if the new bar material has been
pushed to chuck facing position until loading a
new bar material.
Setting method： To measure the distance between chuck facing
detection position and cutter position after center
adjustment.

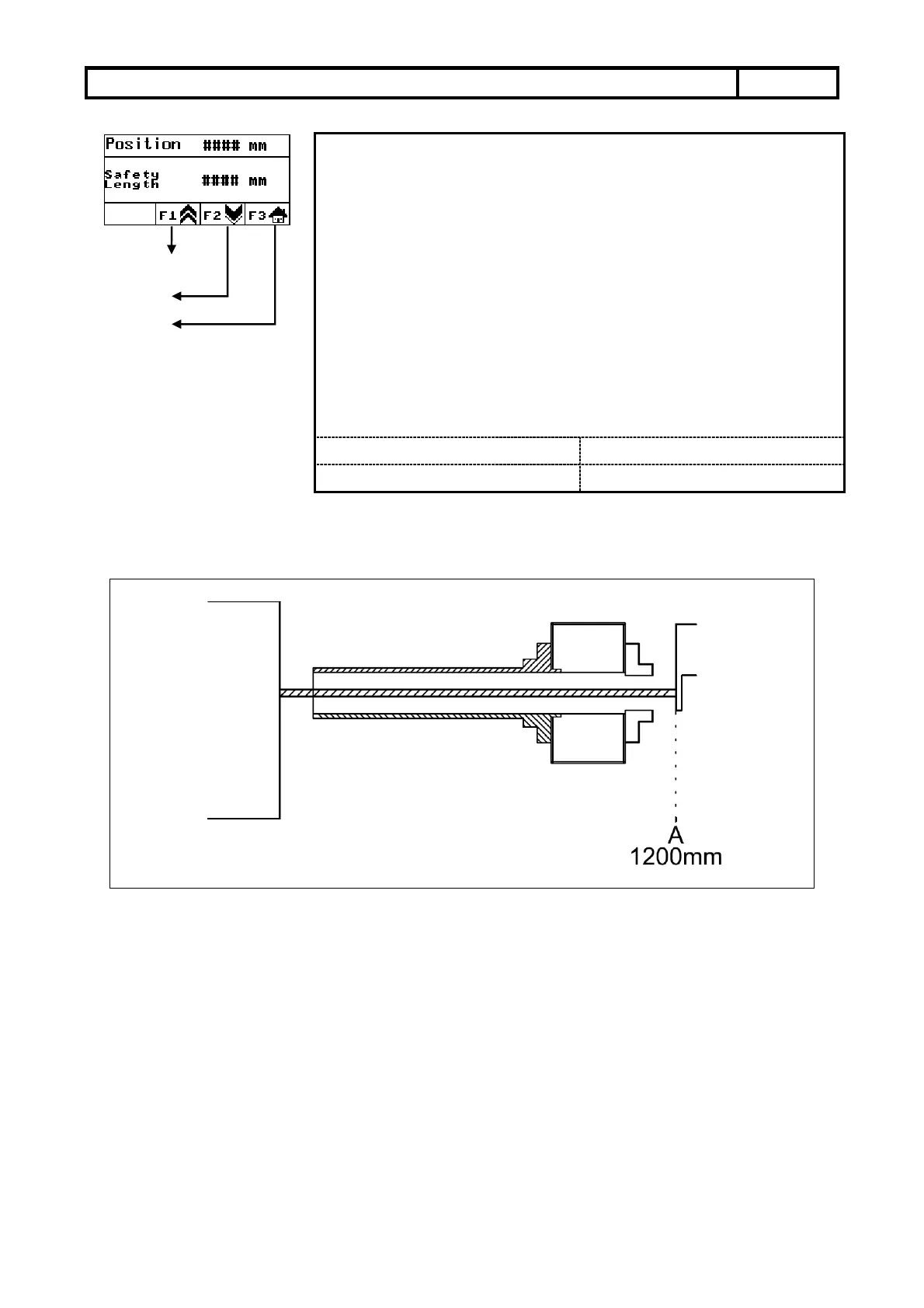

Ex︰ Reference figure 4,push the bar pusher to the
turret(position A),if the value display on Man
Machine is 1200mm, so that 1700mm is the value
of “Facing position”.
