EDGE30 / EDGE2440 / EDGE40 / EDGE2460 / EDGE60 / EDGE3860
Installation and Operating Manual
Original Instruction Manual 12 Rev 2.1 July 12, 2016
Installation Instructions – End Plugs
1. All EDGE ovens have four (4) end plug assemblies. Each oven contains two (2) top
and two (2) bottom end plugs. The top end plugs can be identified by the baffle
mounting holes located on either end.
2. Install the bottom end plugs first by fitting them into the openings in the sides of the
bake chamber. The non-insulated part of the baffle is oriented downward on the
bottom end plugs. Tighten the thumbscrews by hand (do not use pliers to tighten).

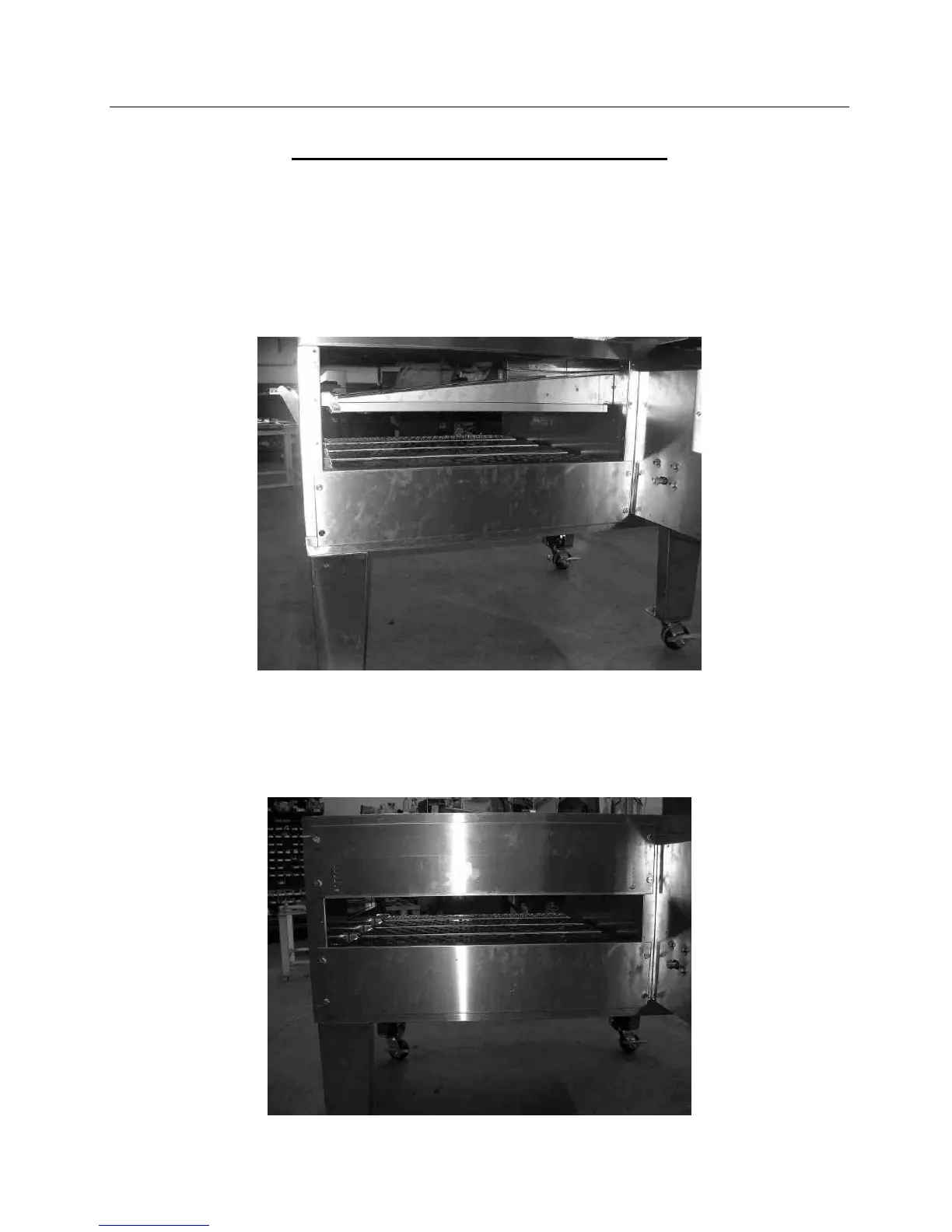

(Figure 10)
Figure 10
3. Install the top end plugs as in step 2 above except the non-insulated part of the baffle
is oriented upward. Tighten the thumbscrews by hand only (do not use pliers to
tighten). (Figure 11)
Figure 11
To Next Page
