EDGE30 / EDGE2440 / EDGE40 / EDGE2460 / EDGE60 / EDGE3860
Installation and Operating Manual
Original Instruction Manual 10 Rev 2.1 July 12, 2016
Installation Instructions – Finger Assemblies

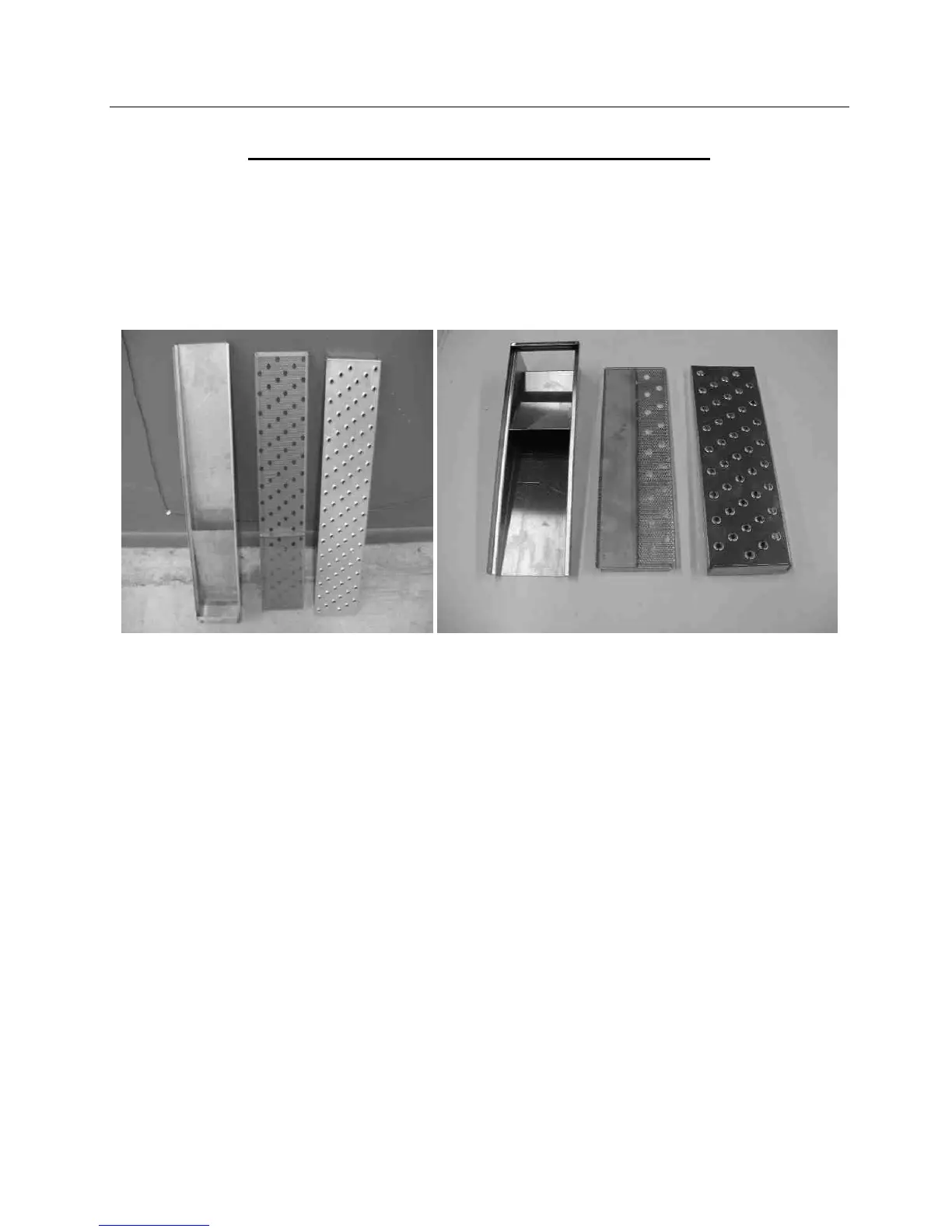

1. All EDGE ovens are shipped with a total of eight (8) finger assemblies per oven.
Each finger assembly consists of three (3) parts:
A. Housing
B. Inner Culminating Panel (multiple options)
C. Outer Cover
Figure 8
2. Your finger assemblies have been shipped from the factory with a set pattern based
on the type of product to be baked. In most cases, the only difference will be the
inner culminating panel. Refer to the finger location decal located on the front of your
oven to determine which finger assembly to place in each finger position of your
oven.
3. Working from the control side of the oven, set the first pair of upper and lower finger
assemblies into place by sliding them into the oven with the narrow end slightly raised
(to avoid the front finger holders). Align the wider (open) end of the finger over the
finger opening in the plenum wall, and lower the narrow end into the front finger
holder. (Figure 9)
B
C
A
A
B
C
